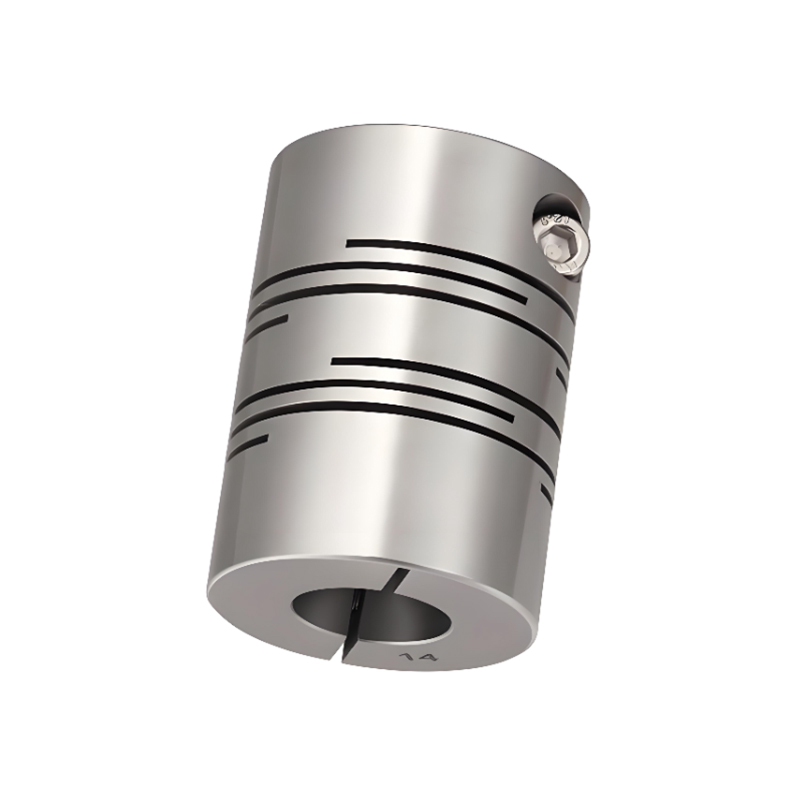

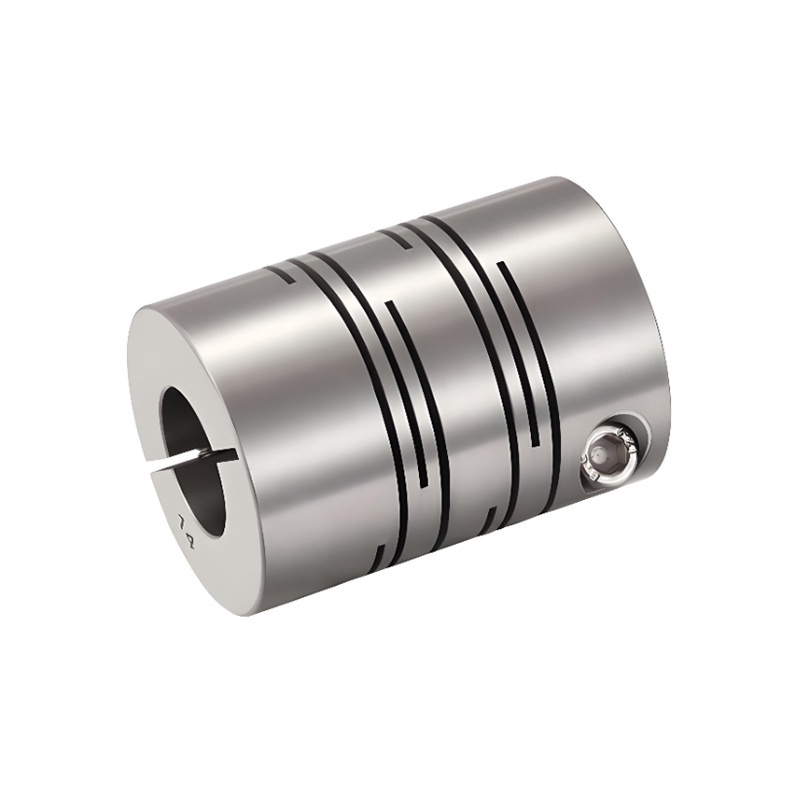

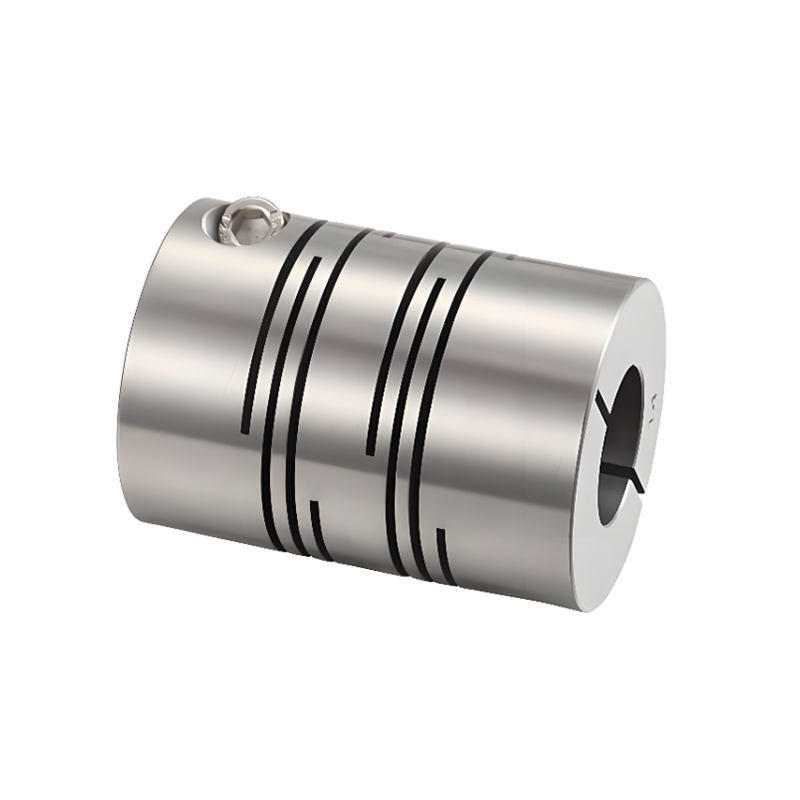

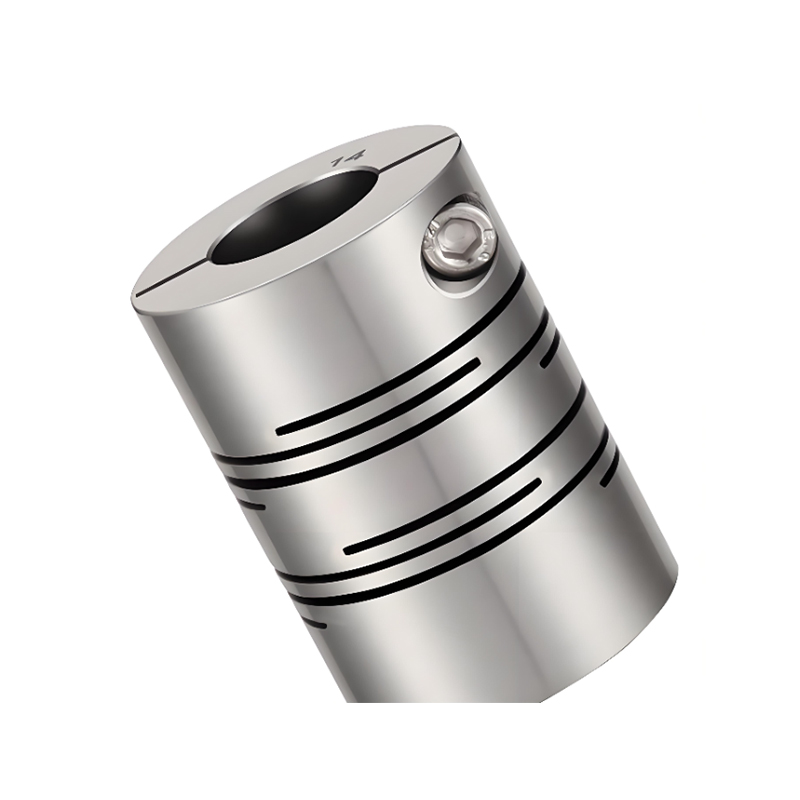

RSK-CPPCG High-Strength Stainless Stell Parallel Line Shaft Coupling Clamp type

Home / Products / Flexible Couplings / Beam Couplings / RSK-CPPCG High-Strength Stainless Stell Parallel Line Shaft Coupling Clamp type
  • Specification
  • Describe
Specification

>Integrated structure,with 304 Stainless steel

>Colloid can absorb vibration,parallel, angular misalignments and shaft end-play

>Zero backlash,Suitable for forward reverse

>For encoder / step motor

>Clamp type

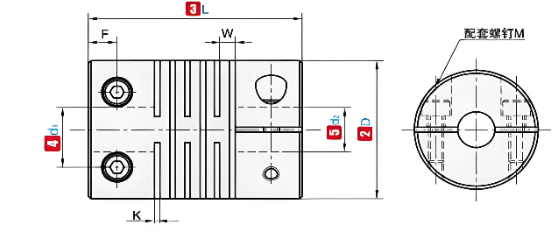

Code name

D

L

   Standard Inner Diameter(mm)

K

W

F

M

Torque tightening(N.m)

RSK-CPPCG













16

17.4

3  4  5  6

0.55

1.18

3.0

M2.5

0.8

19

20

3  4  5  6  6.35  7  8

0.55

1.18

3.4

M2.5

0.8

24

25

   4  5  6  6.35  7  8  9         10  11

0.55

1.49

3.78

M3

1.2

29

30

      5  6  6.35  7  8  9  9.525  10  11  12  12.7

0.55

1.81

4.5

M3

1.2

34

35

                     8  9  9.525  10  11  12  12.7  14  15  16

0.8

2.09

5.1

M3

1.2

39

40

                     8  9  9.525  10  11  12  12.7  14  15  16  18  19

0.8

2.34

7.0

M4

2.5

44

45

                     8  9  9.525  10  11  12  12.7  14  15  16  18  19  20

0.8

2.54

7.75

M4

2.5

Note: The inner holes at both ends of the coupling can be freely combined with the minimum and maximum inner diameters. The inner diameter sizes marked in the table are for reference only. The hole diameter required by the customer is also for reference only. For the hole diameter required by the customer, please contact us.

Code name

D

L

Rating torque(N.m)

   Allow bias(mm)

Allow tilt(∠°)

Allow axial deviation(mm)

Allow RPM

Static torsional stiffness(N.m/rad)

        Moment of inertia(N.m)

Weight(g)



     RSK-CPPCG













16

17.4

2

0.05

0.5

±0.10

8000

200

2.8x10-5

21

19

20

4

0.05

0.5

±0.10

8000

270

6.2x10-5

33

24

25

6

0.05

0.5

±0.10

6200

790

2.0x10-5

66

29

30

8

0.05

0.5

±0.10

5000

1400

5.2x10-5

120

34

35

12

0.05

0.5

±0.10

4300

2200

1.1x10-4

183

39

40

15

0.05

0.5

±0.10

4000

4100

2.3x10-4

246

44

45

23

0.05

0.5

±0.10

3600

5100

4.3x10-4

358

 Note: The above inertial torque and technical parameters are measured by the standard of maximum aperture. The maximum rated torque value is related to the durability of the coupling itself. The larger the outer diameter, the greater the force, and the smaller the outer diameter, the higher the allowable speed.
