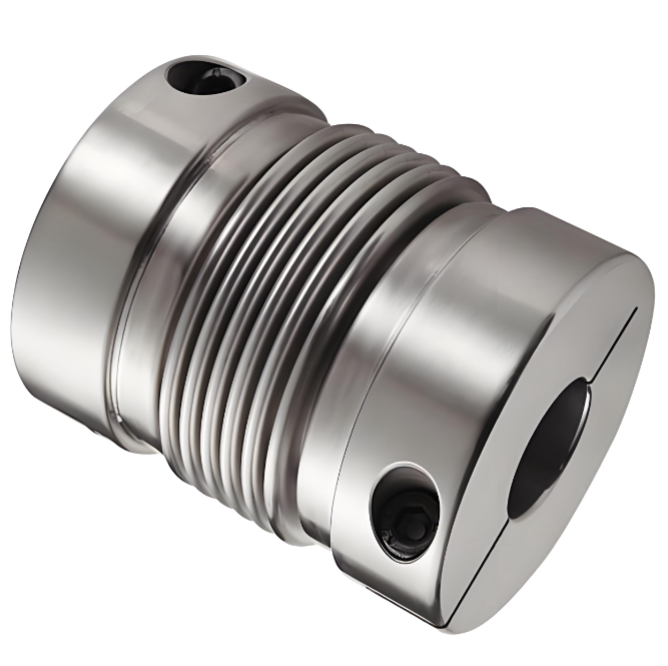

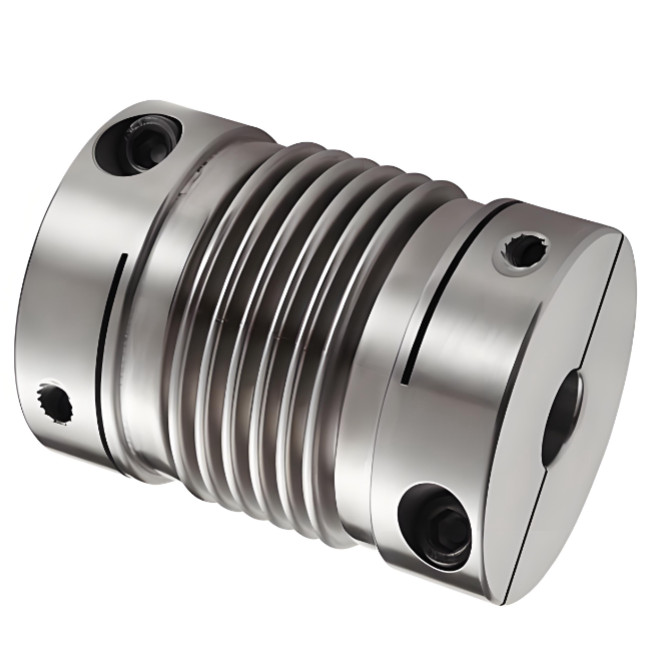

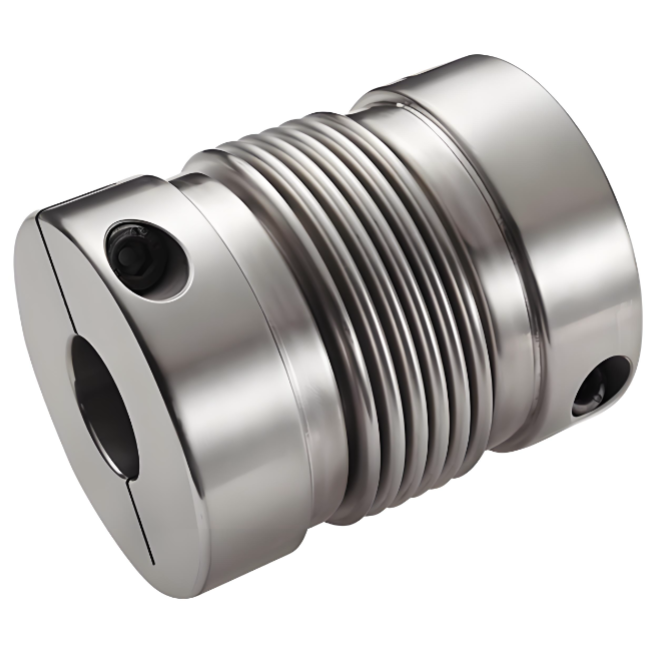

RSK-CPRCG Strong Torsional Rigidity Stainless Steel Bellows Couplings Clamping Type

Home / Products / Flexible Couplings / Bellows Couplings / RSK-CPRCG Strong Torsional Rigidity Stainless Steel Bellows Couplings Clamping Type
  • Specification
  • Describe
Specification

>The whole is made of stainless steel,with excellent corrosion resistance

>Laser welding between bellows and shaft sleeve,zero slewing clearance,suitable for forward and reverse

>The bellows structure compensates radial,angular and axial deviations more effectively

>Clamping screw tightening method

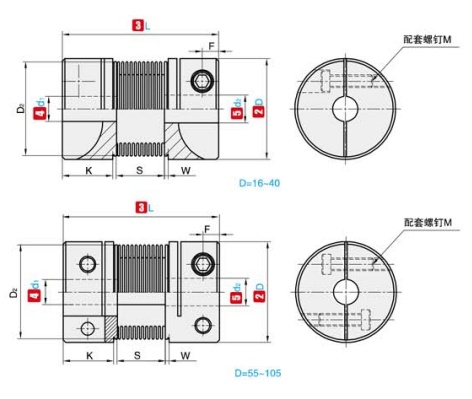

①NO. ②D ③L ④d₁⑤d₂
(Optional scope)
K W S D₂ F M Fastening screw torque (N·m)
RSK-CPRCG 16 27 4 5 6 6.35 7 8 7.5 2 8 13.5 3 M2.5 0.8
20 32 5 6 6.35 7 8 9 9.525 10 7.2 2.8 12 18 3.5 M3 1.2
25 37 6 6.35 7 8 9 9.525 10 11 12 9.5 3 12 20.2 4.5 M3 1.2
32 42 8 9 9.525 10 11 12 12.7 14 15 8 4 18 27.2 4.5 M4 2.5
40 55 8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 11.5 6 20 34.5 5 M5 5
55 72 10 11 12 12.7 14 15 16 17 18 19 20 22 24 25 16.5 6 27 51.9 10 M6 8
65 81 10 11 12 12.7 14 15 16 17 18 19 20 22 24 25 28 30 32 35 38 19.5 7 28 60.5 10.5 M6 8

①NO. ②D ③L Rated torque Permitted eccentricity Permissible angle deviation Permissible axial deviation Permissible rotational speed Static reversal stiffness Moment of inertia Weight
(N·m) (mm) (°) (mm) (rpm) (N·m/rad) (kg·m²) (g)
RSK-CPRCG 16 27 1.2 0.1 1.5 0.3 9400 150 8.0×10⁻⁷ 23
-1
20 32 2.2 0.15 2 0.3 7600 220 2.2×10⁻⁶ 36
-1
25 37 3 0.15 2 0.5 6100 330 6.9×10⁻⁶ 75
-1.3
32 42 3.7 0.2 2 0.5 4700 490 2.1×10⁻⁵ 130
-1.3
40 55 15 0.2 2 0.7 4200 530 2.3×10⁻⁵ 265
-1.5
55 72 33 0.2 2 0.7 3900 860 3.7×10⁻⁵ 735
-1.5
65 81 80 0.2 2 0.7 3500 900 3.6×10⁻⁵ 1000
-1.5
