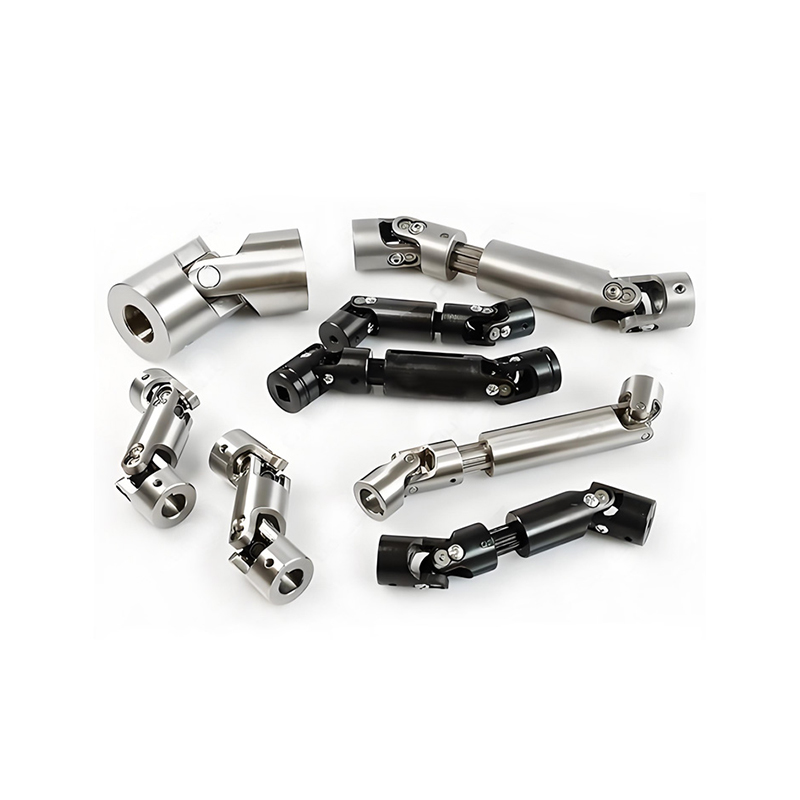

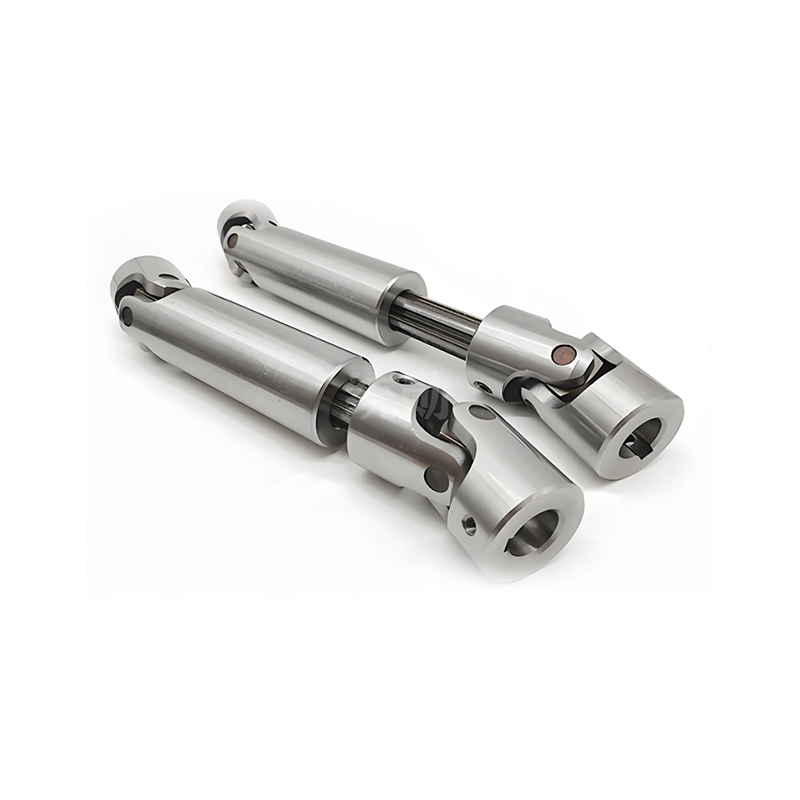

RSK-WSS Type Precision Universal Coupling Extension type Higher Transmission Accuracy and Reliability

Home / Products / Cardon Shafts / RSK-WSS Type Precision Universal Coupling Extension type Higher Transmission Accuracy and Reliability

RSK-WSS Type Precision Universal Coupling Extension type Higher Transmission Accuracy and Reliability

Contact Us
  • Specification
  • Describe
Specification

Excellent High-Speed Stability

High Transmission Accuracy and Reliability

Increased Load Capacity and Service Life

Advanced Lubrication and Sealing

Retains Large-Angle Compensation Capability

Model

Nominal Torque(N.m)

D

d

L0min

L

L1

L2

S

RSK-WSS20

22.4

20

12

176

22

32

112

30

RSK-WSS25

45

25

14

200

27

40

120

30

RSK-WSS32

71

32

18

243

30

46

151

35

RSK-WSS40

140

40

22

287

38

58

171

43

RSK-WSS50

280

50

28

337

44

69

199

50

RSK-WSS60

560

60

35

428

60

91

246

65

RSK-WSS75

1120

75

42

556

84

122

322

90









Company
Jiangsu Rokang Heavy Industry Technology Co., Ltd.
Jiangsu Rokang Heavy Industry Technology Co., Ltd. has fixed assets of more than 80 million yuan, and has a team of professional talents in mechanical design, precision manufacturing, heat treatment, welding, etc.; the company has a one-stop complete set of processing facilities and a series of quality inspection systems such as measurement, physical and chemical, and dynamic testing, and has a comprehensive mechanical processing capability. For many years, the company has been committed to the research and development and manufacturing of ball cage type constant velocity universal couplings, cross shaft type universal couplings, and drum gear couplings. It has carried out close industry-university-research cooperation with military and local scientific research institutes such as Jiangsu University of Science and Technology, School of Mechanical Engineering of Jiangsu University, and Power Engineering Department of PLA Naval Academy, and has continuously expanded into the fields of precision, heavy load and high speed. The products have successfully replaced foreign imported products with excellent performance, and the process technology has reached the international advanced level. It has been widely used in lifting and transportation, metallurgical machinery, metal rolling, engineering machinery, mining machinery, petrochemical, textile machinery, military ships, armored vehicles, railway locomotives, special vehicles and other fields. The product quality and service have been recognized and praised by the majority of users, and are exported to Europe, America, Russia, the Middle East, India and other countries and regions. In recent years, the company has been committed to the in-depth research and development of ball cage constant velocity universal couplings, and has successively developed ball cage constant velocity universal couplings for screw pumps, ball spline ball cage constant velocity universal couplings, coaxial double-speed, and double-way ball cage constant velocity universal couplings. It fundamentally solves the new problems that users currently encounter during use. The company has always adhered to the business purpose of "quality first, honest management, and customer first". We are willing to work with you with excellent products, preferential prices and thoughtful services to create a brilliant career!
