- Specification
- Describe
Specification

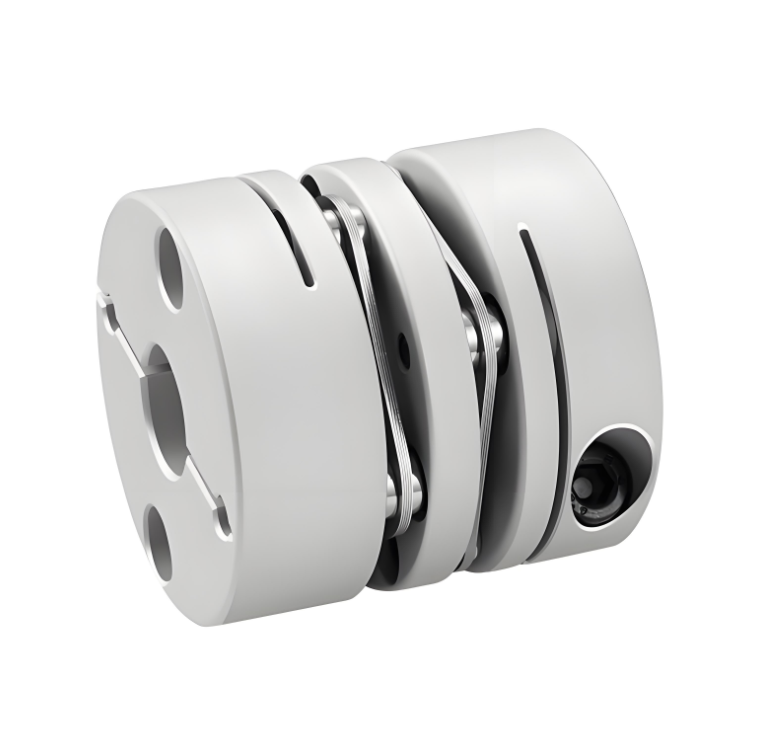

>High strength alumium alloy shaft sleeve
>The diaphragm is made of 304 stainless steel
>High torque rigidity, can accurately control the rotation of the shaft, can carry out high precision control
>Designed for servo and stepper motors
>The gap-free shaft and shaft sleeve connection is suitable for forward and reverse rotation
>Low inertia, suitable for high speed operation
>Clamping screw tightening method
|

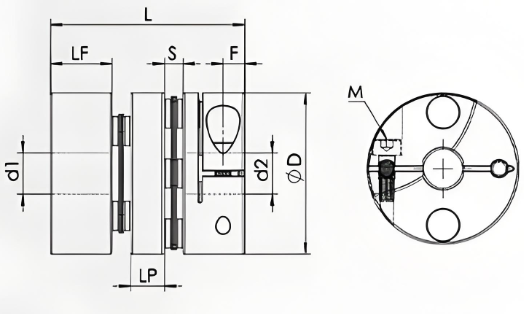

Code name |
D |
L |
Standard Inner Diameter(mm) |
E |
N |
D1 |
F |
H |
M |
Torque tightening(N.m) |
|
RSK-CPLF |
16.6 |
23 |
3, 4, 5, 6 |
3.6 |
2.2 |
6.5 |
3.3 |
7.5 M2.5 0. |
M2.5 |
0.8 |
|
|
21 |
24.5 |
3, 4, 5, 6, 6.35, 7, 8, 9, 9.525, 10 |
4.7 |
2.7 |
10.5 |
3.3 |
7.2 |
M2.5 |
0.8 |
|
|
28 |
32.2 |
5, 6, 6.35, 7, 8, 9, 9.525, 10, 11, 12, 12.7, 14 |
6.2 |
3.5 |
15 |
3.85 |
9.5 |
M3 |
1.2 |
|
|
34 |
35 |
5, 6, 6.35, 7, 8, 9, 9.525, 10, 11, 12, 12.7, 14, 15, 16 |
7.2 |
3.7 |
16.5 |
4.85 |
10.2 |
M4 |
2.5 |
|
|
46 |
44 |
8, 9, 9.525, 10, 11, 12, 12.7, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25 |
8.4 |
4.6 |
25.5 |
5 |
13.2 |
M5 |
5 |
|
|
55 |
55 |
10, 11, 12, 12.7, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25, 28, 30 |
11.6 |
5.2 |
31 |
6 |
16.5 |
M5 |
5 |
|
Code name |
D |
L |
Rating torque(N.m) |
Allow bias(mm) |
Allow tilt(∠°) |
Allow axial deviation(mm) |
Allow RPM |
Static torsional stiffness(N.m/rad) |
Moment of inertia(N.m) |
Weight(g) |
|
RSK-CPLF |
16.6 |
23 |
0.5 |
0.10 |
1.0 |
±0.18 |
9000 |
480 |
4.22x10-7 |
12 |
|
21 |
24.5 |
1.0 |
0.10 |
1.0 |
±0.18 |
8000 |
750 |
1.11x10-6 |
18 |
|
|
28 |
32.2 |
1.5 |
0.15 |
1.2 |
±0.18 |
8000 |
2500 |
4.68x10-6 |
45 |
|
|
34 |
35 |
3 |
0.17 |
1.5 |
±0.18 |
8000 |
4200 |
1.1x10-5 |
70 |
|
|
46 |
44 |
9 |
0.22 |
1.5 |
±0.25 |
8000 |
11000 |
3.8x10-5 |
144 |
|
|
55 |
55 |
25 |
0.25 |
1.5 |
±0.25 |
8000 |
16500 |
1.6x10-4 |
265 |
