BJCF Rokang R&D ball cage CV universal joint for industry equipments

BJCF Rokang R&D ball cage CV universal joint for industry equipments

Contact Us
  • Specification
  • Describe
Specification

Operating angle≤18

Allowable expansion±10~±20

Linking with flange hub

Fundamental Specifications：

Type

Nominal Torque (N·m)

Fatigue Torque (N·m)

Allowable Operating Angle



The expansion Δ

The Moment of Inertia GD³ J × 10⁻⁵ (kg·m²)

L=500

L=1000

Every 100 more of the length

In rotation

At rest

Solid Shaft



Hollow Shaft



Solid Shaft



Hollow Shaft



BJ75CF

1520

588

25°

38°

±10

14.8

29.9

0.12

0.96

BJ95CF

2500

1127

25°

38°

±10

32.6

39.4

0.25

0.96

BJ100CF

3724

1420

25°

38°

±10

51.5

65.2

0.32

2.1

BJ125CF

5782

2744

25°

38°

±10

109

122

0.79

2.1

BJ150CF

11564

4704

25°

38°

±15

263

314

1.93

5.2

BJ175CF

15680

6713

25°

38°

±15

469

567

2.80

8.5

BJ200CF

23912

11172

25°

38°

±15

964

1053

5.50

17.8

BJ225CF

29694

14700

25°

38°

±15

1450

1678

7.40

17.8

BJ250CF

42238

20678

25°

38°

±20

2245

2726

12.6

54

BJ300CF

63112

29106

25°

38°

±20

4576

5131

20.2

54

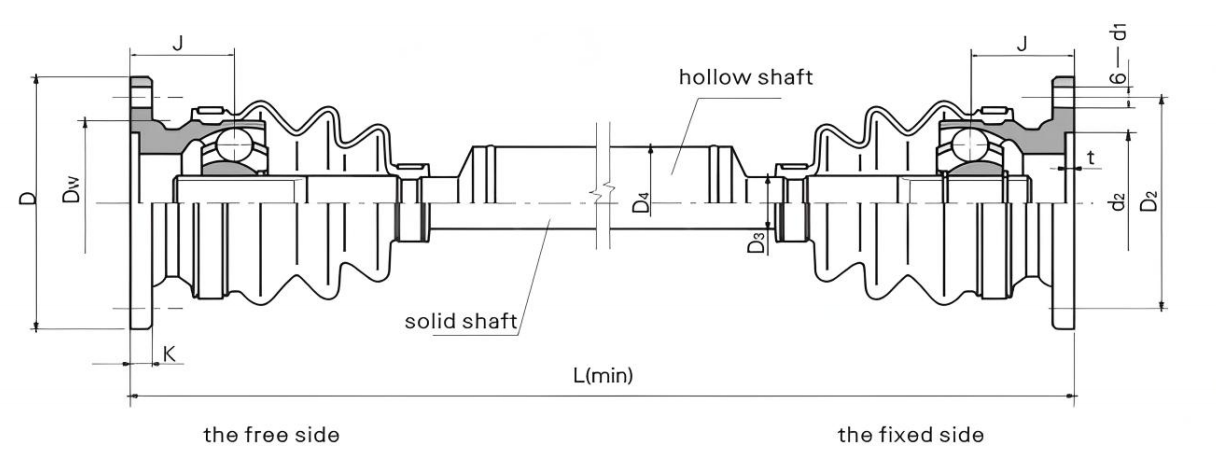

The main dimensions：

Type

Dw

D

Dz

K

t

d1

dz

J

Solid Shaft D3

Hollow Shaft D4

L(min)

Solid Shaft



Hollow Shaft



BJ75CF

68.5

118

97

8

3

10.5

620 +0.074

40

22

50

240

545

BJ95CF

84.5

136

110

10

3

12.5

700+0.074

46

27.5

50

290

550

BJ100CF

90

154

125

10

3

14.5

800 +0.087

47

29.75

60

305

550

BJ125CF

112.5

179

150

10

3.5

14.5

1020+0.087

55

36.75

60

375

655

BJ150CF

135

192

165.1

12

3.5

14.5

1100 +0.087

76

46

76

420

785

BJ175CF

158

215

185

15

5

17

125 +0.10​

83

52

89

470

885

BJ200CF

185

250

215

16

5

19

140 +0.10​

95

60

102

540

905

BJ225CF

206

265

228

18

5

21

155 +0.10​

105

66

102

580

905

BJ250CF

230

295

260

20

6

23

160 +0.10​

120

75

140

650

1000

BJ300CF

266.7

355

318

22

6

25

185 +0.115​

140

84

140

715

1000

The characteristic and usage

The adjustment of the installing distance and the axial expansion are realized through the sliding spline fit in the universal joint.The allowable operating angle is larger than that of the BJ-DF Type.

It is mainly used on the driving of the deflecting roll, squeezing roll, scrubbing tank on the metallurgical production equipment.

The symbolizing example:BJ125CF1000

BJ: BJ Type

125: The specification is 125

CF: CF Type

1000: The length is1000
