BJ-D High torque Arc groove ball cage synchronous constant speed universal coupling-Jiangsu Rokang Heavy Industry Technology Co., Ltd.

Specification

Operating angle=18°

Allowable expansion 士12~±35

Linking with flange hub

Fundamental Specifications：

Type	Diagram	Nominal Torque (N·m)	Fatigue Torque (N·m)	Allowable Operating Angle		The expansion Δ	The Moment of Inertia GD³ J × 10^-3 (kg·m²)
				Allowable Operating Angle			L=500	L=1000	Every 100 more of the length
				In rotation	At rest		Solid Shaft	Hollow Shaft	Solid Shaft	Hollow Shaft
BJ75D	Figure 1	1520	588	14°	16°	±12	16.4	23.6	0.12	0.96
BJ95D	Figure 1	2500	1127	14°	16°	±16	40	46.6	0.25	0.96
BJ125D	Figure 1	5782	2744	16°	18°	±20	152	166	0.79	2.1
BJ150D	Figure 1	11564	4704	16°	18°	±24	323	360	1.93	5.2
BJ175D	Figure 2	15680	6713	16°	18°	±27	596	653	2.80	8.5
BJ200D	Figure 2	23912	11172	16°	18°	±29	1180	1290	5.50	17.8
BJ225D	Figure 2	29694	14700	16°	18°	±29	1960	2070	7.40	17.8
BJ250D	Figure 2	42238	20678	18°	20°	±30	3250	3550	12.6	54
BJ300D	Figure 2	63112	29106	18°	20°	±35	6200	6540	20.2	54

The main dimensions：

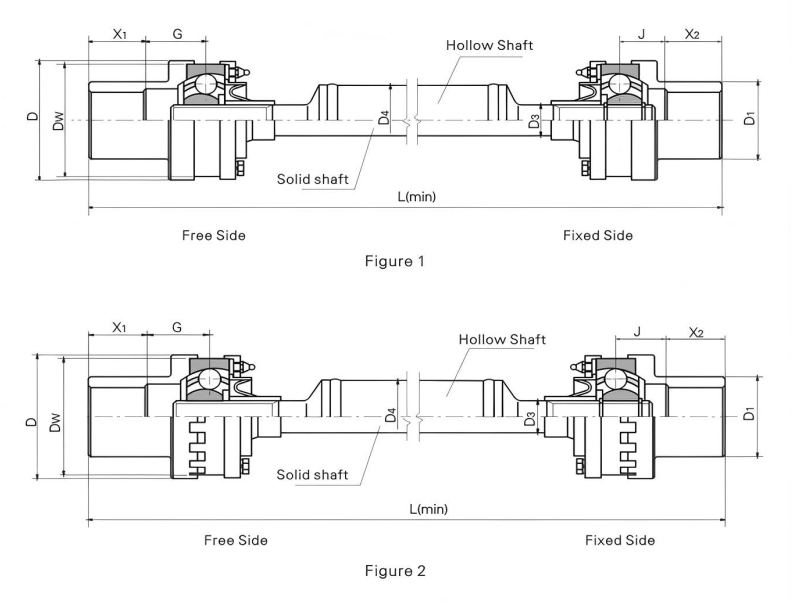

Type	Diagram	Dw	D	D1	G	J	Solid Shaft D3	Hollow Shaft D4	L(min)
Type	Diagram	Dw	D	D1	G	J	Solid Shaft D3	Hollow Shaft D4	Solid Shaft	Hollow Shaft
BJ75D	Figure 1	80	85	55	38	26	22	50	280	640
BJ95D	Figure 1	95	100	65	50	32	27.5	50	400	710
BJ125D	Figure 1	125	130	90	62	42	36.75	60	490	840
BJ150D	Figure 1	146	151	105	72	50	46	76	520	970
BJ175D	Figure 2	165.1	170	120	80	60	52	89	580	1080
BJ200D	Figure 2	190	196	140	85	65	60	102	650	1120
BJ225D	Figure 2	212	218	160	90	70	66	102	720	1140
BJ250D	Figure 2	230	238	180	100	80	76	140	750	1160
BJ300D	Figure 2	266.7	273	205	115	90	84	140	830	1190

Remarks :X₁,X₂ are the lengths of the shaft ends decided by customers.

The characteristic and usage

The adjustment of the installing distance and the axial expansion are realized through the sliding spline fit in the universal joint.

it is mainly used for the driving of the pinch roll, scrubbing roll sealing roll ,finishing tension roll and squeezing roll on the metallurgical equipment.

The symbolizing example:BJ125D1000

BJ: BJ Type

125: The specification is 125

D: D Type

1000: The length is1000

Describe

The arc groove ball cage constant speed universal coupling is a precision component that plays a key role in the field of modern industrial transmission. With its excellent performance and reliable quality, it has become an ideal choice for many high-demand application scenarios.

The CV Joint is mainly composed of core components such as the ball cage outer ring, the star-shaped inner ring, the cage and the force transmission steel ball. The ball cage outer ring and the star-shaped inner ring are firmly connected to the master and slave shafts respectively. The center of the force transmission steel ball is located in the plane passing through the center of the coupling and is placed in the raceway composed of the outer spherical grooves of the spherical outer ring and the outer spherical grooves of the star-shaped inner ring. The centers of the two spheres coincide precisely with the center of the universal coupling, and the steel balls are installed in the window of the cage. Such an exquisite structural design ensures that when the angle between the master and slave shafts of the coupling changes, the force transmission point is always on the bisector of the angle, thereby realizing the synchronization of the speed between the master and slave shafts, which is also the fundamental reason why it is called a synchronous constant velocity universal coupling.

In terms of performance, this coupling has many highlights. Its synchronization is excellent, which effectively avoids the problem of unstable equipment operation caused by speed difference. It has strong buffering and vibration reduction performance, which can significantly reduce the noise during the transmission process and create a quieter environment for equipment operation. Moreover, under the same rotation diameter and inclination angle, its load-bearing capacity can be increased by 0.5-1 times compared with similar products, which is fully capable of transmitting large torque. In both axial and radial directions, it has a large compensation amount, especially in the axial direction, which can be achieved without external splines, greatly simplifying the overall structure of the equipment. In addition, the coupling also has the advantages of novel structure, light weight, good processability, etc., which is convenient for mass production and helps to reduce costs. At the same time, it is reliable in operation, easy to assemble and disassemble, easy to maintain daily, and has a long service life. Whether it is low-speed heavy load or high-speed transmission conditions, it can easily cope with it.

High-torque fixed ball cage type synchronous constant velocity universal coupling is widely used in many industries such as metallurgy, mining, engineering machinery, petrochemicals, etc. In large-scale steel rolling equipment in the metallurgical industry, it can stably transmit large torque to ensure the efficiency and accuracy of the steel rolling process; in the excavation and transportation equipment of mining machinery, it can adapt to complex working conditions to ensure stable and reliable power transmission; in the lifting and excavation operations of engineering machinery, it provides strong support for the strong power output of the equipment; in large-scale mixing and conveying equipment in the petrochemical industry, it plays a vital transmission role.
