SWC DH Short Sliding Cardon Drive shaft soldering type RSK Customization

Home / Products / Cardon Shafts / SWC DH Short Sliding Cardon Drive shaft soldering type RSK Customization
  • Specification
  • Describe
Specification

Key Functions

Power Transmission: Carries rotational force from a power source to a driven component.

Misalignment Compensation: Allows power transfer between shafts at different angles or offsets, which is crucial for vehicle suspension or industrial machinery.

Flexibility: Accommodates changes in distance and angle as components move, like wheels moving over bumps.

Applications

Automotive: Transmitting power from the transmission to the differential/wheels in rear-wheel drive (RWD) or four-wheel drive (4WD) vehicles.

Agriculture: Connecting tractor engines to implements.

Industrial: In heavy machinery, marine applications, and plant engineering

Splined Joint/Sleeve: Allows the shaft to extend or shorten as needed, compensating for axial movement.

P/N

Tactical Diameter

 D/mm

Nominal torque

Tn/kN.m

Fatigue torque

Tf/kN.m

Misa

lign

ment

β/(。)

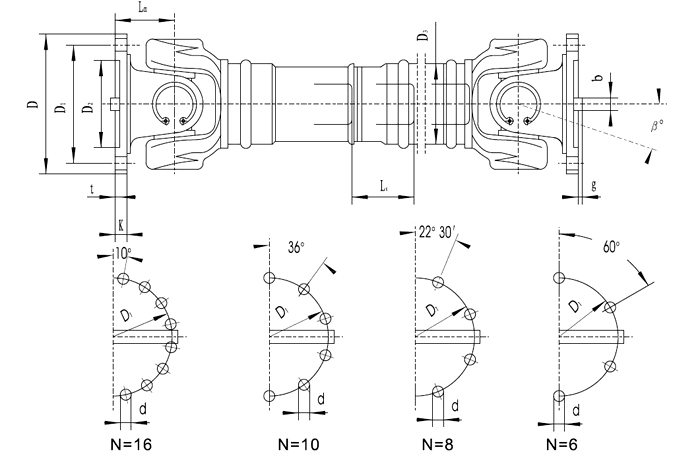

Dimension(mm)

Axial Displacement

Ls/mm

Dynamic Moment of InertiaI

(kg·m2)

Weight

(Kg)

Lmin



D1
(js11)



D2
(H7)



D3



Lm



n-d



K

T

b
(h9)

g



Lmin

Ever 100 mm

of increase

Lmin

Ever 100 mm

of increase

SWC180DH1

180

12.5

6.3

≤25

650

155

105

114

110

8-17

17

5

-

-

75

0.165

0.0070

58

2.8

SWC180DH2

600

55

0.162

56

SWC180DH3

550

40

0.160

52

SWC225DH1

225

40

20

≤15

710

196

135

152

120

8-17

20

5

32

9.0

85

0.415

0.0234

95

4.9

SWC225DH2

640

70

0.397

92

SWC250DH1

250

63

31.5

≤15

795

218

150

168

140

8-19

25

6

40

12.5

100

0.900

0.0277

148

5.3

SWC250DH2

735

70

0.885

136

SWC285DH1

285

90

45

≤15

950

245

170

194

160

8-21

27

7

40

15.0

120

1.876

0.0510

229

6.3

SWC285DH2

880

80

1.801

221

SWC315DH1

315

125

63

≤15

1070

280

185

219

180

10-23

32

8

40

15.0

130

3.331

0.0795

346

8.0

SWC315DH2

980

90

3.163

334

SWC350DH1

350

180

90

≤15

1170

310

210

267

194

10-23

35

8

50

16.0

140

6.215

0.2219

508

15.0

SWC350DH2

1070

90

5.824

485

SWC390DH1

390

250

125

≤15

1300

345

235

267

215

10-25

40

8

70

18.0

150

11.125

0.2219

655

15.0

SWC390DH2

1200

90

10.763

600
