SWC-WH Propeller Shaft Coupling No Travel Soldering type used in Automotive Industry

Contact Us
  • Specification
  • Describe
Specification

Compensates for Large Angular Misalignment

Compact Design with High Load Capacity

High Transmission Efficiency

High Reliability and Relatively Simple Maintenance

Suitable for Harsh Environment

Customized by your requirements

Applications

Automotive: Transmitting power from the transmission to the differential/wheels in rear-wheel drive (RWD) or four-wheel drive (4WD) vehicles.

Agriculture: Connecting tractor engines to implements.

Industrial: In heavy machinery, marine applications, and plant engineering

Splined Joint/Sleeve: Allows the shaft to extend or shorten as needed, compensating for axial movement.



P/N

Tactical Diameter D/mm

Nominal torque

Tn/kN.m

Fatigue torque

Tf/kN.m

Angular Misalig

nment

β/(。)

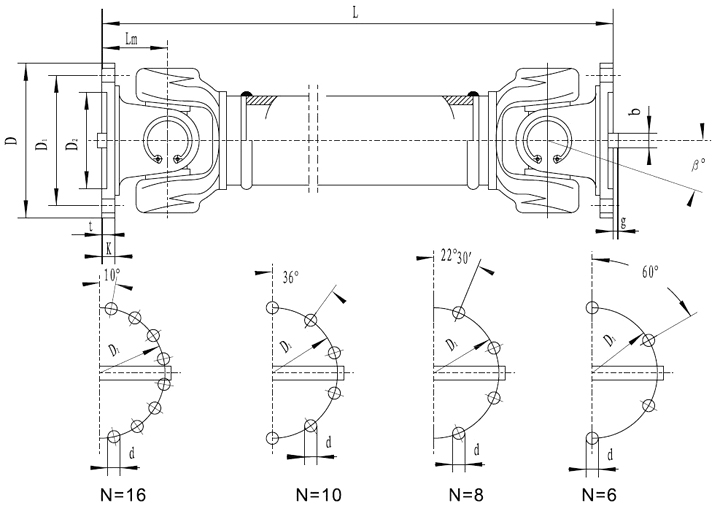

Dimension(mm)

Dynamic Moment of InertiaI (kg·m2

Weight ( Kg)











Lmin



D1
(js11)



D2
(H7)



D3



Lm



n-d



K

T

b
(h9)

g



Lmin

Ever 100 mm of increase

Lmin

Ever 100 mm of increase

SWC100WH

100

1.25

0.63

≤25

243

84

57

60

55

6-9

7

2.5

-

-

0.0039

0.00019

4.5

0.35

SWC120WH

120

2.5

1.25

≤25

307

102

75

70

65

8-11

8

2.5

-

-

0.0096

0.00044

7.7

0.55

SWC150WH

150

5

2.5

≤25

350

130

90

89

80

8-13

10

3

-

-

0.0317

0.00157

18

0.85

SWC180WH

180

12.5

6.3

≤25

480

155

105

114

110

8-17

17

5

-

-

0.1500

0.0070

48

2.5

SWC225WH

225

40

20

≤15

520

196

135

152

120

8-17

20

5

32

9.0

0.3650

0.0234

78

4.9

SWC250WH

250

63

31.5

≤15

620

218

150

168

140

8-19

25

6

40

12.5

0.8470

0.0277

124

5.3

SWC285WH

285

90

45

≤15

720

245

170

194

160

8-21

27

7

40

15.0

1.7560

0.0510

185

6.3

SWC315WH

315

125

63

≤15

805

280

185

219

180

10-23

32

8

40

15.0

2.8930

0.0795

262

8.0

SWC350WH

350

180

90

≤15

875

310

210

267

194

10-23

35

8

50

16.0

5.0130

0.2219

374

15.0

SWC390BH

390

250

125

≤15

955

345

235

267

215

10-25

40

8

70

18.0

8.4060

0.2219

506

15.0

SWC440BH

440

355

180

≤15

1155

390

255

325

260

16-28

42

10

80

20.0

15.790

0.4744

790

21.7

SWC490BH

490

500

250

≤15

1205

435

275

325

270

16-31

47

12

90

22.5

26.540

0.4744

1014

21.7

SWC550BH

550

710

355

≤15

1355

492

320

426

305

16-31

50

12

100

22.5

48.320

1.3570

1526

34
