RSK-BJB High-efficiency transmission ball cage CV Universal couplings mainly used in Mining Truck Wheel End

BJ-B Characteristic：

Operating angle≤42.5°

Linking through Spline shaft

Fundamental Specifications

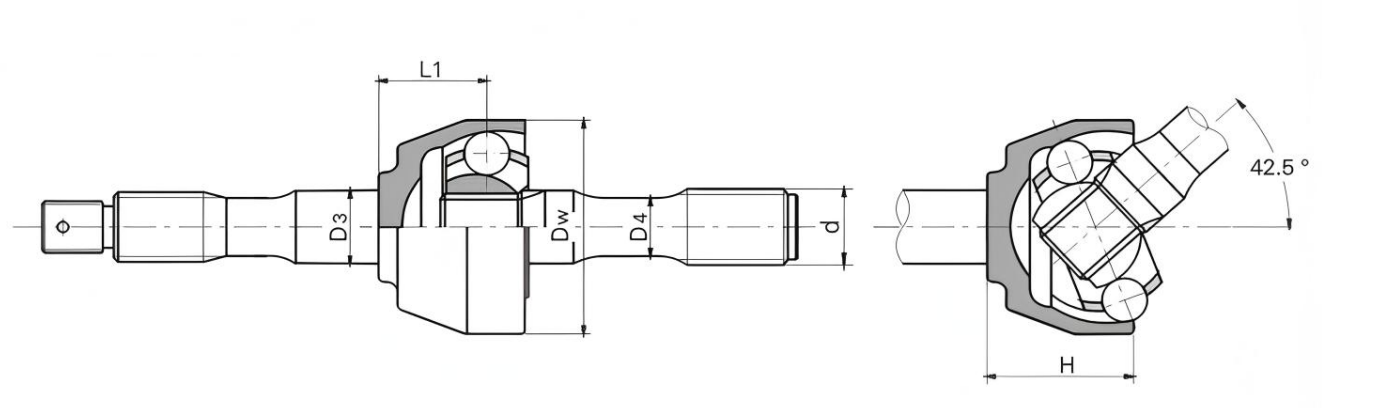

 The main dimensions

Remarks: the"∞" dimensions are for reference

The characteristic and usage

• Compact structure; easy assembling and disassembling; the allowable operating angle can reach 42.5°.
• It is mainly used for the transmission of the driving steering bridge of vehicles.

The symbolizing example:BJ125B1000

BJ: BJ Type

125: The specification is 125

B: B Type

1000: The length is 1000

The high-efficiency transmission ball cage CV Universal couplings is a precision transmission component designed for complex working conditions. Its excellent performance and reliable quality play a key role in many fields. ​

The coupling is mainly composed of a ball cage outer ring, a star-shaped inner ring, a cage and a force-transmitting steel ball. The ball cage outer ring and the star-shaped inner ring are closely connected to the master and slave shafts respectively. The centers of the force-transmitting steel balls are all located in the plane passing through the center of the coupling and are placed in the raceway composed of the outer spherical grooves of the spherical outer ring and the outer spherical grooves of the star-shaped inner ring. The centers of the two spherical surfaces coincide with the center of the universal coupling. To ensure that the centers of all steel balls are on the bisector of the angle between the axes of the two shafts, the steel balls are cleverly installed in the window of the cage. Such an ingenious design ensures that when the angle between the master and slave shafts of the coupling changes, the force transmission point can always be accurately located on the bisector of the angle, thereby ensuring perfect synchronization of the speed between the master and slave shafts. ​

This coupling has many significant advantages. In terms of transmission performance, it can achieve high-precision synchronous transmission, effectively reduce energy loss during power transmission, and the transmission efficiency can be as high as 98% or more. At the same time, its excellent buffering and vibration reduction performance can greatly reduce the noise generated during equipment operation, creating a relatively quiet atmosphere for the working environment. In terms of load-bearing capacity, under the conditions of the same rotation diameter and inclination angle, compared with traditional couplings, it can increase the load-bearing capacity by 0.5 to 1 times, and can easily cope with heavy-load conditions. Moreover, its compact structure and small footprint make it very suitable for working scenarios with strict restrictions on radial dimensions. In addition, the coupling has excellent sealing performance and adopts advanced sealing technology to effectively avoid grease leakage, significantly extending the maintenance cycle and service life of the equipment. ​

High-efficiency transmission fixed ball cage type synchronous universal couplings are widely used in many fields such as automobile manufacturing, mechanical engineering, metallurgical industry, aerospace, etc. In the transmission system of automobiles, it ensures the smooth transmission of power and improves the vehicle's handling performance and driving stability; in mechanical engineering equipment, it provides reliable guarantee for the efficient operation of various types of machinery; in large-scale equipment in the metallurgical industry, it can withstand huge torque and complex working conditions, helping the smooth progress of production; in the aerospace field, its high precision and high reliability meet the stringent technical requirements.
