The KC Chain Coupling, fully known as the "Roller Chain Coupling," is a mechanical element that transmits power through the meshing of double-strand or multi-strand roller chains with two sprocket-type half-couplings of the same number of teeth.

Its core principle relies on the "flexibility" of the chain to compensate for relative displacement between two shafts, while utilizing the meshing between the sprocket teeth and chain rollers to transmit torque. It belongs to the category of flexible couplings without elastic elements. Its compensation capability primarily stems from the clearance within the chain hinges and the chain's inherent flexibility.

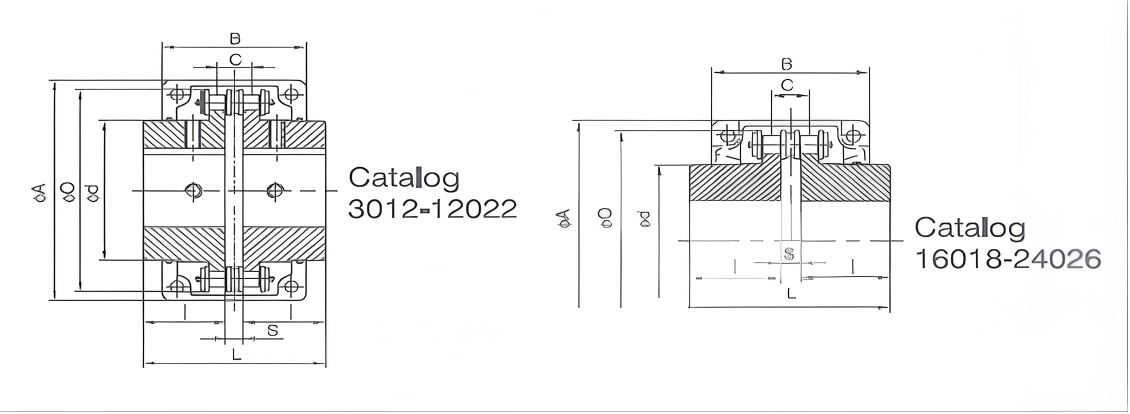

A standard KC chain coupling mainly consists of the following components:

Two Sprocket-Type Half-Couplings: Identical in shape to sprockets, typically made of high-quality alloy steel, and connected to the driving and driven shafts via keys, taper bushes, etc.

Double-Strand (or Multi-Strand) Roller Chain: Serves as the intermediate flexible element, wrapped around and meshing with both half-couplings.

Guard (Casing): Usually made of two split metal covers (steel or aluminum) fastened with bolts. Its core functions are:

Safety Guarding: Prevents the high-speed rotating chain from flying out and causing accidents in case of breakage.

Lubricant Reservoir: Can be filled with grease to provide continuous lubrication and rust prevention for the chain.

Dust and Contaminant Protection: Shields the chain from external dust, moisture, and debris.

Key Characteristics

Simple Structure, Low Cost:

Few components, mature manufacturing processes (sprockets and chains are standard parts). It is one of the coupling types with the highest cost-performance ratio.

Easy Installation, Lower Alignment Requirements:

Due to its inherent clearance and flexibility, it has good adaptability to axial, radial, and angular installation errors (combined misalignment) between shafts. Installation and alignment are faster and easier compared to gear or disc couplings.

Strong Load-Bearing Capacity:

The multi-strand chain design can transmit considerable torque, making it suitable for medium-power and medium-load drive applications.

Allows for Relatively Large Axial Displacement:

The chain can slide axially along the sprocket teeth, enabling compensation for significant axial float caused by thermal expansion or bearing clearances.

Simple Maintenance (for open designs):

Early open-type chain couplings, without guards, allowed direct observation of wear and easy lubrication. Modern guarded designs also only require periodic opening of the casing for inspection and regreasing.

Easy Disassembly:

Does not require axial movement of the connected machinery. Simply removing the guard bolts and the chain connecting link (if used) allows the chain to be taken off, enabling disengagement.

Primary Application Fields

KC chain couplings are suitable for economical applications with medium to low speeds, medium loads, requiring some misalignment compensation, and where high transmission precision is not critical

such as:

Agricultural Machinery: Drives for harvesters, tractors, etc.

Conveying Equipment: Drives for belt conveyors, chain conveyors.

General Industrial Equipment: Fans, pumps, mixers, drums.

Construction Machinery: Small mixing plants, lifting equipment.

Some cost-sensitive light industrial machinery.
