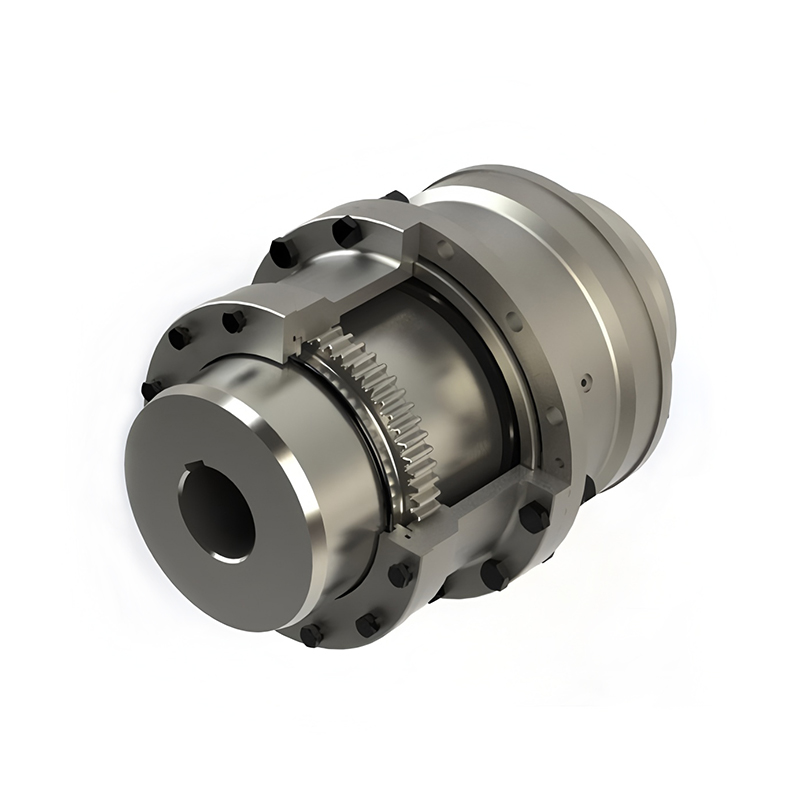

GICL Drum Gear Coupling Wide Type High load capacity and torque transmission-Jiangsu Rokang Heavy Industry Technology Co., Ltd.

Specification

Allows for significant angular and radial displacement

High load capacity and torque transmission

High reliability and long service life

Suitability for high speeds

Requires lubrication and maintenance

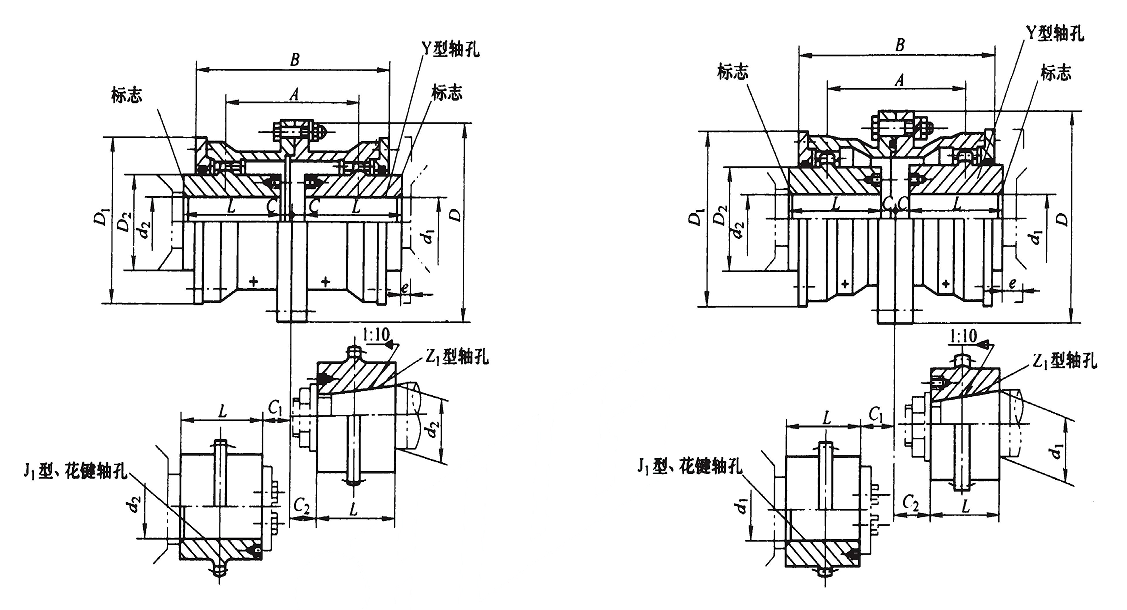

P/N	Nominal Torque Tn/kN・m	Permitted speed n/r・min⁻¹	Axial bore diameter	Axial bore length		D	D₁	D₂	B	A	C	C₁	C₂	e	Turn inertia /kg·m²	Lubricating dosage /mL	Weight /kg
			d₁,d₂,d₃	Y	J₁,J₄
			mm
GICL1	800	7100	16,18,19	42	--	125	95	60	115	75	20	--	--	30	0.009	55	5.9
			20,22,24	52	38						10	--	24
			25,28	62	44						2.5	--	19
			30,32,35,38	82	60							15	22
GICL2	1400	6300	25,28	62	44	145	120	75	135	88	10.5	--	29		0.02	100	9.7
			30,32,35,38	82	60						2.5	12.5	30
			40,42,45,48	112	84							13.5	28
GICL3	2800	5900	30,32,35,38	82	60	170	140	95	155	106	3	24.5	25		0.047	140	17.2
			40,42,45,48,50,55,56	112	84							17	28
			60	142	107								35
GICL4	5000	5400	32,35,38	82	60	195	165	115	178	125	14	37	32		0.091	170	24.9
			40,42,45,48,50,55,56	112	84						3	17	28
			60,63,65,70	142	107								35
GICL5	8000	5000	40,42,45,48,50,55,56	112	84	225	183	130	198	142	3	25	28		0.167	270	38
			60,63,65,70,71,75	142	107							20	35
			80	172	132							22	43
GICL6	11200	4800	48,50,55,56	112	84	240	200	145	218	160	6	35	35		0.267	380	48.2
			60,63,65,70,71,75	142	107						4	20
			80,85,90	172	132							22	43
GICL7	15000	4500	60,63,65,70,71,75	142	107	260	230	160	244	180	4	25	35		0.453	570	68.9
			80,85,90,95	172	132							22	43
			100	212	167								48
GICL8	21200	4000	65,70,71,75	142	107	280	245	175	264	193	5	35	35		0.646	660	83.3
			80,85,90,95	172	132							22	43
			100,110	212	167								48
GICL9	26500	3500	70,71,75	142	107	315	270	200	284	208	10	45	45		1.036	700	110
			80,85,90,95	172	132						5	22	43
			100,110,120,125	212	167								48
GICL10	42500	3200	80,85,90,95	172	132	345	300	220	330	249	5	43	43		1.88	900	156.7
			100,110,120,125	212	167							22	49
			130,140	252	202							29	54
GICL11	6000	3000	100,110,120	212	167	380	330	260	360	267	6	29	49	40	3.28	1200	217.1
			130,140,150	252	202								54
			160	302	242								64
GICL12	8000	2600	120	212	167	440	380	290	416	313	6	57	57		5.08	2000		305.1
			130,140,150	252	202							29	55
			160,170,180	302	242								68
GICL13	112000	2300	140,150	252	202	480	420	320	476	364	7	54	57		10.06	3000		419.4
			160,170,180	302	242							32	70
			190,200	352	282								80
GICL14	160000	2100	160,170,180	302	242	520	465	360	532	415	8	42	70		16.774	4500	593.9
			190,200,220	352	282							32	80
GICL15	224000	1900	190,200,220	352	282	580	510	400	556	429	10	34	80		26.55	5000	783.3
			240,250	410	330							38	--
GICL16	355000	1600	200,220	352	282	680	595	465	640	501	10	58	80	50	52.22	8000	1134.4
			240,250,260	410	330							38	--
			280	470	380
GICL17	400000	1500	220	352	282	720	645	495	672	512	10	74	80		69	10000	1305
			240,250,260	410	330							39	--
			280,300	470	380
GICL18	500000	1400	240,250,260	410	330	775	675	520	702	524	10	46	--		96.16	11000	1626
			280,300,320	470	380							41
GICL19	630000	1300	260	410	450	815	715	560	744	560	10	67	--		115.6	13000	1773
			280,300,320	470	380							41
			340	550	450
GICL20	710000	1200	280,300,320	470	380	855	755	585	786	595	13	44	--		167.41	16000	2263
			340,360	550	450
GICL21	900000	1100	300,320	470	380	915	795	620	808	611	13	59	--		215.7	20000	2593
			340,360,380	550	450							44
			400	650	540
GICL22	950000	950	340,360,380	550	450	960	840	665	830	632	13	44	--	60	278.07	26000	3036
			400,420	650	540
GICL23	1120000	900	360,380	550	450	1010	890	710	870	666	13	44	--		379.4	29000	3668
			400,420,450	650	540							48
GICL24	1250000	875	380	550	450	1050	925	730	890	685	15	46	--		448.1	3200	3946
			400,420,450,480	650	540							50
GICL25	1400000	850	400,420,450	650	540	1120	970	770	930	724	15	50	--		564.64	34000	4443
			480,500
GICL26	1600000	825	420,450,480,500,530	650	540	1160	990	800	950	733	15	50	--		637.4	37000	4791
GICL27	1800000	800	450,480,500	650	540	1210	1060	850	958	739	15	55	--	70	866.26	45000	5758
			530,460	800	680
GICL28	2000000	770	480,500	650	540	1250	1080	890	1034	805	20	55	--		1020.75	47000	6232
			530,560,600,630	800	680
GICL29	2800000	725	500	650	540	1340	1200	960	1034	792	20	57	--	80	1450.84	50000	7549
			530,560,600,630	800	680							55
GICL30	3500000	700	560,600,630	800	680	1390	1240	1005	1050	806	20	55	--		1974.17	59000	9541
			670	--	780

Describe

I. Core Structural Features

Drum-shaped tooth design: This is its most distinctive feature. The tooth tips and flanks of the external gear sleeve are machined into a spherical drum shape, meshing with the straight or slightly modified teeth of the internal gear ring. This design fundamentally distinguishes it from traditional straight-tooth couplings.

Basic-type structure: GICL is the "basic type." It typically consists of two shaft sleeves with drum-shaped external teeth and one internal gear ring with straight (or slightly modified) teeth, connected via bolts. The structure is relatively compact.

Clearance and lubrication: There is appropriate side clearance between the teeth. The interior is filled with lubricating grease (typically lithium-based grease or extreme pressure gear oil) to reduce wear and dissipate heat.

II. Exceptional Performance Characteristics

Allows for significant angular and radial displacement:

Angular compensation: Typically allows for 1° to 1.5° of angular misalignment. The drum-shaped tooth design enables the tooth contact point to shift smoothly with the misalignment, avoiding edge loading and stress concentration common in straight-tooth couplings.
Radial compensation: Allows for a certain degree of parallel offset (radial displacement).
Axial compensation: Due to the curved surface of the drum teeth, it can also absorb a small amount of axial float.
Comprehensive compensation capability: Can compensate for multi-directional displacements simultaneously, making it a typical flexible coupling.

High load capacity and torque transmission:

Multiple teeth engage simultaneously, resulting in a large contact area on the tooth surfaces and lower unit pressure. This enables the transmission of very high torque, making it suitable for heavy-duty applications.

High reliability and long service life:

The drum-shaped teeth avoid stress concentration, leading to even wear on the tooth flanks.
A good lubrication environment minimizes wear and corrosion.
With proper alignment and maintenance, it has a very long service life.

Suitability for high speeds:

Dynamic balancing can be performed effectively, making it suitable for medium to high-speed operating conditions.

Requires lubrication and maintenance:

This is a characteristic but can also be considered a drawback. It requires periodic replenishment of lubricating grease and inspection of the sealing condition, classifying it as a coupling requiring maintenance. The reliability of the seals (typically O-rings or lip seals) is crucial, as oil leakage will accelerate wear.

III. Application Characteristics

Typical application fields:

Heavy-duty metallurgical machinery (rolling mills, straightening machines)
Mining machinery (crushers, ball mills, conveyors)
Marine propulsion systems (connections between main engine and gearbox)
Large-scale pumps and fans
Power generation equipment (e.g., auxiliary equipment connections in turbine generator sets)
Other low-to-medium speed, heavy-duty drive systems with significant installation errors or operational displacements.
