SWC-WF Large Scale No Telescopic Flange type U- Joint Coupling high quality

Home / Products / Cardon Shafts / SWC-WF Large Scale No Telescopic Flange type U- Joint Coupling high quality
  • Specification
  • Describe
Specification

Compensates for Large Angular Misalignment

Compact Design with High Load Capacity

High Transmission Efficiency

High Reliability and Relatively Simple Maintenance

Suitable for Harsh Environment

Customized by your requirements

In practical applications, they are classified into heavy-duty, medium-duty, light-duty, and small-sized types based on the magnitude of torque transmitted. Heavy-duty universal couplings are commonly used in metallurgical machinery, heavy machinery, petroleum machinery, construction machinery, lifting and transportation machinery, etc. Medium-duty and light-duty universal couplings are often employed in vehicles such as automobiles and locomotives, as well as in light industrial machinery. Small-sized universal couplings are primarily used for motion transmission, typically in precision machinery and control mechanisms.



P/N

Tactical Diameter D/mm

Nominal torque

Tn/kN.m

Fatigue torque

Tf/kN.m

Angular Misalignmentβ/(。)

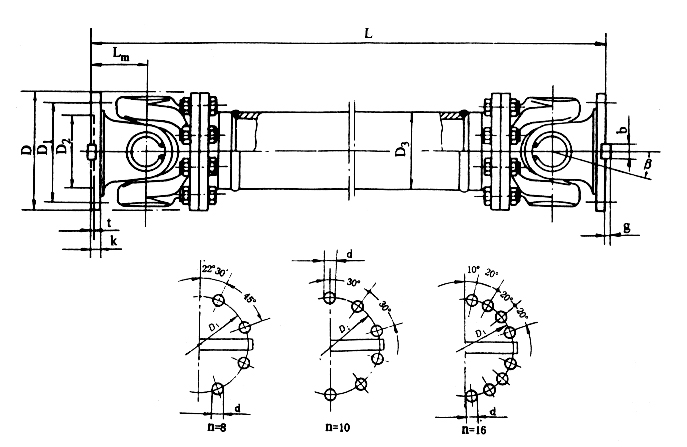

Dimension(mm)

Dynamic Moment of InertiaI (kg·m2)

Weight ( Kg)

Lmin

D3

Lm

Lmin

Ever 100 mm of increase

Lmin

Ever 100 mm of increase

SWC180WF

180

12.5

6.3

≤25

560

114

110

0.248

0.0070

58

2.8

SWC225WF

225

40

20

≤15

610

152

120

0.636

0.0234

93

4.9

SWC250WF

250

63

31.5

≤15

715

168

140

1.352

0.0277

143

5.3

SWC285WF

285

90

45

≤15

810

194

160

2.664

0.0510

220

6.3

SWC315WF

315

125

63

≤15

915

219

180

4.469

0.0795

300

8.0

SWC350WF

350

180

90

≤15

980

267

194

7.388

0.2219

412

15.0

SWC390WF

390

250

125

≤15

1100

267

215

13.184

0.2219

588

15.0

SWC440WF

440

355

180

≤15

1290

325

260

23.25

0.4744

880

21.7

SWC490WF

490

500

250

≤15

1360

325

270

40.75

0.4744

1173

21.7

SWC550WF

550

710

355

≤15

1510

426

305

68.48

1.3570

1663

34.0

SWC620WF

620

1000

500

≤15

1690

426

340

127.53

1.3570

2332

34.0
