Heavy-Duty Fluid Couplings for Efficient Power Transmission

Contact Us
  • Specification
  • Describe
Specification

Structural dimensions Maximum Torque FLUDEX Coupling Fitting the coupling N-EUPEXD Brake drum (Part 13) Product Code Weight(kg)
D1 mm DIN 6885 mm  L1 mm DA mm LG mm D3 mm S mm L4 mm D2 mm ND2 mm DBT mm BBT mm A mm
222 3600 ​≥38²)​ ​38​ 80 263 232 110 3+1 -1 92 42 68 200 75 30 2LC0900 - 0AC9 17
42²)​
297 3600 ​38 80 340 279 125 3+1 -1 96 55 84 200 75 30 2LC0900 - 1AC9 29

>38

​55

>55²)

60²)​
342 3600 55 110 400 337 140 3+1 -1 121 60 128³) 250 95 50 2LC0900 - 2AC9 48
>55²) 60²)​
395 3000 65 120 448 362 225 4.5+1.5 -1.5 153 80 128 315 118 50 2LC0900 - 3AC9 71
450 3000 75

140

170

512 395 250 6+2 -3 157 80 128 315 118 50 2LC0900 - 4AC9 86
>75 80
516 2300 ​55

140

170

584 466 315 5+3 -2 193 100 160 400 150 80 2LC0900 - 5AC9 146
>55 90
590 1900

​75 ​140​ 662 540 315 5+3 -2 232 110 175 500 190 110 2LC0900 - 6AC9 207

>75

95 170

>95​

100 210

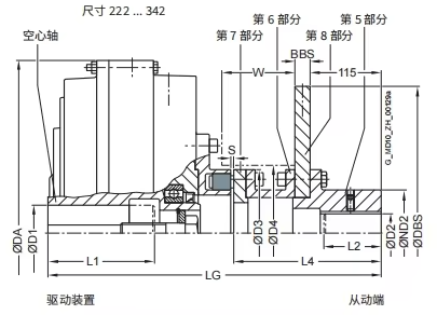

Structural dimensions Maximum Torque FLUDEX Coupling Fitting the coupling N-EUPEXD Brake drum (Part 5/8) Product Code Weight(kg)
D1 mm DIN 6885 mm  L1 mm DA mm LG mm D3 mm S mm L4 mm D2 mm ND2 mm DBS mm BBS mm D4 mm W mm
222 3600 38 80 263 366.5 110 5+1 224.5 42 70 250 12.5 115 109 2LC0900-0AE9 22
>38²) 42²)
297 3600 ​​ 38 80 340 409.5 125 5+1 224.5 60 85 250 12.5 130 115 2LC0900-1AE9 33
>38 55 110
>55²) 60²) 110
342 3600 55 110 400 442.5 140 5+1 224.5 60 90 250 12.5 145 115 2LC0900-2AE9 45
>55²) 60²) 120
395 3000 65 140 448 478 225 6+1 267.5 80 150 355 16 230 142 2LC0900-3AE9 80
450 2750 75 140 512 546.5 250 8+1 306.5 90 160 355 16 260 182 2LC0900-4AE9 101
>75 80 170
516 2150 55 140 584 566.5 315 8+1 290.5 100 160 450 16 325 166 2LC0900-5AE9 154
>55​ 90 170
590 2000 ​​ ​75 140 662 601.5 315 8+1 290.5 100 160 450 16 325 166 2LC0900-6AE9 179
>75 95 170
>95 100 210
