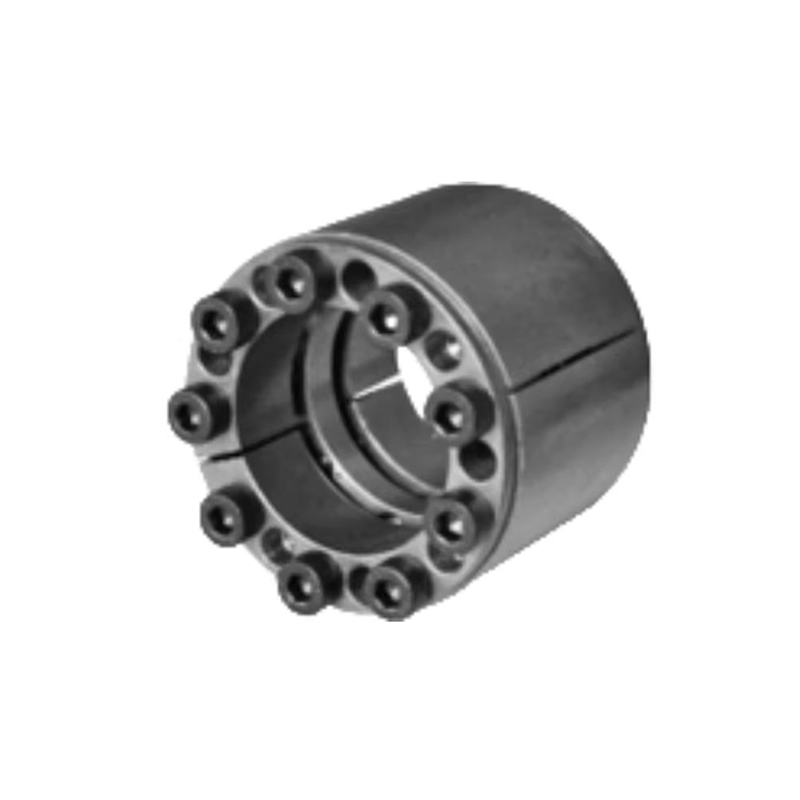

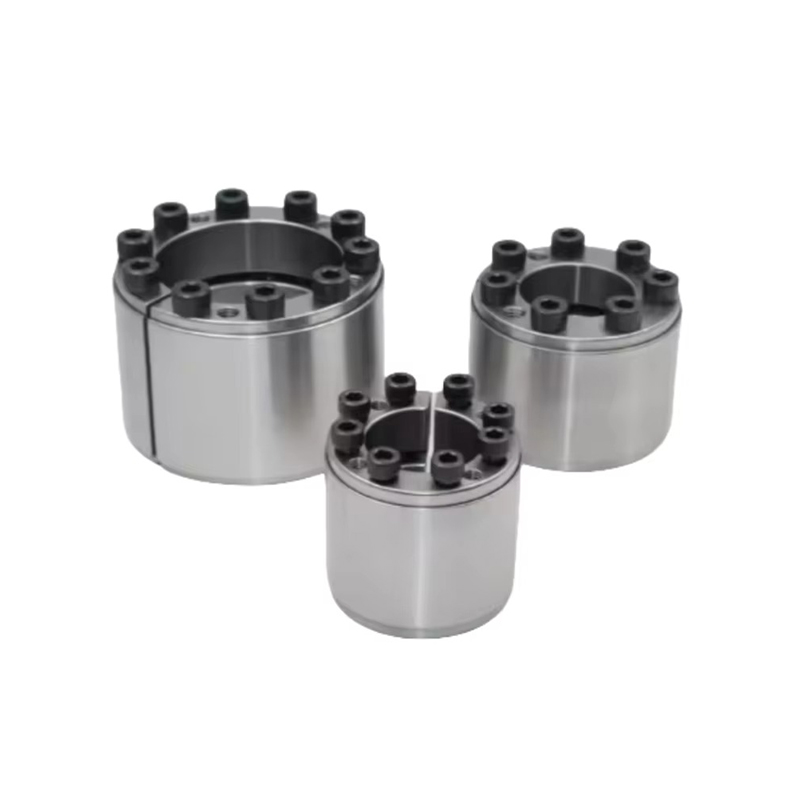

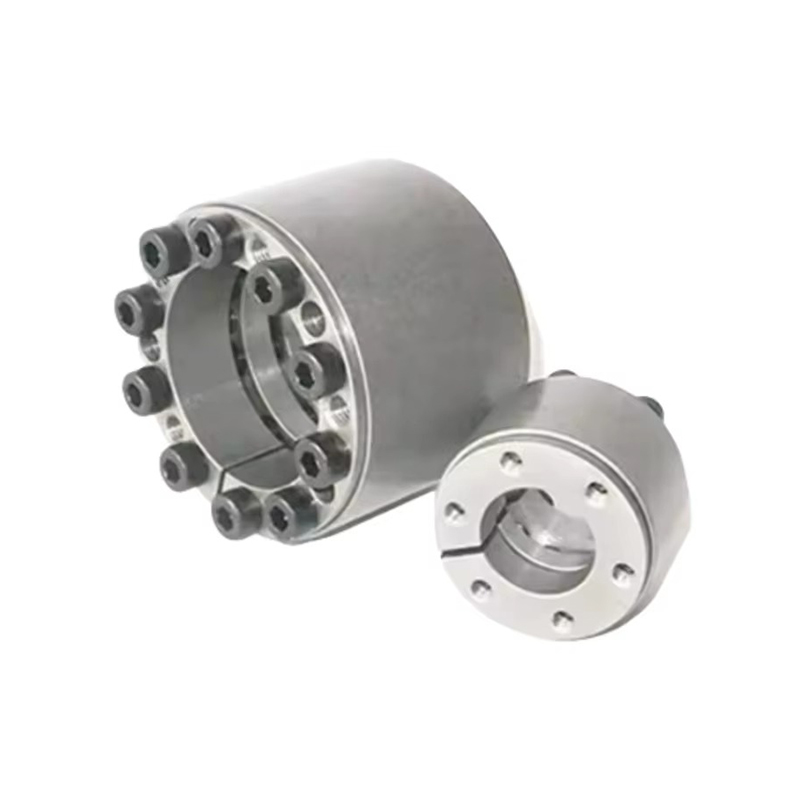

Z12A Ultra High Torque Expansion Sleeve with Steel Construction High Rigidity Strong Stability and Impact Resistance

Home / Products / Expansion Sleeves / Z12A Ultra High Torque Expansion Sleeve with Steel Construction High Rigidity Strong Stability and Impact Resistance
Z12A Ultra High Torque Expansion Sleeve with Steel Construction High Rigidity Strong Stability and Impact Resistance

Z12A Ultra High Torque Expansion Sleeve with Steel Construction High Rigidity Strong Stability and Impact Resistance

Contact Us
  • Specification
  • Describe
Specification

Size (mm) Dimensions (mm) Rated load Contact pressure (MPa) Locking screw Weight (Approx. kg)
L1 L2 Axial (kN) Torque (N·m) Shaft (MPa) Hub (MPa) Tightening (N·m)
25×50×40 32 46 65 810 288 98 17 0.85
25×55×40 32 46 65 950 288 102 17 0.35
28×55×40 32 46 78 970 261 98 17 0.4
30×55×40 32 46 85 1100 247 98 17 0.5
38×75×54 44 62 145 2790 263 117 41 1.54
42×75×54 44 62 151 3020 293 121 41 1.29
45×75×54 44 62 151 3150 248 116 41 1.15
48×75×64 56 72 159 3890 261 96 41 1.3
50×80×64 56 72 163 4110 156 97 41 1.26
55×80×64 56 72 193 4320 167 94 41 1.46
60×90×64 56 72 211 6130 160 109 41 1.55
65×115×78 70 88 314 11730 184 117 83 2.9
70×115×78 70 88 340 11940 159 104 83 3
75×120×78 70 88 392 16400 166 130 83 3.4
85×125×78 70 88 400 16500 175 119 83 3.7
95×135×78 70 88 412 19000 160 112 83 5
100×145×100 90 112 559 27200 165 113 145 6
115×155×100 90 112 593 37900 163 111 145 6.4
120×180×100 90 132 666 59900 153 119 230 10
130×185×116 104 130 783 60900 171 126 230 10
140×210×116 104 130 901 85200 160 122 355 12.4
160×235×146 134 162 1257 107000 146 118 355 15.7
170×235×146 134 162 1393 136000 153 111 355 19.6
190×250×146 134 162 1440 198000 150 104 355 21.5
200×260×146 134 162 1640 232000 150 116 355 30
220×285×146 134 162 1760 283000 150 112 690 33
260×325×166 165 197 2560 358000 139 125 690 49.8
300×375×177 165 197 2960 446000 157 116 690 50
