High-Precision Clamping Coupling for Shaft Connection

Home / Products / DIN Couplings / High-Precision Clamping Coupling for Shaft Connection
  • Specification
  • Describe
Specification

Structural dimensions Rated Torque Max Torque Specifications Dimensions (mm)

Moment of inertia

J kgm²

Product Code Weight (kg)

D1 Max

Critical mating surface

D2 Max

Slide Key

D2 Max

Clamping interface

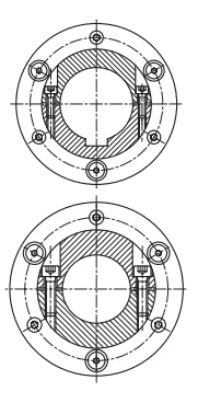

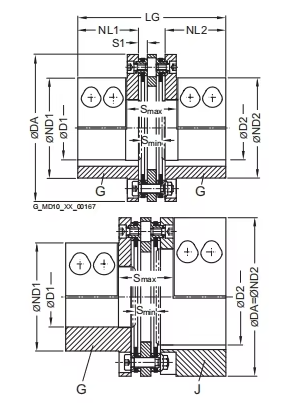

ND1 ND2 NL1/NL2 S1

Wheelbase

Min

Wheelbase

Max

LG
84-6 120 12500 GG 25 25 25 50 50 40 6 16 39 99 0.0013 2LC0420-0AB99-0AA0 1.7
GJ 40 48 84 0.0021 2LC0420-0AC99-0AA0 2.1
111-6 190 9450 GG 48 48 48 76 76 40 6 16 39 99 0.0033 2LC0420-1AB99-0AA0 2.9
GJ 65 65 111 0.0067 2LC0420-1AC99-0AA0 3.6
132-6 350 7950 GG 52 52 52 90 90 55 8 18.5 45 134 0.011 2LC0420-2AB99-0AA0 5.7
GJ 75 80 132 0.0177 2LC0420-2AC99-0AA0 7
147-6 500 7100 GG 60 60 60 105 105 65 8 18.5 45 154 0.0199 2LC0420-3AB99-0AA0 8.3
GJ 85 85 147 0.0294 2LC0420-3AC99-0AA0 10.4
171-6 900 6100 GG 70 70 70 122 122 75 9 22.5 56 179 0.0395 2LC0420-4AB99-0AA0 13.3
GJ 100 100 171 9 0.0639 2LC0420-4AC99-0AA0 16.4
182-6 1450 5750 GG 70 70 70 126 126 85 11 29 71 205 0.0649 2LC0420-5AB99-0AA0 17.9
GJ 100 110 182 11 0.1005 2LC0420-5AC99-0AA0 20.5
202-6 2150 5200 GG 75 75 75 138 138 85 11 29 71 205 0.0986 2LC0420-6AB99-0AA0 21.9
GJ 115 125 202 11 0.1519 2LC0420-6AC99-0AA0 25.6
218-6 3200 4800 GG 90 90 90 149 149 95 14 35 86 234 0.1349 2LC0420-7AB99-0AA0 27.6
GJ 130 130 218 14 0.2495 2LC0420-7AC99-0AA0 33.2
252-6 4500 4150 GG 100 100 100 166 166 105 17 40.5 101 264 0.2924 2LC0420-8AB99-0AA0 39.8
GJ 140 150 252 17 0.4651 2LC0420-8AC99-0AA0 49.9
267-6 6100 3900 GG 110 110 100 177 177 110 17 40.5 102 275 0.3827 2LC0421-0AB99-0AA0 45.9
GJ 150 160 267 17 0.8199 2LC0421-0AC99-0AA0 58.1
