RSK-FL-RWB Low-vibration elastic sleeve pin couplings

Home / Products / Elastic Couplings / Elastic Pin Couplings / RSK-FL-RWB Low-vibration elastic sleeve pin couplings

RSK-FL-RWB Low-vibration elastic sleeve pin couplings

Contact Us
  • Specification
  • Describe
Specification

Size Rated torque buffer 80 ShoreA TKN​(Nm)

Speed

nkmax ​(rpm)

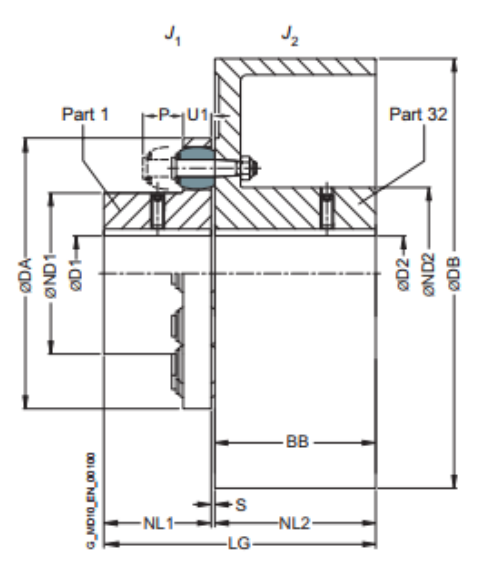

Dimensions in mm - Bore with keyway DIN 6885 - 1 Mass moment of inertia ↗Article no. ² Weight m (kg)
D1 min. D2 max. D1 min. D2 max. DA ND1 ND2 NL1 NL2/ BB S DB LG

J1​

kgm²

J2​

kgm²

144 500 4800 - 48 - 55 144 76 84 55 75 3 200 133 0.004 0.04 2LC0130 - 3AC 9.4
162 750 3800 - 55 - 60 162 85 92 60 95 3.5 250 158.5 0.007 0.11 2LC0130 - 4AC 17
178 950 3800 - 70 - 70 178 102 108 70 118 3.5 315 191.5 0.013 0.31 2LC0130 - 5AC 27
198 1300 3800 - 80 - 80 198 120 128 80 95 3.5 250 178.5 0.021 0.13 2LC0130 - 6AC 23
3000 118 3.5 315 201.5 0.32 2LC0130 - 6AC 31
228 2200 2400 - 90 - 90 228 129 140 90 150 3.5 400 243.5 0.036 1 2LC0130 - 7AC 53
252 2750 2400 - 100 38 100 252 150 160 100 150 3.5 400 253.5 0.068 1 2LC0130 - 8AC 62
1900 190 3.5 500 293.5 2.8 2LC0130 - 8AC 92
285 4300 1900 48 110 48 110 285 164 175 110 190 4.5 500 304.5 0.13 2.8 2LC0131 - 0AC 103
1500 236 4.5 630 350.5 7.8 2LC0131 - 0AC 156
320 5500 1500 55 120 55 120 320 180 192 125 236 4.5 630 365.5 0.22 7.9 2LC0131 - 1AC 170
1300 265 4.5 710 394.5 13.9 2LC0131 - 1AC 215
360 7800 1500 65 130 65 130 360 200 210 140 236 4.5 630 380.5 0.4 8.1 2LC0131 - 2AC 189
1300 265 4.5 710 409.5 14 2LC0131 - 2AC 234
