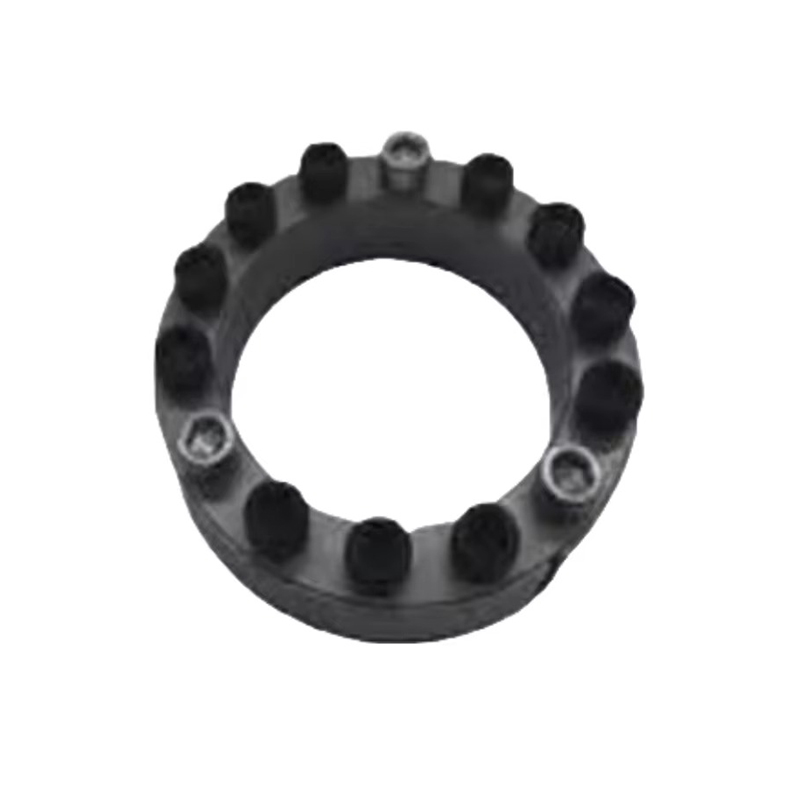

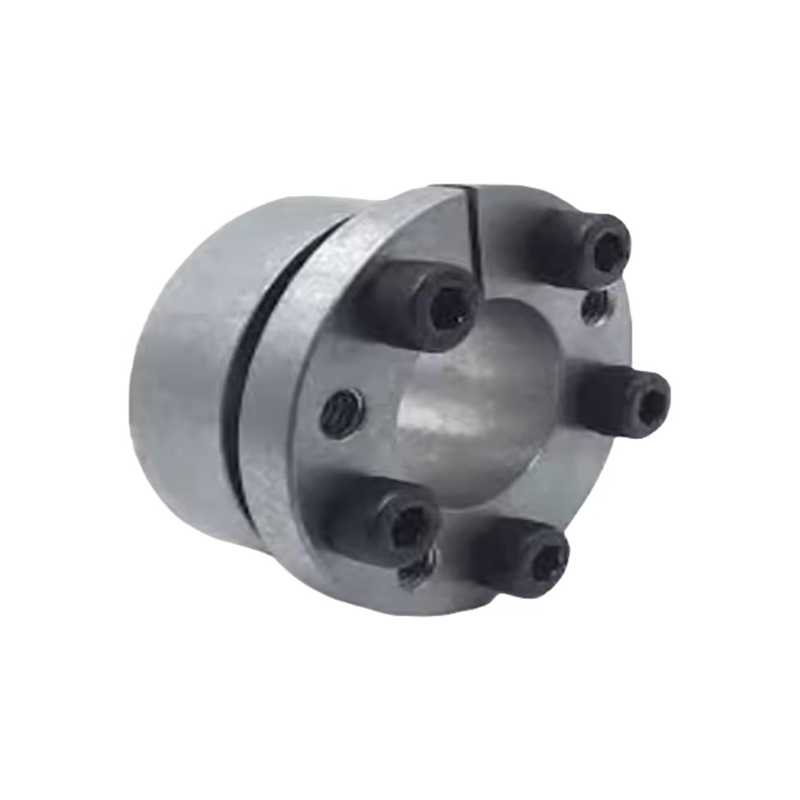

Z6 High Performance Expansion Sleeve with Ultimate Load Capacity Precision Steel and Maintenance-Free Design

Home / Products / Expansion Sleeves / Z6 High Performance Expansion Sleeve with Ultimate Load Capacity Precision Steel and Maintenance-Free Design
Z6 High Performance Expansion Sleeve with Ultimate Load Capacity Precision Steel and Maintenance-Free Design

Z6 High Performance Expansion Sleeve with Ultimate Load Capacity Precision Steel and Maintenance-Free Design

Contact Us
  • Specification
  • Describe
Specification

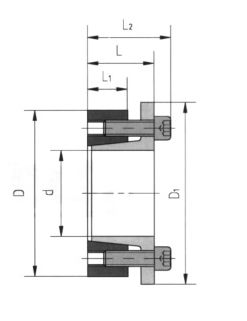

Size(mm) Dimensions (mm) Rated load Contact pressure (MPa) Locking screw Weight (Approx. kg)
L1 L2 D1 Axial (kN) Torque (N·m) Shaft (MPa) Hub (MPa) Tightening (N·m)
14×55×30 17 38 62 17 120 207 56 25 0.49
16×55×30 17 38 62 18 136 175 53 25 0.48
18×55×30 17 38 62 18 150 163 56 25 0.47
19×55×30 17 38 62 19 170 158 58 25 0.47
20×55×30 17 38 62 17 160 141 53 25 0.46
22×55×30 17 38 62 22 290 189 77 35 0.45
24×55×30 17 38 62 24 290 165 73 35 0.43
22×55×30 17 38 62 24 300 160 73 35 0.42
28×55×30 17 38 62 31 430 173 89 41 0.4
30×55×30 17 38 62 30 450 158 86 41 0.38
24×65×30 17 38 72 40 430 237 87 30 0.63
25×65×30 17 38 72 40 440 221 86 30 0.62
28×65×30 17 38 72 40 610 248 107 35 0.59
30×65×30 17 38 72 40 590 222 103 35 0.57
32×65×30 17 38 72 40 660 202 100 35 0.56
35×65×30 17 38 72 50 950 243 131 41 0.52
32×65×30 17 38 72 50 1000 218 127 41 0.49
40×65×30 17 38 72 50 1090 213 131 41 0.47
30×80×33 20 41 87 50 800 239 90 30 1.02
32×80×33 20 41 87 50 860 226 90 30 1.01
35×80×33 20 41 87 60 1100 239 105 35 0.98
38×80×33 20 41 87 60 1200 233 106 35 0.94
40×80×33 20 41 87 60 1500 203 102 35 0.91
42×80×33 20 41 87 70 1600 228 120 41 0.88
45×80×33 20 41 87 70 1600 215 121 41 0.84
48×80×33 20 41 87 70 1700 197 118 41 0.78
50×80×33 20 41 87 70 1800 195 122 41 0.74
