BJ-DT Retractable fixed ball cage type synchronous universal transmission shaft coupling

Home / Products / Rzeppa Constant Velocity Joints / Fixed Rzeppa CV Joints / BJ-DT Retractable fixed ball cage type synchronous universal transmission shaft coupling

BJ-DT Retractable fixed ball cage type synchronous universal transmission shaft coupling

PREV: BJ-DF Wear-resistant fixed ball cage type synchronous universal coupling NEXT: No next article

Specification
Describe

Specification

Model	Tn(N ·m)	Tf(N ·m)	Permissible Inter-axis Angle a		Expansion △	Moment Of Inertia JX10⁻³(kg ·m²)
			When Rotating	When Stationary		L1=1000	L1 per extension 100
BJ75DT	1520	588	14°	16°	100	16.5	0.96
BJ95DT	2500	1127	14°	16°	100	28.7	0.96
BJ125DT	5782	2744	16°	18°	100	94.5	2.1
BJ150DT	11564	4704	16°	18°	110	206	5.2

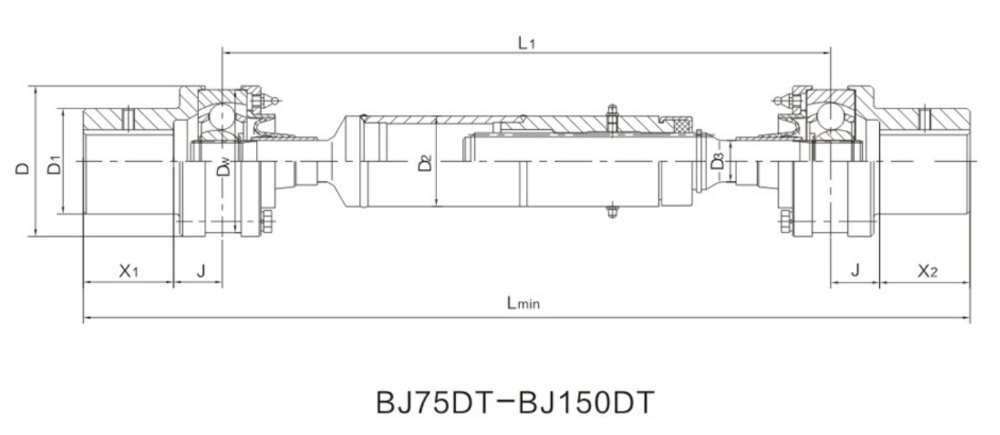

Main Dimensions (Unit: mm)

Model	Dw	D	D1	D2	D3	J	Lmin
BJ75DT	80	85	55	50	22	24.7	X1+X2+425
BJ95DT	95	100	65	60	27.5	32.4	X1+X2+465
BJ125DT	125	130	90	76	36.75	40.8	X1+X2+525
BJ150DT	146	151	105	76	46	48.6	X1+X2+565

Model	Tn(N ·m)	Tf(N ·m)	Permissible Inter-axis Angle a		Expansion △	Moment Of Inertia JX10⁻³(kg ·m²)
			When Rotating	When Stationary		L1=1000	L1 per extension 100
BJ175DT	15680	6713	16°	18°	110	352	8.5
BJ200DT	23912	11172	16°	18°	110	707	17.8
BJ225DT	29694	14700	16°	18°	140	1058	17.8
BJ250DT	42238	20678	18°	20°	140	1839	54
BJ300DT	63112	29106	18°	20°	140	3339	54

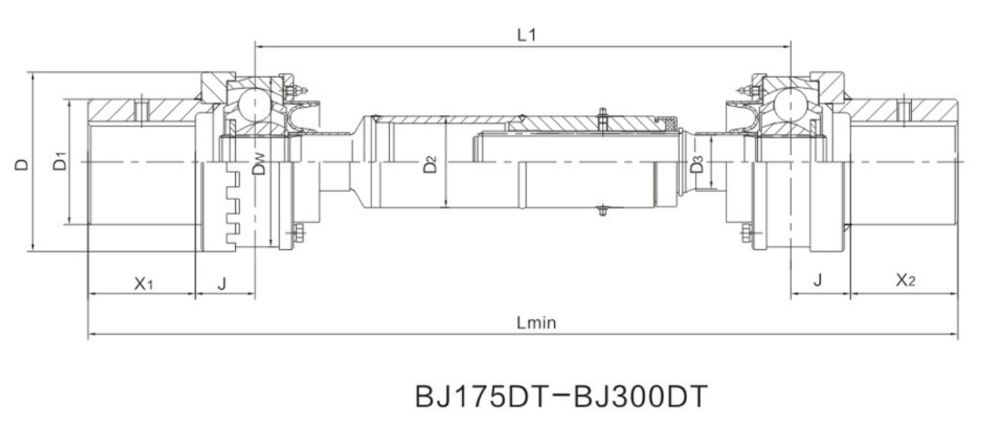

Main Dimensions (Unit: mm)

Model	Dw	D	D1	D2	D3	J	Lmin
BJ175DT	165	175	120	89	52	60.2	X1+X2+628
BJ200DT	190	200	140	102	60	65.8	X1+X2+680
BJ225DT	212	220	160	102	66	68.3	X1+X2+735
BJ250DT	230	245	180	140	76	76.3	X1+X2+755
BJ300DT	266.7	275	205	140	84	87.8	X1+X2+785

Describe

The retractable fixed ball cage type synchronous universal drive shaft coupling is a transmission component that combines innovative design and excellent performance. Its exquisite structure is composed of a star sleeve (inner raceway), a ball shell (outer raceway), a steel ball, a clamp, a dust cover and a cage. On the inner wall of the cylindrical shell and the outside of the star sleeve, the unique cylindrical straight groove design, with the steel balls precisely placed therein, combined with the stable positioning of the steel balls by the cage, and the six well-lubricated transmission steel ball raceways on the inner and outer ball seats, ensure stable and efficient power transmission.

When working, the power starts from the transmission shaft and reaches the output end smoothly through the conduction of the steel balls and the spherical shell. No matter how the angle between the shafts changes under complex working conditions, the coupling can ensure the synchronization of the input shaft and the output shaft speed with its ingenious structure to achieve smooth and accurate power transmission.

In terms of performance, it has all the advantages. High transmission efficiency is its significant highlight. The power loss changes almost linearly in the range of shaft inclination. Under normal working conditions, the transmission efficiency can reach 0.98. With excellent angular compensation capability, the angle between the two shafts can be flexibly changed from 0° to 45°, and it can cope with various installation and operation environments. At the same time, it also has good telescopic performance, which can effectively absorb the vibration and impact during the operation of the equipment and reduce system losses. In addition, the coupling rotation channel is processed with high precision, and each component is a uniform rotating body. After strict dynamic balancing experiments, high dynamic balancing accuracy is guaranteed, and the operation is stable and reliable.

In the automotive field, it is used for front-wheel drive vehicle half-axles and four-wheel drive vehicle drive shafts to ensure smooth power output; in industrial machinery, such as machine tools, heavy machinery, etc., it provides solid support for the stable operation of equipment. With its compact structure, easy installation, good sealing, and long life, the retractable fixed ball cage type synchronous universal drive shaft coupling has become an ideal choice for power transmission in many industries.
