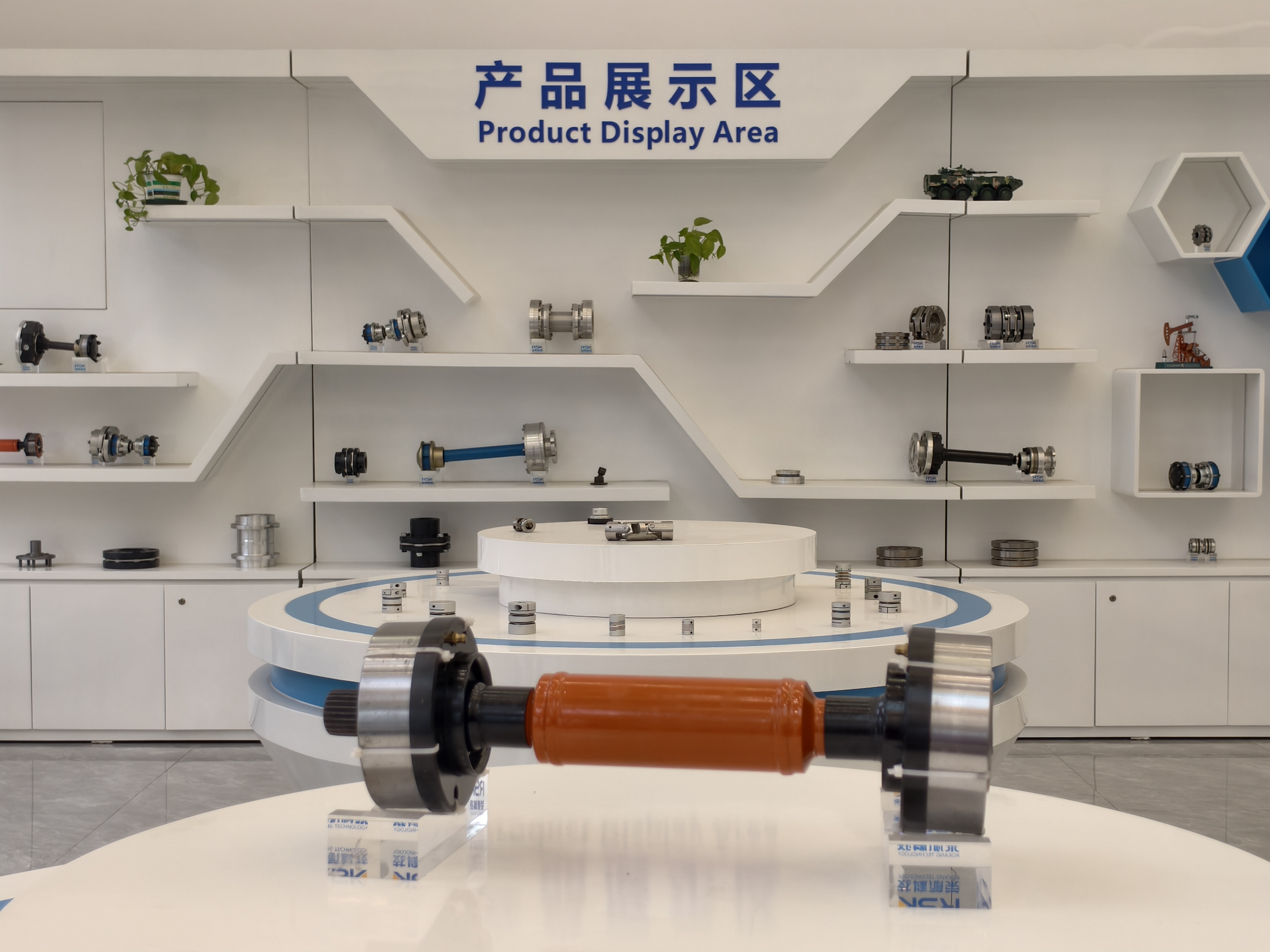

BJ-DF RSK Manufacturing fixed CV Joint for Industry -Jiangsu Rokang Heavy Industry Technology Co., Ltd.

Specification

Operating angle≤18°

Allowable expansion±12~±35

Fundamental Specifications：

Type	Diagram	Nominal Torque (N·m)	Fatigue Torque (N·m)	Allowable Operating Angle		The expansion Δ	The Moment of Inertia GD³ J × 10^-3 (kg·m²)
				Allowable Operating Angle			L=500	L=1000	Every 100 more of the length
				In rotation	At rest		Solid Shaft	Hollow Shaft	Solid Shaft	Hollow Shaft
BJ75DF	Figure 1	1520	588	14°	16°	±12	8.67	15.8	0.12	0.96
BJ95DF	Figure 1	2500	1127	14°	16°	±16	21.0	27.6	0.25	0.96
BJ125DF	Figure 1	5782	2744	16°	18°	±20	76.3	91	0.79	2.1
BJ150DF	Figure 1	11564	4704	16°	18°	±24	160	197	1.93	5.2
BJ175DF	Figure 2	15680	6713	16°	18°	±27	273	330	2.80	8.5
BJ200DF	Figure 2	23912	11172	16°	18°	±29	551	660	5.50	17.8
BJ225DF	Figure 2	29694	14700	16°	18°	±29	904	1010	7.40	17.8
BJ250DF	Figure 2	42238	20678	18°	20°	±30	1400	1700	12.6	54
BJ300DF	Figure 2	63112	29106	18°	20°	±35	2860	3200	20.2	54

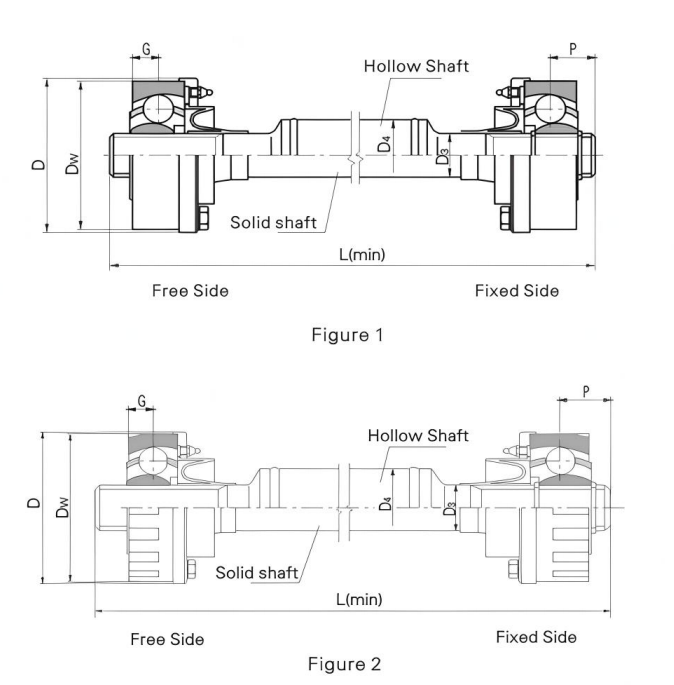

The main dimensions：

Type	Diagram	Dw	D	G	P	Solid Shaft D3	Hollow Shaft D4	L(min)
Type	Diagram	Dw	D	G	P	Solid Shaft D3	Hollow Shaft D4	Solid Shaft	Hollow Shaft
BJ75DF	Figure 1	80	85	12.2	16	22	50	145	505
BJ95DF	Figure 1	95	100	15.9	21	27.5	50	190	505
BJ125DF	Figure 1	125	130	20.3	29	36.75	60	250	605
BJ150DF	Figure 1	146	151	24.1	28	46	76	250	705
BJ175DF	Figure 2	165.1	170	25.4	38	52	89	300	805
BJ200DF	Figure 2	190	196	30	40	60	102	335	805
BJ225DF	Figure 2	212	218	32.5	48	66	102	375	805
BJ250DF	Figure 2	230	238	37.5	53	76	140	395	805
BJ300DF	Figure 2	266.7	273	42	65	84	140	445	805

The characteristic and usage

The adjustment of the installing distance and the axial expansion are realized through the sliding spline fit in the universal joint.

It is mainly used for the driving of the pinch roll, scrubbing roll sealing roll ,finishing tension roll and squeezing roll on the metallurgical equipment.

The symbolizing example:BJ125DF1000

BJ: BJ Type

125: The specification is 125

DF: DF Type

1000: The length is 1000

Describe

RSK fixed CV Joint (ball cage constant velocity joint) is a high-performance transmission component specially designed to meet the needs of harsh working conditions. Its structural design is precise and mainly consists of a ball cage outer ring, a star-shaped inner ring, a cage and a force-transmitting steel ball. The ball cage outer ring and the star-shaped inner ring are firmly connected to the driving and driven shafts respectively. The centers of the force-transmitting steel balls are located in the plane passing through the center of the coupling and are placed in the raceway composed of the outer spherical grooves of the spherical outer ring and the outer spherical grooves of the star-shaped inner ring. The centers of the two spherical surfaces coincide with the center of the universal coupling, ensuring the accuracy and stability of the operation.

In terms of working principle, in order to ensure that the centers of all steel balls are always on the bisector of the angle between the two shaft axes, the steel balls are installed in the window of the cage. In this way, when the angle between the driving and driven shafts of the coupling changes, the force transmission point can continue to be on the bisector of the angle, so that the speed between the driving and driven shafts remains synchronized, achieving stable and efficient power transmission.

This product has excellent performance in wear resistance. Key components are made of high-strength wear-resistant steel, and are processed by advanced processes such as precision forging and cold extrusion to ensure the stability of the internal steel structure and greatly improve the wear resistance of the material. At the same time, the surface is specially treated with anti-corrosion to further enhance the product's ability to resist erosion in harsh environments and significantly extend its service life.

It has a wide range of application scenarios, especially in the automotive, metallurgical, light industry, heavy machinery and other industries, where shaft transmission under conditions of large inclination angles and restricted radial dimensions can provide reliable power connection and transmission guarantees for various types of mechanical equipment.
