Heavy-Duty Chain Couplings for Low-Speed Power Transmission

Contact Us
  • Specification
  • Describe
Specification

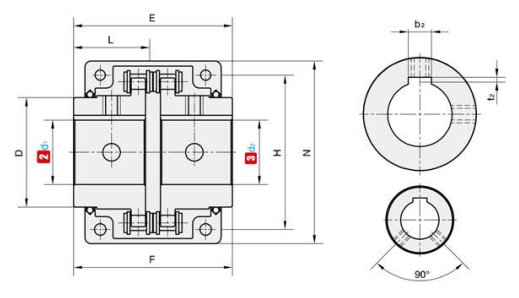

①NO.

②d₁③d₂

(Optional scope)

D L E N F H Weight (g)
CPAM4012 11月22日 35 36 80 75 75 61 1.1
CPAM4016 15 - 30 50 36 80 92 75 77 1.8
CPAM5016 15 - 40 60 45 100 111 85 96 3.2
CPAM5018 19 - 45 70 45 100 122 85 106 4.2
CPAM6018 22 - 45 85 54 120 142 106 128 7.2
CPAM6022 25 - 75 110 54 120 167 106 152 11
CPAM8018 30 - 78 115 67 150 186 130 170 16.2
CPAM8022 35 - 95 140 67 150 220 130 202 22.6
CPAM10020 35 - 110 160 91 201 248 152 228 37.6
CPAM12018 48 - 120 170 119 261 305 180 252 56.6
CPAM12022 58 - 150 210 119 261 355 180 300 73.1
