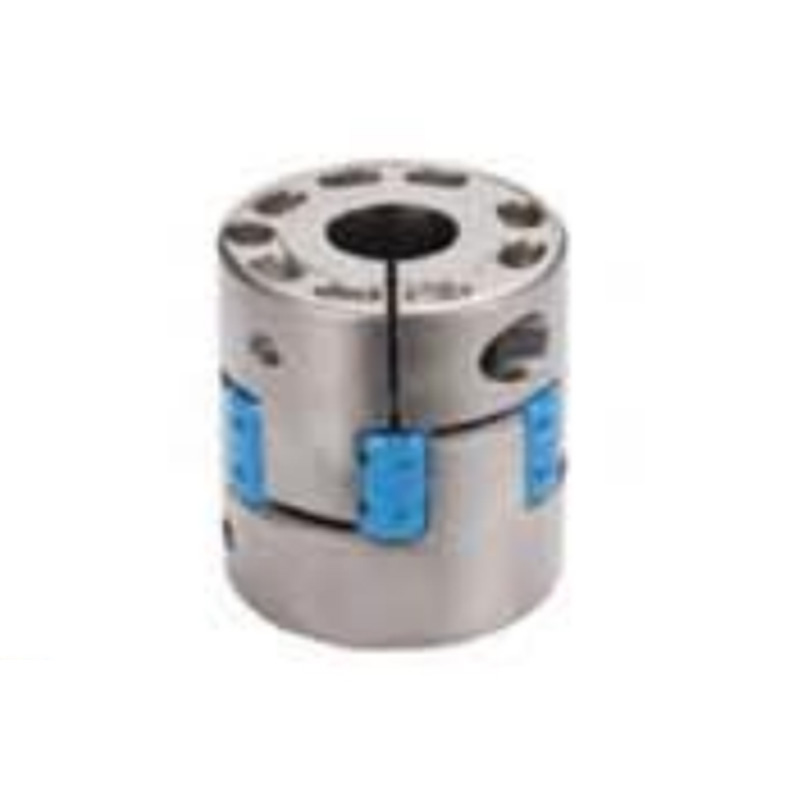

Aluminum alloy high-rigidity plum blossom couplings

Home / Products / Elastic Couplings / Jaw Couplings / Aluminum alloy high-rigidity plum blossom couplings
  • Specification
  • Describe
Specification

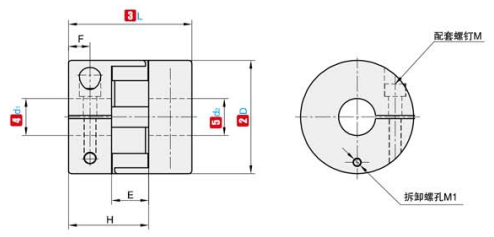

①NO. ②D ③L

④d₁⑤d₂

(Optional scope)

E F H M Fastening screw torque (N·m)
CPFJC 55 60 8、10、12、12.7、14、15、16、17、18、19、20、22、24、25、28、30、32 18 15 39 M6 8
70 75 14、15、16、17、18、19、20、22、24、25、28、30、32、35、38、40 23 16 49 M8 20
95 100 19、20、22、24、25、28、30、32、35、38、40、42、45、50、55 29 18 64.5 M10 40

①NO. ②D ③L Rated torque Permitted eccentricity Permissible angle deviation Permissible axial deviation Permissible rotational speed Static reversal stiffness Moment of inertia Weight
(N·m) (mm) (°) (mm) (rpm) (N·m/rad) (kg·m²) (g)
CPFJC 55 60 45 0.1 1 ±0.2 7500 7500 1.0×10⁻⁴ 311
70 75 110 ±0.5 5500 8500 3.8×10⁻⁴ 555
95 100 200 ±0.8 4000 18000 1.0×10⁻³ 1180

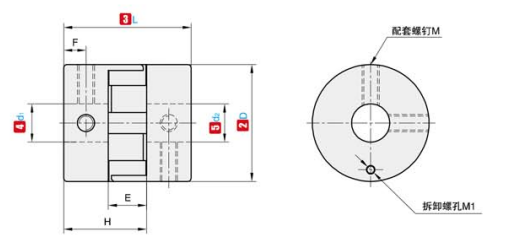

①NO. ②D ③L

④d₁⑤d₂

(Optional scope)

E F H M Fastening screw torque (N·m)
CPFJ 55 60 8、10、12、12.7、14、15、16、17、18、19、20、22、24、25、28、30、32 18 15 39 M6 8
70 75 14、15、16、17、18、19、20、22、24、25、28、30、32、35、38、40 23 16 49 M8 20
95 100 19、20、22、24、25、28、30、32、35、38、40、42、45、50、55 29 18 64.5 M10 40

①NO. ②D ③L Rated torque Permitted eccentricity Permissible angle deviation Permissible axial deviation Permissible rotational speed Static reversal stiffness Moment of inertia Weight
(N·m) (mm) (°) (mm) (rpm) (N·m/rad) (kg·m²) (g)
CPFJ 55 60 45 0.1 1 ±0.2 8000 7500 1.0×10⁻⁴ 320
70 75 110 ±0.5 8000 7800 3.8×10⁻⁴ 560
95 100 200 ±0.8 5500 17500 1.0×10⁻³ 1220
