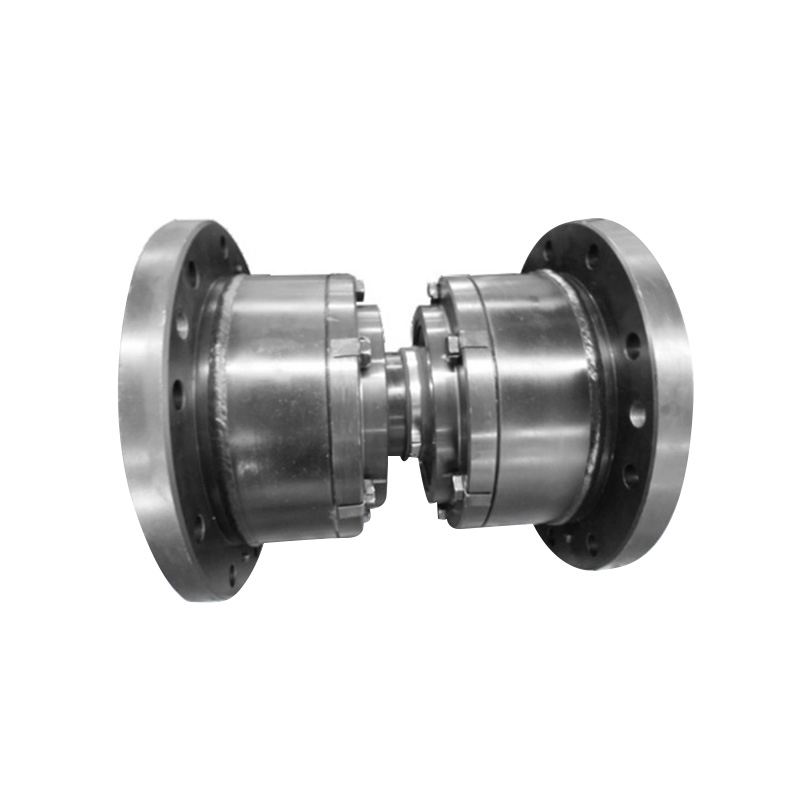

BHJ-F High-stability telescopic lantern-type synchronous universal couplings

Home / Products / Rzeppa Constant Velocity Joints / Plunge Rzeppa CV Joints / BHJ-F High-stability telescopic lantern-type synchronous universal couplings

BHJ-F High-stability telescopic lantern-type synchronous universal couplings

Contact Us
  • Specification
  • Describe
Specification

Model Tn(N·m) Tf(N·m) Maximum inter-axis angle a Expansion
BHJ225F 24800  9000  12° ±25
BHJ250F 37500  13700  10° ±30
BHJ285F 44000  16000  10° ±30
BHJ300F 58000  21000  10° ±30
BHJ315F 80000  29000  10° ±35
BHJ350F 109000  40000  10° ±35
BHJ390F 150000  66500  10° ±38
BHJ440F 210000  84000  +30
-50
BHJ490F 320000  160000  ±45
BHJ550F 390000  195000  +40
-60

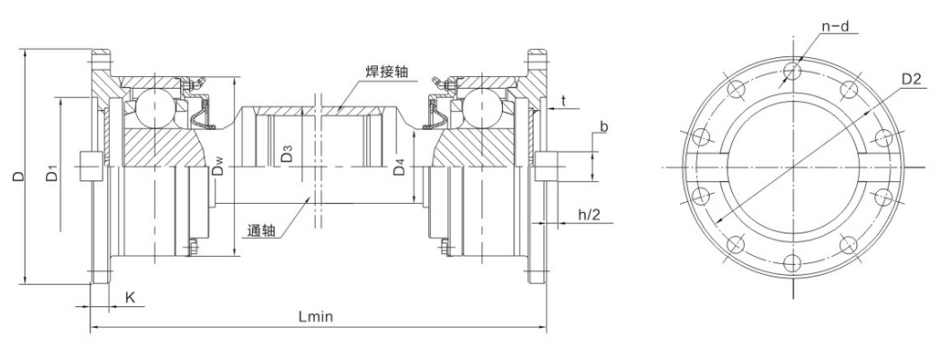

Model Dw D D1 D2 Welded Shafts
D3
Through-axis
D4
K t b h/2 n-d Lmin
BHJ225F 160  225  135 +0.10 196  102  68  20  32  8-17 280
BHJ250F 180  250  150 +0.10 218  114  70  25  40  12.5  8-19 320
BHJ285F 200  285  170 +0.10 245  127  80  27  40  15  8-21 370
BHJ300F 220  300  195 +0.115 265  127  92  30  40  12.5  10-19 380
BHJ315F 240  315  205 +0.115 280  152  99  32  40  15  10-19 400
BHJ350F 260  350  210 +0.115 310  168  110  35  50  16  8-23 430
BHJ390F 300  390  235 +0.115 345  203  126  40  70  18  8-25 480
BHJ440F 330  440  255 +0.13 390  219  135  42  80  20  10-28 520
BHJ490F 370  490  275 +0.13 435  270  160  47  11  90  22.5  10-31 550
BHJ550F 420  550  320 +0.14 492  273  180  50  11  100  22.5  10-31 580
