RQL-D High-temperature-resistant telescopic lantern-type synchronous universal couplings

Home / Products / Rzeppa Constant Velocity Joints / Plunge Rzeppa CV Joints / RQL-D High-temperature-resistant telescopic lantern-type synchronous universal couplings

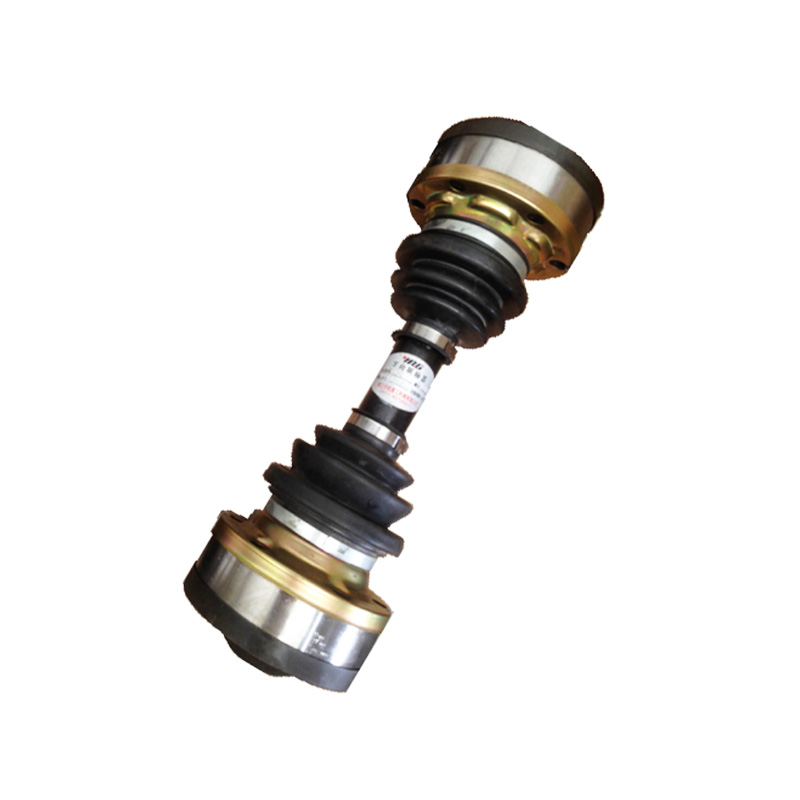

RQL-D High-temperature-resistant telescopic lantern-type synchronous universal couplings

Contact Us
  • Specification
  • Describe
Specification

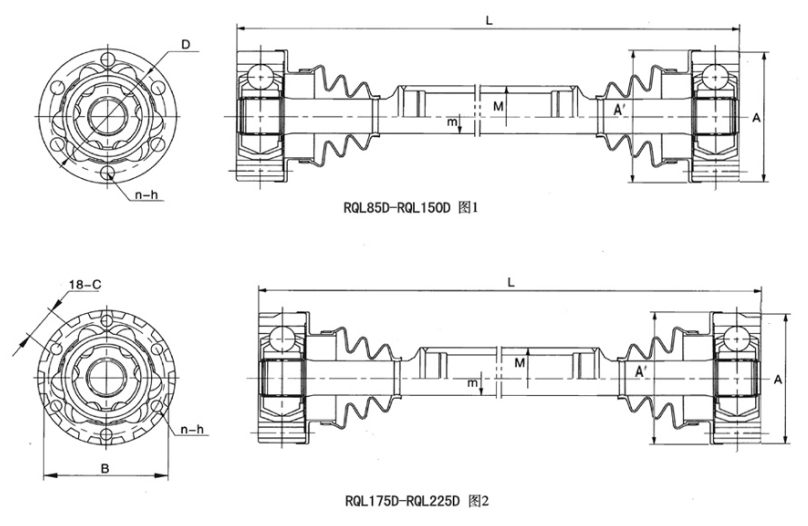

Model Legend  A A' External Teeth  Bolt Holes m M L(min)
B C D(js11) n-h Through-axis Welded Shafts Through-axis Welded Shafts
RQL85D 86 -0.046 88  74  6-8.5 25  50  220  400
RQL95D 100 -0.054 103  86  6-8.5 30  50  250  450
RQL105D 108 -0.054 111  94  6-10.5 35  50  250  505
RQL125D 128 -0.063 132  108  6-12.5 40  60  300  605
RQL150D 146 -0.063 151  124  6-12.5 50  76  350  705
RQL175D 168 -0.100  172  158.5  42.4 -0.15 140  6-15.5 55  89  300  808
RQL200D 192 -0.115 196  180  16.25 -0.15 159  6-15.5 65  102  335  805
RQL225D 215 -0.115 220  203  54.7 -0.15 180  6-15.5 70  102  375  805

Model
Permissible Speed
rpm
Permissible Angle Tower Seal Expansion Maximum Permissible Torque
N ·m
Moment Of Inertia (kg m²) Weight (kg)
L=500 100 per extension of L mm L=500 100 per extension of L mm
When Stationary When Rotating 20° Dynamic Torque  Static Torque  Through-axis Welded Shafts Through-axis Welded Shafts Through-axis Welded Shafts Through-axis Welded Shafts
RQL85D 2000  25° 20° ±20 ±12 620  1600  2.6×10-³ 2.9×10-³ 0.03×10-³ 0.28×10-³ 3.8  4.1  0.39  0.55
RQL95D 2000  25° 20° ±25 ±15 1160  2700  5.7×10-³ 6.1×10-³ 6.1×10-³ 0.28×10-³ 5.9  6.3  0.56  0.55
RQL105D 2000  25° 20° ±25 ±15 1700  3500  5.7×10-³ 6.1x10-³ 6.1×10-³ 0.28×10-³ 59  6.3  0.56  0.55
RQL125D 2000  25° 20° ±35 ±20 2750  5780  19×10-³ 19.5x10-³ 19.5×10-³ 0.52×10-³ 12  12.5  0.99  0.68
RQL150D 2000  25° 20° ±40 ±23 4800  11500  42×10-³ 43×10-³ 43×10-³ 1.28×10-³ 21  21.6  1.54  1.04
RQL175D 2000  25° 20° ±50 ±26 6800  15600  68×10-³ 71×10-³ 71×10-³ 2.13×10-³ 28  29  1.86  1.23
RQL200D 2000  25° 20* ±55 ±30 11200  23500  139×10-³ 140×10-³ 140×10-³ 4.12×10-³ 42  44  2.60  1.85
ROL225D 2000  25° 20° ±60 ±34 14700  29000  230×10-³ 232×10-³ 232×10-³ 4.86x10-³ 55  461  3.02  2.27
