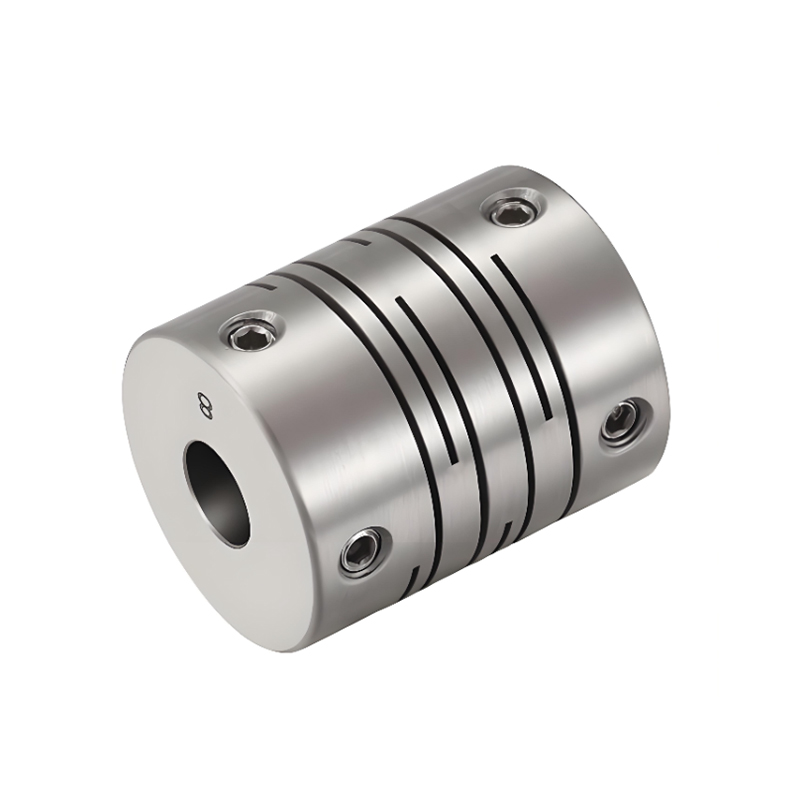

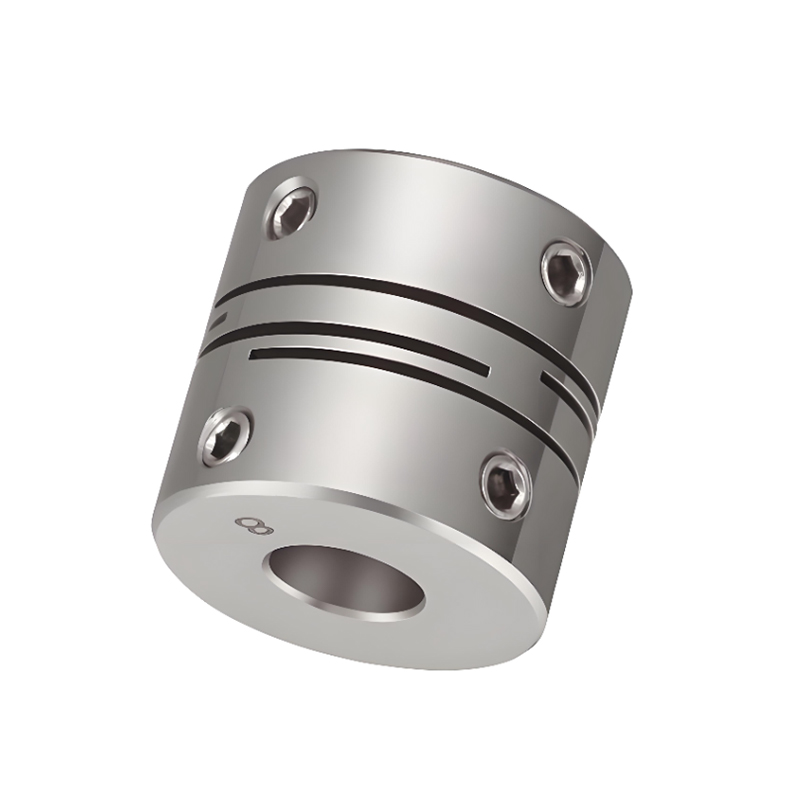

RSK-CPPG High Rigidity Stainless Steel Parallel Line Shaft Coupling Positioning Screw type

Contact Us
  • Specification
  • Describe
Specification

>Integrated structure,with 304 Stainless steel

>Stainless steel material has corrosion resistance

>The gap-free shaft and shaft sleeve connection is suitable for forward and reverse rotation

>For encoder / step motor

>Tightening method of positioning screw

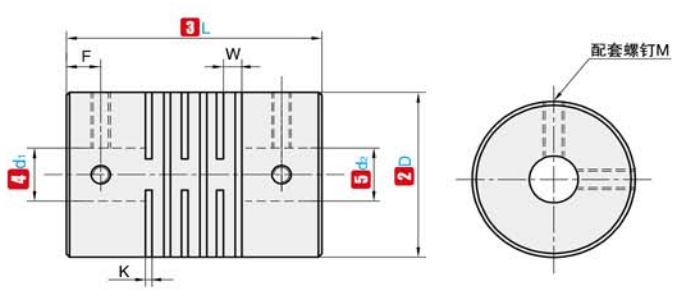

Code name

D

L

 Standard Inner Diameter(mm)

K

W

F

M

Torque tightening(N.m)

RSK-CPPG













16

17.4

3  4  5  6

0.55

1.18

3.0

M3

0.8

19

20

3  4  5  6  6.35  7  8

0.55

1.18

3.4

M3

0.8

24

25

   4  5  6  6.35  7  8  9         10  11

0.55

1.49

3.78

M4

1.2

29

30

      5  6  6.35  7  8  9  9.525  10  11  12  12.7

0.55

1.81

4.5

M5

5

34

35

                     8  9  9.525  10  11  12  12.7  14  15  16

0.8

2.09

5.1

M5

5

39

40

                     8  9  9.525  10  11  12  12.7  14  15  16  18  19

0.8

2.34

7.0

M5

5

44

45

                     8  9  9.525  10  11  12  12.7  14  15  16  18  19  20

0.8

2.54

7.75

M6

8

 Note: The inner holes at both ends of the coupling can be freely combined with the minimum and maximum inner diameters. The inner diameter sizes marked in the table are for reference only. The hole diameter required by the customer is also for reference only. For the hole diameter required by the customer, please contact us.

Code name

D

L

Rating torque(N.m)

Allow bias(mm)

Allow tilt(∠°)

Allow axial deviation(mm)

Allow RPM

Static torsional stiffness(N.m/rad)

 Moment of inertia(N.m)

Weight(g)

RSK-CPPG













16

17.4

2

0.05

0.5

±0.10

24000

200

2.8x10-5

25

19

20

4

0.05

0.5

±0.10

24000

270

6.2x10-5

40

24

25

6

0.05

0.5

±0.10

24000

790

2.0x10-5

75

29

30

8

0.05

0.5

±0.10

24000

1400

5.2x10-5

145

34

35

12

0.05

0.5

±0.10

24000

2200

1.1x10-4

200

39

40

15

0.05

0.5

±0.10

24000

4100

2.3x10-4

250

44

45

23

0.05

0.5

±0.10

24000

5100

4.3x10-4

365

Note: The above inertial torque and technical parameters are measured by the standard of maximum aperture. The maximum rated torque value is related to the durability of the coupling itself. The larger the outer diameter, the greater the force, and the smaller the outer diameter, the higher the allowable speed.
