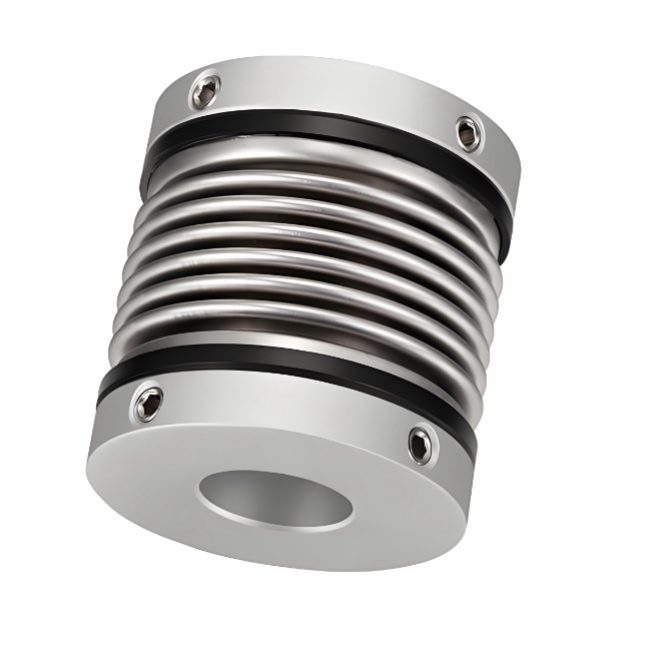

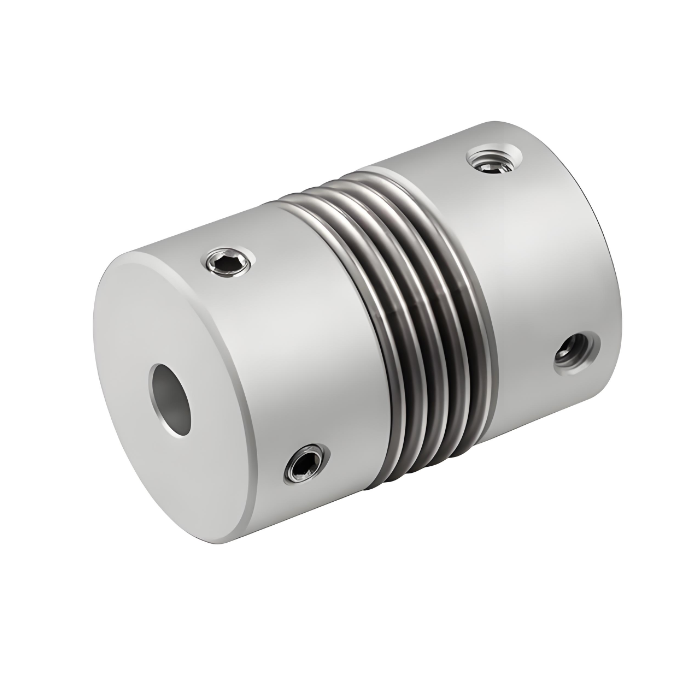

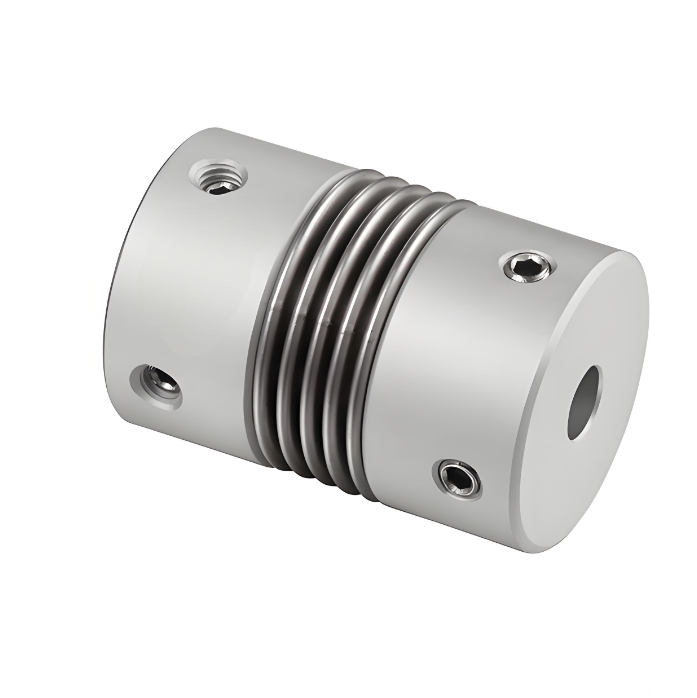

RSK-CPR Aluminum Alloy Bellows Couplings Positioning Screw type compensates radial angular and axial deviations more effectively

Contact Us
  • Specification
  • Describe
Specification

>Shaft sleeve material is aluminum alloy,middle bellows is stainless steel material very good corrosion resistance

>Zero backlash,suitable for forward and reverse rotation

>The bellows structure compensates radial,angular and axial deviations more effectively

>Specially designed for micro motors and encoders

>Tightening method of positioning screw

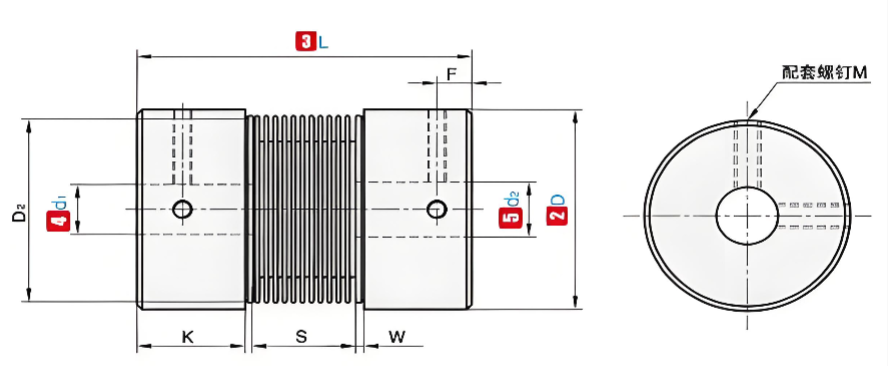

P/N

ΦD

L

  Standard Inner Diameter(mm)

K

W

S

D₂

F

M

Torque tightening(N.m)

RSK-CPR











16

27

4-5-6-6.35-7-8

7.5

2

8

13.5

3

M3

1.2

20

32

5-6-6.35-7-8-9-9.525

7.2

2.8

12

18

3.5

M3

1.2

22.5

34

5-6-6.35-7-8-9-9.525-10-11-12

8.05

2.8

12.3

20.2

3.6

M4

2.5

25

37

6-6.35-7-8-9-9.525-10-12

9.5

3

12

20.2

4.5

M4

2.5

32

42

8-9-10-11-12-12.7-14-15

8

4

18

27.2

4.5

M5

5

40

51

8-9-9.525-10-11-12-12.7-14-15-16-17-18-19-20

9.5

6

20

34.5

5.5

M5

5

Note: The inner holes at both ends of the coupling can be freely combined with the minimum and maximum inner diameters. The inner diameter sizes marked in the table are for reference only. The hole diameter required by the customer is also for reference only. For the hole diameter required by the customer, please contact us.

P/N

ΦD

L

Rating torque(N.m)

  Allow bias(mm)

Allow tilt(∠°)

Allow axial deviation(mm)

Allow RPM

Static torsional stiffness(N.m/rad)

 Moment of inertia(N.m)

Weight(g)

RSK-CPR











16

27

0.8

0.1

2

+0.3

-1.0

20000

150

7.9X10⁻⁷

8

20

32

1.5

0.1

2

+0.3

-1.0

18000

220

2.0X10⁻⁶

13

22.5

34

1.8

0.15

2

+0.3

-1.0

16000

300

6.2X10⁻⁶

22

25

37

2.0

0.15

2

+0.5

-1.3

15000

330

6.7X10⁻⁶

30

32

42

2.5

0.2

2

+0.5

-1.3

11000

490

2.0X10⁻⁵

53

40

51

10

0.2

2

+0.5

-1.3

10000

530

2.1X10⁻⁵

85

Note: The above inertial torque and technical parameters are measured by the standard of maximum aperture. The maximum rated torque value is related to the durability of the coupling itself. The larger the outer diameter, the greater the force, and the smaller the outer diameter, the higher the allowable speed.
