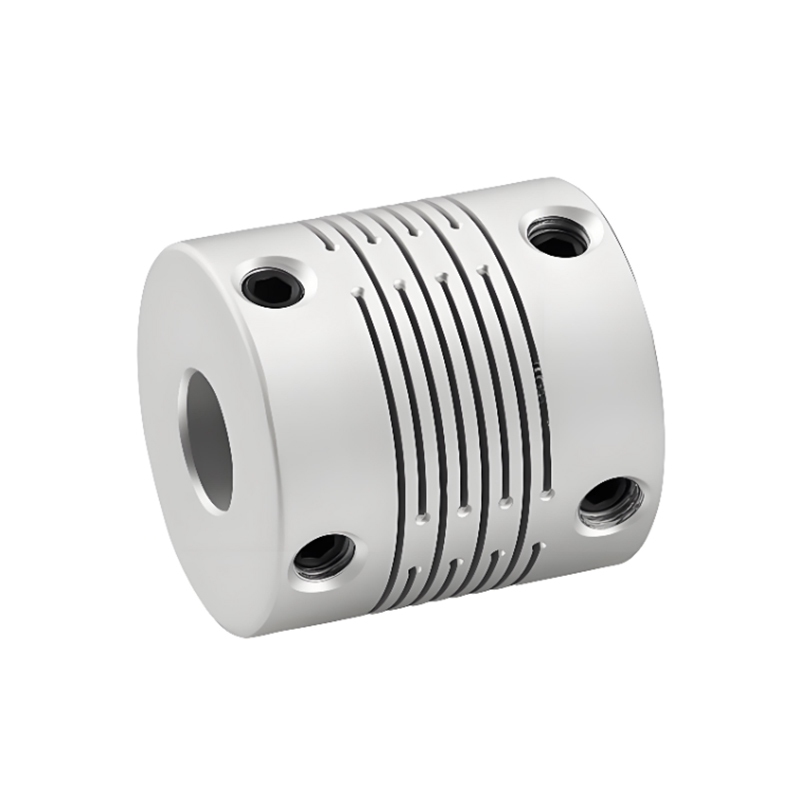

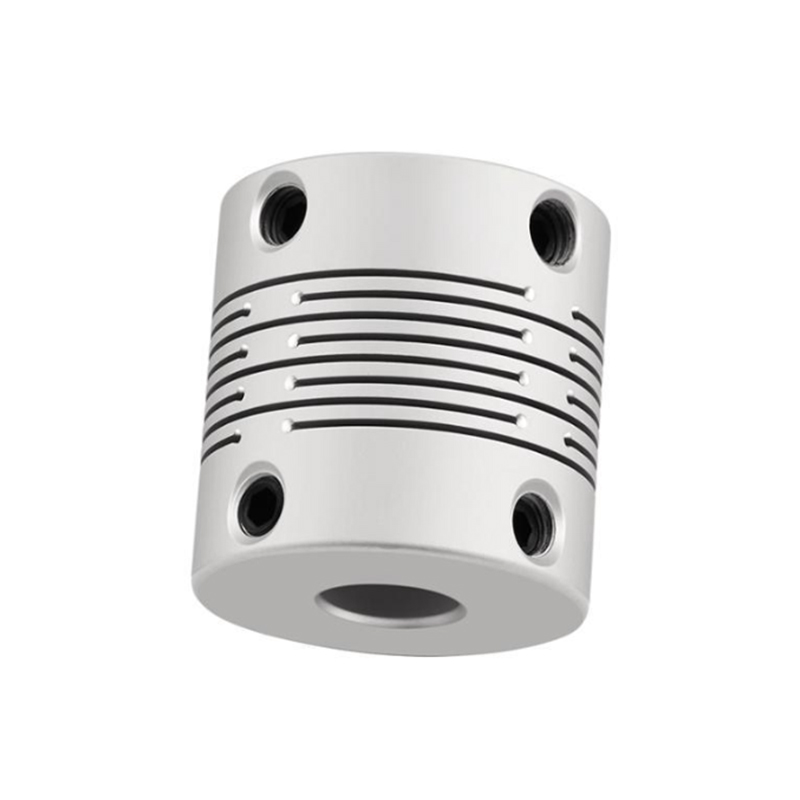

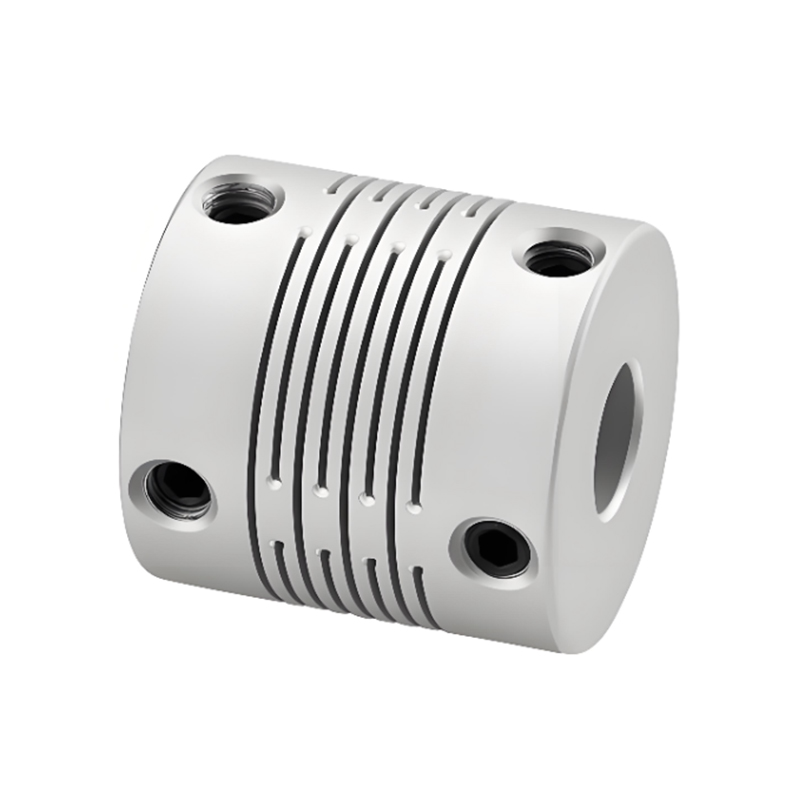

RSK-CPP High Rigidity Alumium Alloy Parallel Beam Shaft Coupling Positioning Screw

Contact Us
  • Specification
  • Describe
Specification

> Integrated structure, the overall use of high-strength aluminum alloy material

> Elasticity compensates radial, angular and axial deviations

> Shaft and axial connection without gaps, suitable for forward and reverse rotation

>Commonly used in servo, stepper motor

>Tightening method of positioning screw

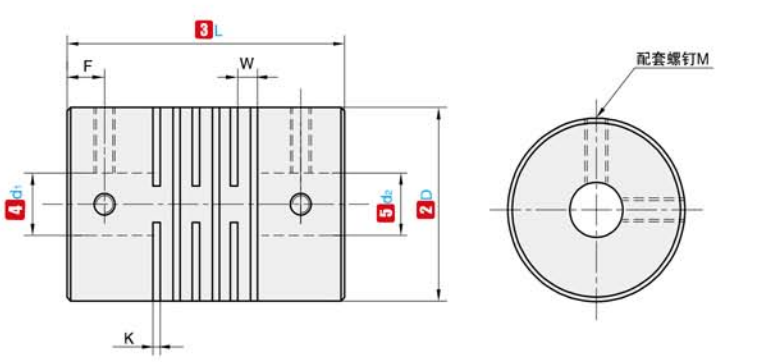

Code name

D

L

 Standard Inner Diameter(mm)

K

W

F

M

RSK-CPP









16

17.5

3  4  5  6

0.55

1.18

3.0

M3

19

20

3  4  5  6  6.35  7  8

0.55

1.18

2.3

M3

24

25

  4  5  6  6.35   7  8  9         10

0.55

1.49

4.25

M4

29

30

       5  6  6.35  7  8  9  9.525  10  11  12

0.55

1.81

5.1

M5

34

35

                       8  9  9.525  10  11  12  12.7  14  15  16

0.8

2.09

5.0

M5

Code name

D

L

Rating torque(N.m)

Allow bias(mm)

Allow tilt(∠°)

Allow axial deviation(mm)

Allow RPM

Static torsional stiffness(N.m/rad)

 Moment of inertia(N.m)

Weight(g)

RSK-CPP









16

17.5

0.75

0.05

0.5

±0.10

24000

200

2.8x10-7

7

19

20

1.5

0.05

0.5

±0.10

20000

270

6.2x10-7

10

24

25

2.2

0.05

0.5

±0.10

16000

790

2.0x10-6

22

29

30

3

0.05

0.5

±0.10

13000

1400

5.2x10-6

40

34

35

4.5

0.05

0.5

±0.10

11000

2200

1.1x10-5

64

Note: The above inertial torque and technical parameters are measured by the standard of maximum aperture. The maximum rated torque value is related to the durability of the coupling itself. The larger the outer diameter, the greater the force, and the smaller the outer diameter, the higher the allowable speed.
