BHJ-D Long-life telescopic lantern-type synchronous universal couplings

Home / Products / Rzeppa Constant Velocity Joints / Plunge Rzeppa CV Joints / BHJ-D Long-life telescopic lantern-type synchronous universal couplings
  • Specification
  • Describe
Specification

Model Tn(N·m) Tf(N·m) Maximum inter-axis angle a Expansion
BHJ180D 37500  13700  10° ±10
BHJ200D 44000  16000  10° ±10
BHJ220D 58000  21000  10° ±10
BHJ240D 80000  31000  10° ±10
BHJ260D 110000  40000  10° ±10
BHJ270D 127000  46000  10° ±10
BHJ280D 132000  51000  10° ±10
BHJ300D 150000  67000  ±15
BHJ320D 190000  84000  ±15
BHJ340D 225000  98500  ±15
BHJ355D 275000  122000  ±15
BHJ370D 295000  130000  ±20
BHJ400D 345000  152000  ±20
BHJ420D 440000  193000  ±20
BHJ445D 580000  255000  ±20
BHJ490D 658000  291000  ±20
BHJ550D 925000  410000  ±20

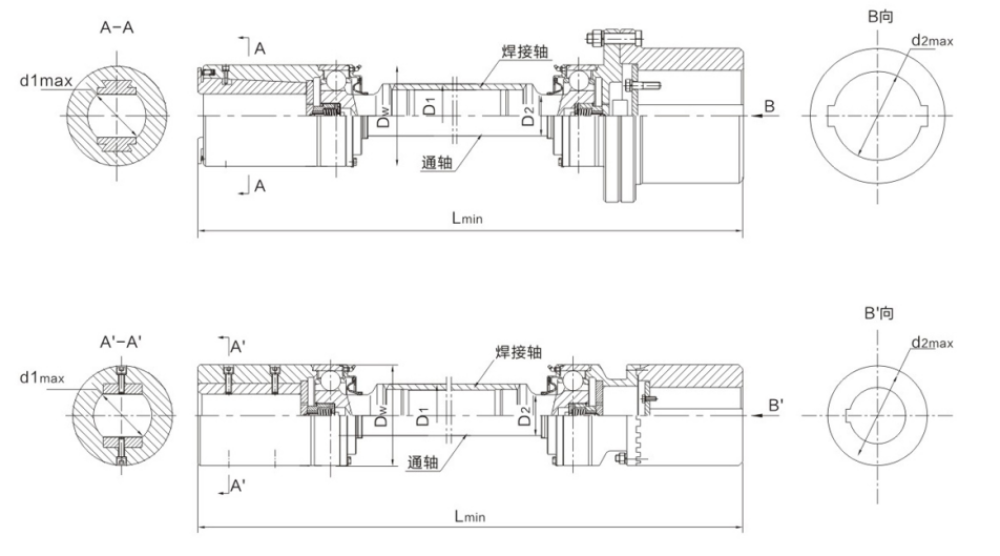

Model Dw D1 D2 d1max d2max Lmin
BHJ180D 180  112  70  95  112  600
BHJ200D 200  125  80  110  128  750
BHJ220D 220  125  92  115  142  750
BHJ240D 240  150  99  125  155  800
BHJ260D 260  166  110  140  162  1000
BHJ270D 270  178  118  150  176  1000
BHJ280D 280  178  124  160  180  1100
BHJ300D 300  200  126  170  185  1200
BHJ320D 320  216  135  185  210  1200
BHJ340D 340  242  160  200  230  1500
BHJ355D 355  242  160  210  250  1500
BHJ370D 370  270  165  225  260  1500
BHJ400D 400  270  175  245  270  1800
BHJ420D 420  322  190  265  300  1800
BHJ445D 445  322  210  280  320  2000
BHJ490D 490  402  235  300  350  2000
BHJ550D 550  500  280  365  400  2200
