BHJ-E High-temperature-resistant telescopic lantern-type synchronous universal couplings

Home / Products / Rzeppa Constant Velocity Joints / Plunge Rzeppa CV Joints / BHJ-E High-temperature-resistant telescopic lantern-type synchronous universal couplings

BHJ-E High-temperature-resistant telescopic lantern-type synchronous universal couplings

Contact Us
  • Specification
  • Describe
Specification

Model Tn(N·m) Tf(N·m) Maximum inter-axis angle a Expansion
BHJ100E 7850  1840  12° ±15
BHJ120E 11000  4000  12° ±20
BHJ150E 17400  6300  12° ±25
BHJ160E 24800  9000  12° ±25
BHJ180E 37500  13700  10° ±30
BHJ200E 44000  16000  10° +20~-40
BHJ225E 58000  21000  10° +20~-40
BHJ250E 80000  31000  10° +30~-40
BHJ285E 129000  47000  10° +30~-40
BHJ315E 150000  66500  10° +30~-45
BHJ350E 225000  98500  +30~-50
BHJ390E 312500  125000  +40~-60
BHJ440E 450000  193000  +40~-60
BHJ490E 658000  291000  +40~-60
BHJ550E 925000  410000  +50~-70
BHJ620E 1250000  550000  +50~-70

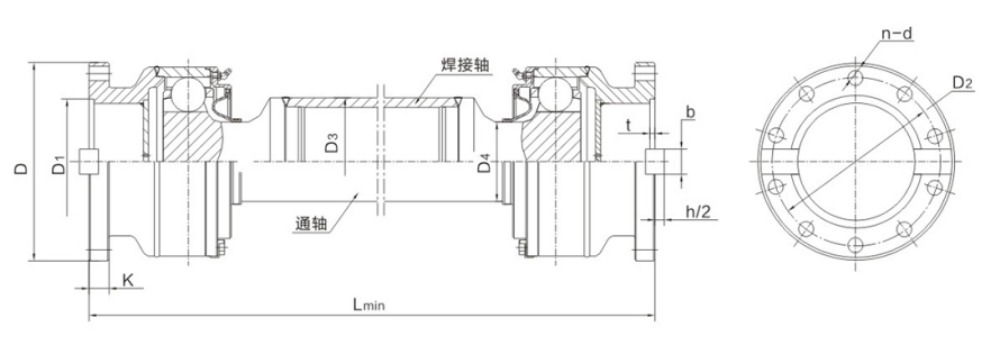

Model D D1 D2 Welded Shafts
D3
Through-axis
D4
K t b h/2 n-d Lmin
BHJ100E 100  57 +0.074 84  - 40  2.5  - - 6-9 245
BHJ120E 120  75 +0.074 102  76  47  2.5  - - 8-11 300
BHJ150E 150  90 +0.087 130  89  65  10  - - 8-13 360
BHJ160E 160  95 +0.087 140  102  68  15  - - 8-15 380
BHJ180E 180  105 +0.087 155  114  70  17  - - 8-17 400
BHJ200E 200  120 +0.087 170  127  80  18  28  8-17 430
BHJ225E 225  135 +0.1 196  127  92  20  32  8-17 440
BHJ250E 250  150 +0.1 218  152  99  25  40  12.5  8-19 480
BHJ285E 285  170 +0.1 245  203  124  27  40  15  8-21 525
BHJ315E 315  185 +0.115 280  203  126  32  40  15  10-23 525
BHJ350E 350  210 +0.115 310  245  160  35  50  16  10-23 585
BHJ390E 390  235 +0.115 345  270  175  40  70  18  10-25 660
BHJ440E 440  255+0.13 390  325  190  42  10  80  20  16-28 740
BHJ490E 490  275 +0.13 435  325  225  47  12  90  22.5  16-31 820
BHJ550E 550  320 +0.14 493  457  255  50  12  100  22.5  16-31 930
BHJ620E 620  380 +0.14 555  508  290  55  12  100  25  16-38 1040
