BHJ-M Shock-absorbing and buffered telescopic lantern-type synchronous universal couplings

Home / Products / Rzeppa Constant Velocity Joints / Plunge Rzeppa CV Joints / BHJ-M Shock-absorbing and buffered telescopic lantern-type synchronous universal couplings

BHJ-M Shock-absorbing and buffered telescopic lantern-type synchronous universal couplings

Contact Us
  • Specification
  • Describe
Specification

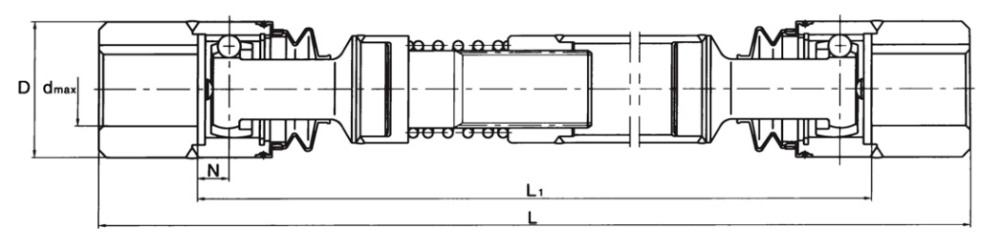

Model D N dmax L1min
BHJ28M 28  11.5  18  550
BHJ32M 32  11.5  20  550
BHJ36M 36  13.8  23  550
BHJ40M 38  13.8  24  550
BHJ46M 45  17.5  29  610
BHJ48M 48  18.5  30  610
BHJ50M 50  18.5  32  610
BHJ60M 58  20.5  37  620
BHJ70M 70  24  45  770
BHJ80M 78  28.5  50  820
BHJ90M 88  30  60  840
BHJ100M 100  32.5  63  850
BHJ110M 110  31.5  70  920
BHJ120M 120  37.5  75  960
BHJ130M 130  40.5  85  1000

Model Permissible Speed
(rpm)
Maximum Permissible Angle Permissible extension mm Maximum Working Temperature ℃ Maximum Permissible Torque (N ·m) Moment Of Inertia (kg ·m²) Weight(kg)
When Stationary When Rotating Dynamic Torque Static Torque  L1=1000 100 per extension of L1 L1=1000 100 per extension of L1
YBHJ28M 2600  16° 12°

+30 -50

100  85  250  0.81×10-3 0.08×10-3 3.9  0.38
YBHJ32M 2600 16° 12° +40 -60 100 140 360 0.9×10-3 0.09×10-3 4 0.39
YBHJ36M 2600  16° 12° +40 -60 100  150  362  1.02×10-3 0.1×10-3 4.5  0.41
YBHJ40M 2600 16° 12° +40 -60 100 160 400 1.1×10-3 0.11×10-3 4.8 0.41
YBHJ46M 2600  16° 12° +50 -80 100  185  600  1.52×10-3 0.15×10-3 6.5  0.42
YBHJ48M 2600 16° 12° +50 -80 100 225 780 1.78×10-3 0.16×10-3 6.9 0.45
YBHJ50M 2600  16° 12° +50 -80 100  250  870  1.98×10-3 0.16×10-3 7.4  0.45
YBHJ60M 2200 16° 12° +50 -100 100 455 1500 3.34×10-3 0.28×10-3 8.8 0.55
YBHJ70M 2200  16° 12° +60 -1200 100  875  3000  6.16x10-3 0.28×10-3 9.6  0.55
YBHJ80M 2000 16° 12° +60 -120 100 1420 4260 14.52×10-3 0.52×10-3 11.2 0.68
YBHJ90M 2000  16° 12° +65 -130 100  1750  5800  23.2×10-3 0.52×10-3 12.2  0.68
YBHJ100M 2000 16° 12° +65 -130 100 2600 7850 45×10-3 1.28×10-3 14 1.04
YBHJ110M 2000  16° 12° +65 -130 100  3100  10000  47x10-3 2.56×10-3 16.7  1.38
YBHJ120M 2000 16° 12° +65 -150 100 4210 12000 49×10-3 4.12×10-3 19 1.8
YBHJ130M 2000  16° 12° +65 -150 100  4700  15800  52×10-3 6.56×10-3 23  2.2
