BJS-A Dust-proof and waterproof telescopic lantern-type synchronous universal couplings

Contact Us
  • Specification
  • Describe
Specification

Model Tf(N ·m) Maximum Swing Anglea Expansion
BJS120A 800  ±4
BJS135A 1420  ±4
BJS155A 2550  ±5
BJS175A 3200  ±5
BJS190A 4650  ±5
BJS210A 7050  ±5
BJS245A 11800  ±5
BJS275A 17000  ±5
BJS320A 26000  ±5
BJS365A 33500  ±5
BJS410A 58000  ±6
BJS435A 65000  ±5
BJS490A 114000  ±8
BJS575A 220000  ±15
BJS650A 290000  ±15
BJS735A 370000  ±15
BJS845A 530000  ±15

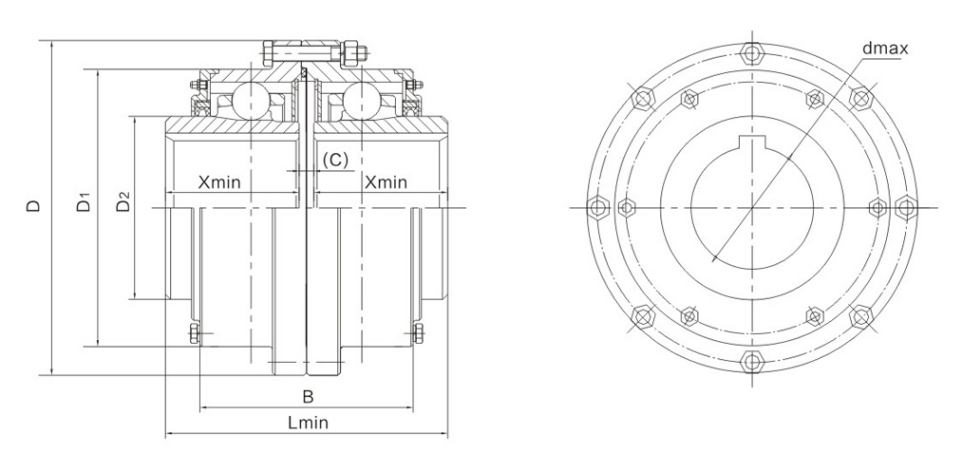

Model D D1 D2 dmax B C Xmin Lmin
BJS120A 120  86  50  32  100  55  116
BJS135A 135  100  58  42  106  60  128
BJS155A 155  120  75  50  121  62  130
BJS175A 175  140  85  60  130  10  68  145
BJS190A 190  155  100  65  140  10  78  165
BJS210A 210  175  110  75  152  10  85  180
BJS245A 245  200  125  85  170  12  85  185
BJS275A 275  230  150  105  200  12  100  210
BJS320A 320  265  175  125  220  14  110  238
BJS365A 365  310  200  145  247  16  120  260
BJS410A 410  350  240  170  267  18  130  280
BJS435A 435  385  280  195  249  16  130  280
BJS490A 490  428  280  210  328  23  160  340
BJS575A 575  490  320  250  375  25  185  390
BJS650A 650  570  380  285  450  28  205  435
BJS735A 735  640  420  340  442  25  215  455
BJS845A 845  735  490  400  500  32  245  520
