BJS-AF Environmentally friendly telescopic lantern-type synchronous universal couplings

Contact Us
  • Specification
  • Describe
Specification

Model Tf (Nm) Permissible Inter-axis Angle a Expansion △
BJS120AF 800  ±4
BJS135AF 1420  ±4
BJS155AF 2550  ±5
BJS175AF 3200  ±5
BJS190AF 4650  ±5
BJS210AF 7050  ±6
BJS245AF 11800  ±6
BJS275AF 17000  ±6
BJS320AF 26000  ±8
BJS365AF 33500  ±8
BJS410AF 58000  ±10
BJS490AF 114000  ±10
BJS575AF 220000  ±12
BJS650AF 290000  ±15
BJS735AF 370000  ±15
BJS845AF 530000  ±15

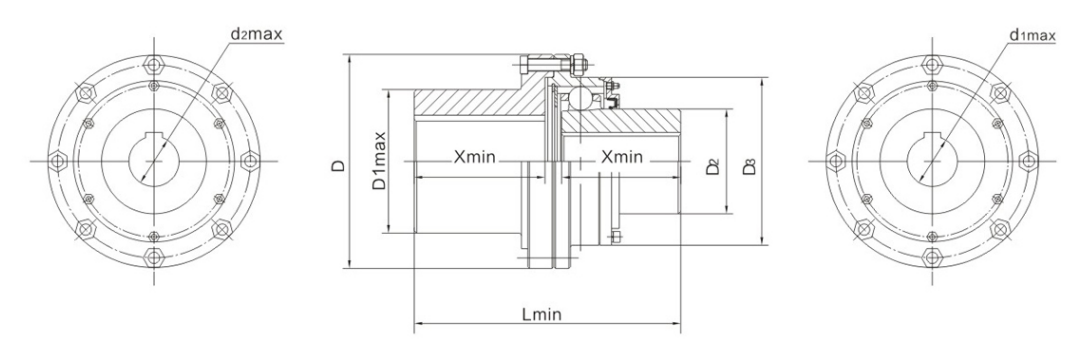

Model D D1max D2 D3 d1max d2max Xmin Lmin
BJS120AF 120  86  50  86  60  32  55  116
BJS135AF 135  100  58  100  65  42  60  125
BJS155AF 155  120  75  120  80  50  62  130
BJS175AF 175  140  85  140  95  60  68  145
BJS190AF 190  155  100  155  110  65  78  165
BJS210AF 210  175  110  175  125  75  85  180
BJS245AF 245  200  125  200  145  85  85  185
BJS275AF 275  230  150  230  160  105  100  210
BJS320AF 320  265  175  265  195  125  110  230
BJS365AF 365  310  200  310  240  145  120  260
BJS410AF 410  350  240  350  270  170  130  280
BJS490AF 490  428  280  428  348  210  160  340
BJS575AF 575  490  320  490  400  250  185  390
BJS650AF 650  570  330  570  480  285  205  435
BJS735AF 735  640  420  640  540  340  215  455
BJS845AF 845  735  490  735  625  400  245  520
