DOJ-F Well-sealed telescopic lantern-type synchronous universal couplings

Home / Products / Rzeppa Constant Velocity Joints / Plunge Rzeppa CV Joints / DOJ-F Well-sealed telescopic lantern-type synchronous universal couplings
  • Specification
  • Describe
Specification

Model Tn(N ·m) Tf(N ·m) Permissible Inter-axis Angle a Expansion △ Moment Of Inertia JX10-3(kg ·m2)
L1=500(mm) 100 per extension of L1 (mm)
Through-axis Welded Shafts Through-axis Welded Shafts
DOJ125F 5782  2744  16° ±20 227  232  0.79  2.1
DOJ150F 11564  4704  16° ±20 563  576  1.93  5.2
DOJ175F 15680  7350  20° ±20 1128  1130  2.30  8.5
DOJ200F 23910  11470  20° ±20 2041  2068  5.50  17.8

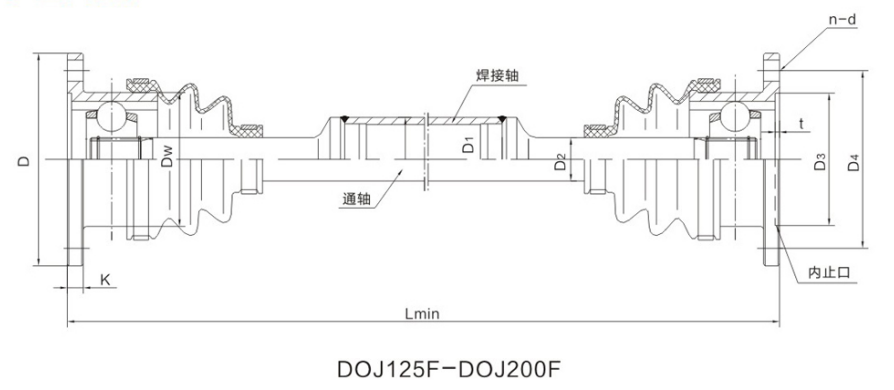

Model Dw D D1 D2 D3 D4 t K n-d Lmin
DOJ125F 120 177 60 40 102+0.083 150 3.5 11 6-14.5 400
DOJ150F 150  215  76  50  124+0.10 185  13  6-16.5 450
DOJ175F 170 236 89 55 140+0.10 203 4 15 8-18.5 500
DOJ200F 195  270  102  65  165+0.10 233  15  8-20.5 550
