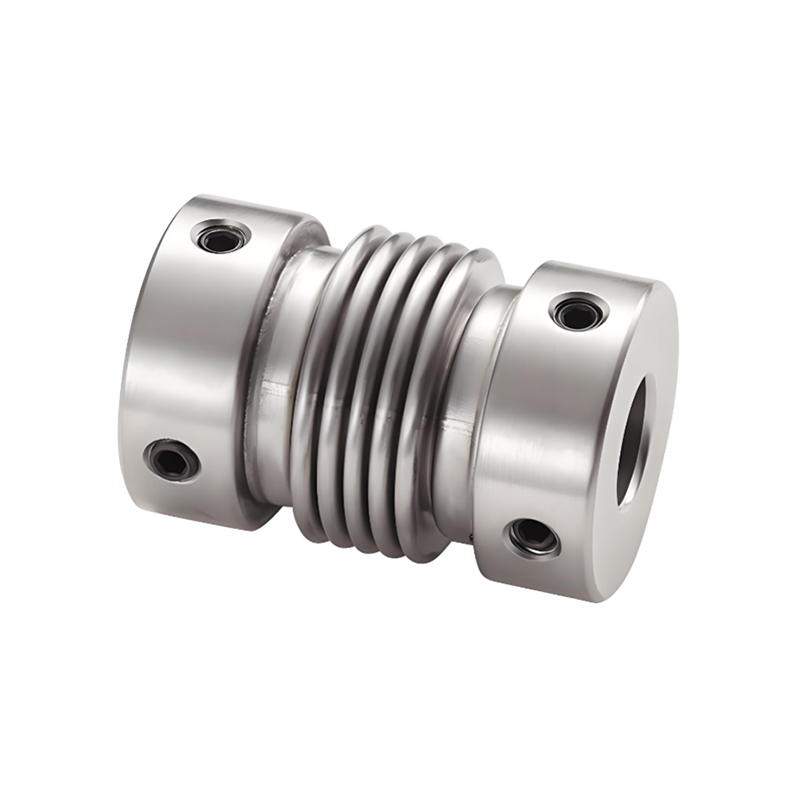

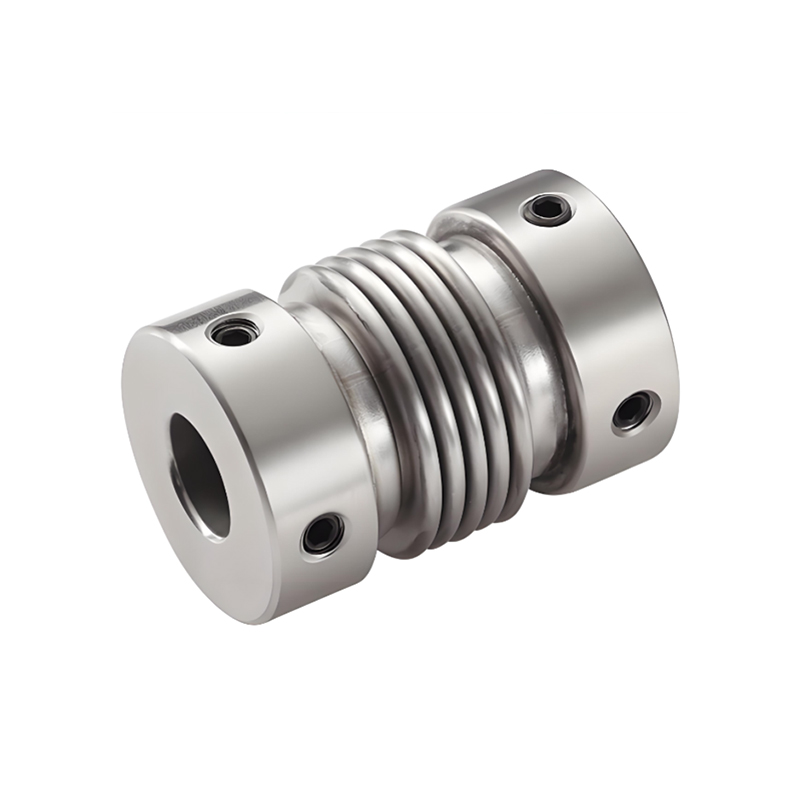

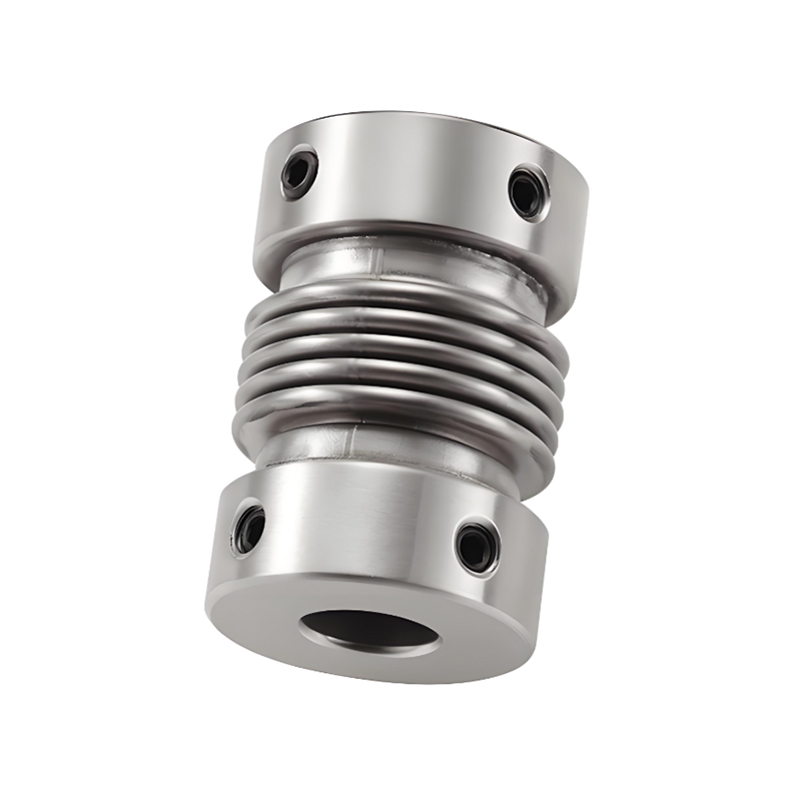

RSK-CPRG Good Corrosion Resistance Stainless Steel Bellows Couplings Positioning Screw

RSK-CPRG Good Corrosion Resistance Stainless Steel Bellows Couplings Positioning Screw

Contact Us
  • Specification
  • Describe
Specification

>The whole is made of stainless steel,with excellent corrosion resistance

>Laser welding between bellows and shaft sleeve,zero rotation clearance,suitable for forward and reverse

>The bellows structure compensates radial,angular and axial deviations more effectively

>Tightening method of positioning screw

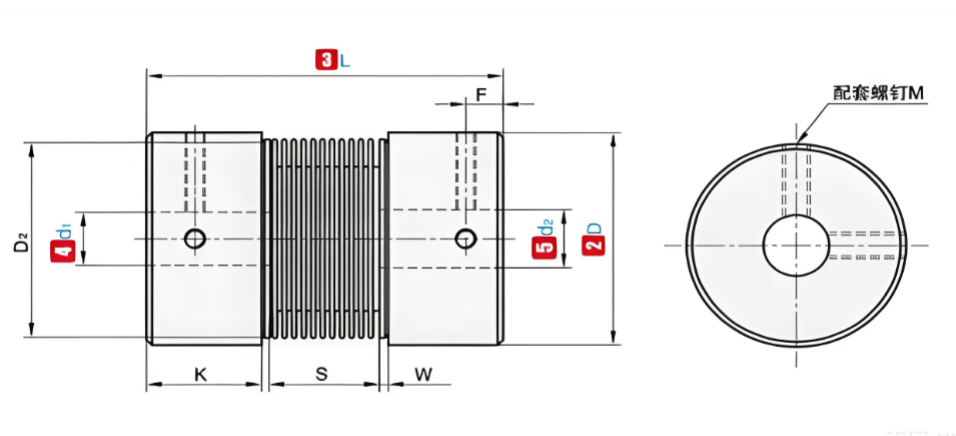

P/N

ΦD

L

  Standard Inner Diameter(mm)

K

W

S

D₂

F

M

Torque tightening(N.m)

RSK-CPRG









16

27

4-5-6-6.35-7-8

7.5

2

8

13.5

3

M3

1.2

20

32

5-6-6.35-7-8-9-9.525-10

7.2

2.8

12

18

3.5

M3

1.2

22.5

34

5-6-6.35-7-8-9-9.525-10

8.05

2.8

12.3

20.2

3.6

M4

2.5

25

37

6-6.35-7-8-9-9.525-10

9.5

3

12

20.2

4.5

M4

2.5

32

42

8-9-9.525-10-11-12-12.7-14-15

8

4

18

27.2

4.5

M5

5

Note: The inner holes at both ends of the coupling can be freely combined with the minimum and maximum inner diameters. The inner diameter sizes marked in the table are for reference only. The hole diameter required by the customer is also for reference only. For the hole diameter required by the customer, please contact us.

 P/N

ΦD

L

                               Rating torque(N.m)

    Allow bias(mm)

Allow tilt(∠°)

Allow axial deviation(mm)

Allow RPM

Static torsional stiffness(N.m/rad)

Moment of inertia(N.m)

Weight(g)

RSK-CPRG









16

27

1.2

0.1

2

+0.3

-0.1

16000

150

7.9X10⁻⁷

22

20

32

2.2

0.1

2

+0.3

-0.1

13000

220

2.0X10⁻⁶

36

22.5

34

2.7

0.15

2

+0.3

-0.1

12000

300

6.2X10⁻⁶

54

25

37

3

0.15

2

+0.5

-1.3

11000

330

6.7X10⁻⁶

73

32

42

3.7

0.2

2

+0.5

-1.3

10000

490

2.0X10⁻⁵

128

Note: The above inertial torque and technical parameters are measured by the standard of maximum aperture. The maximum rated torque value is related to the durability of the coupling itself. The larger the outer diameter, the greater the force, and the smaller the outer diameter, the higher the allowable speed.
