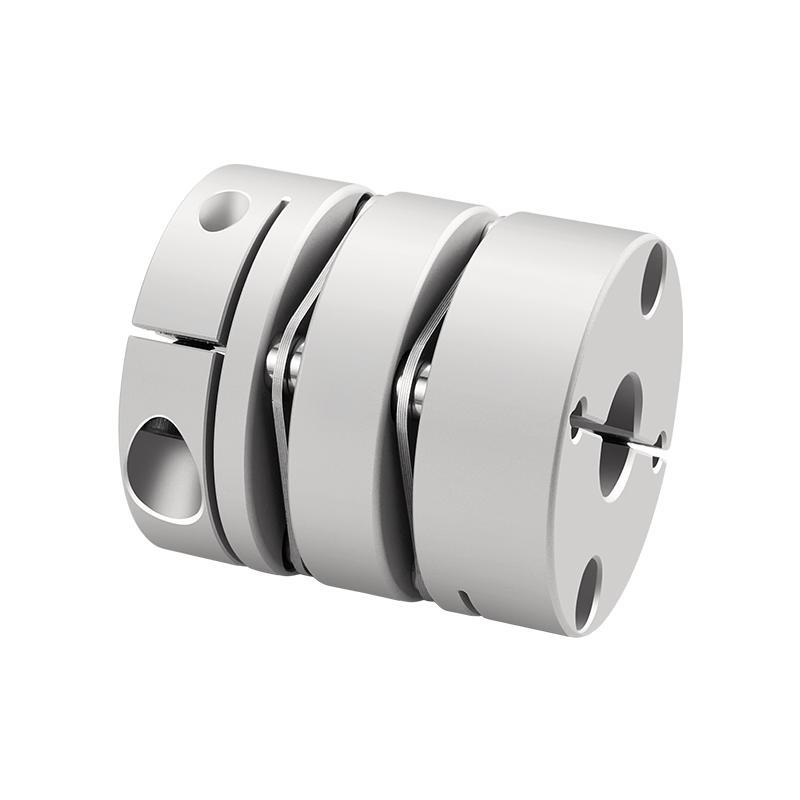

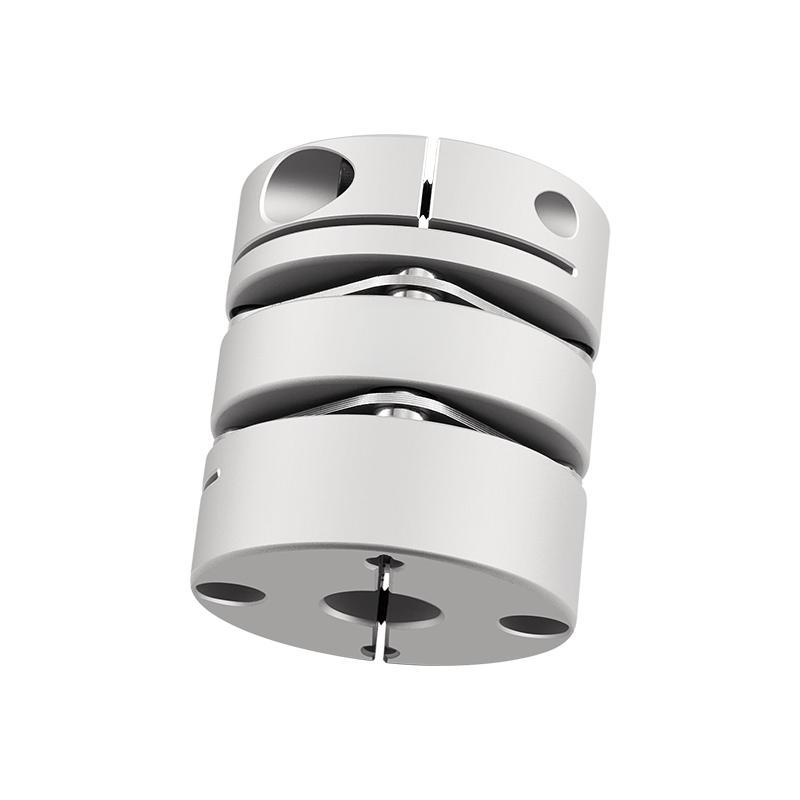

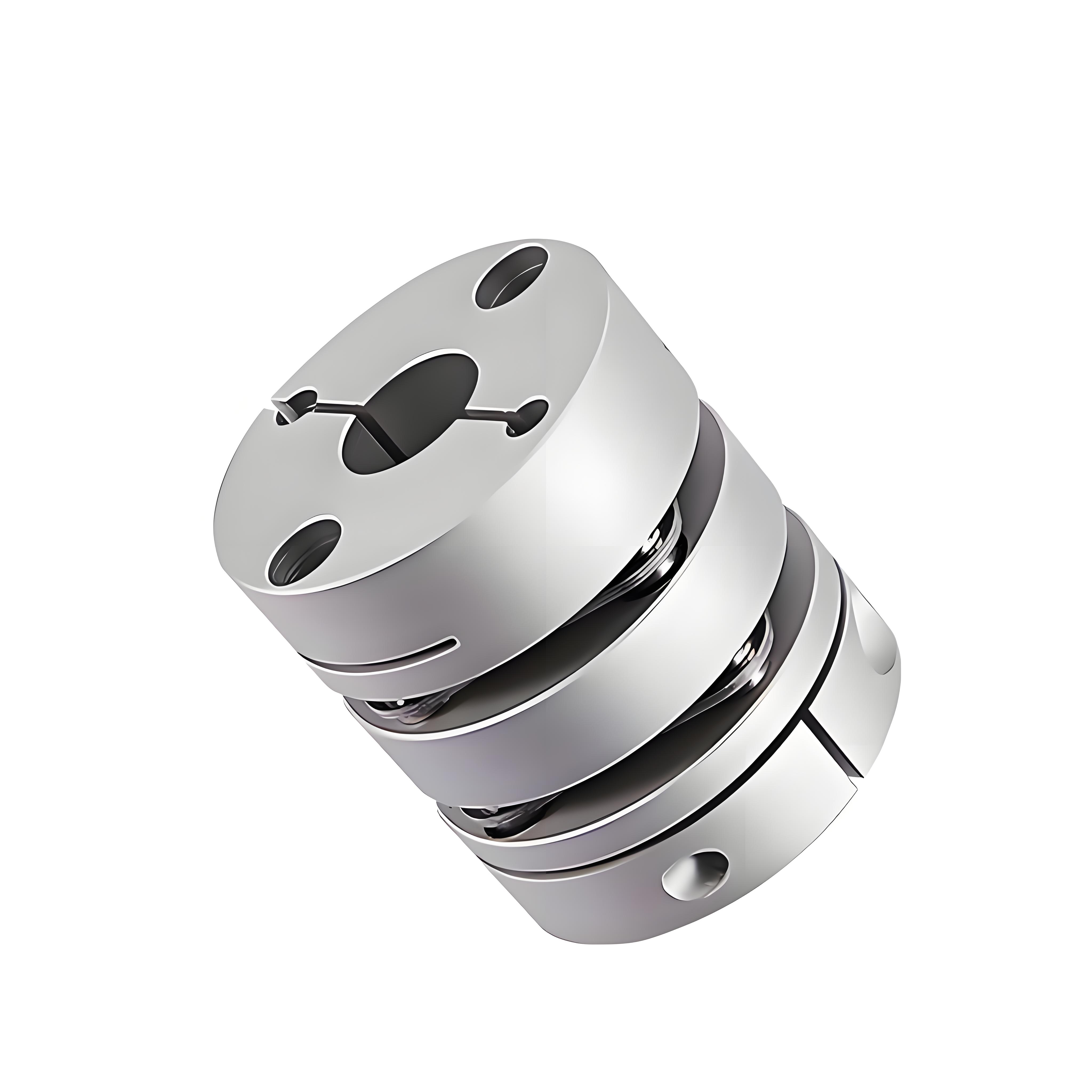

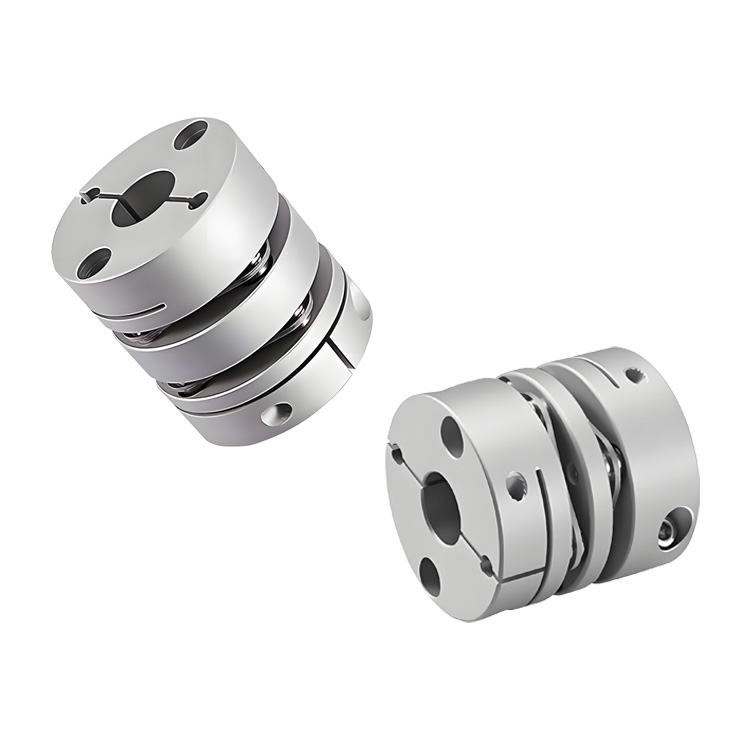

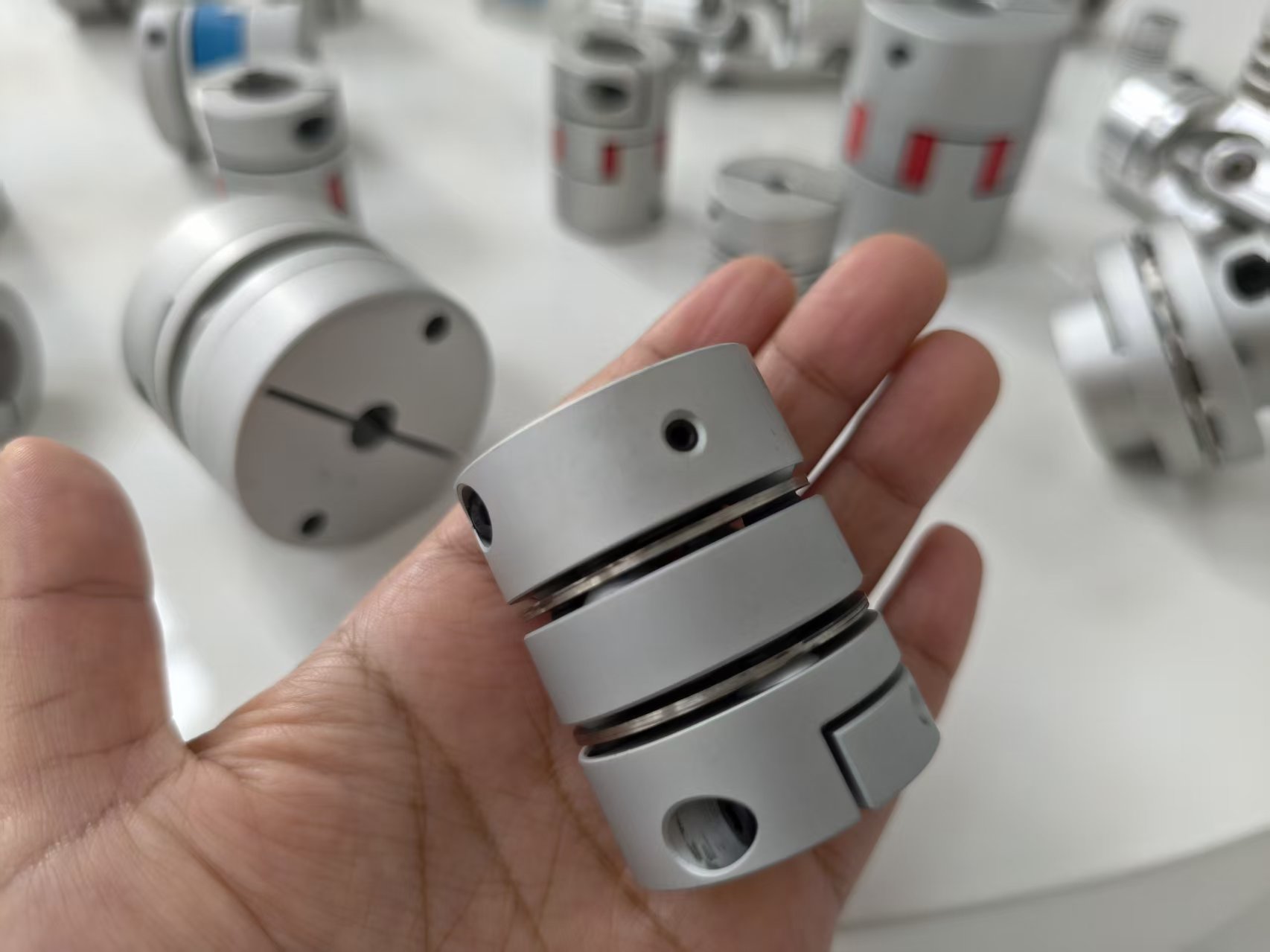

RSK-CPL Durable Diaphragm Disc Aluminum Alloy Coupling Clamp Type compensates for angular and axial deviations

RSK-CPL Durable Diaphragm Disc Aluminum Alloy Coupling Clamp Type compensates for angular and axial deviations

Contact Us
  • Specification
  • Describe
Specification



>The shaft sleeve is made of high-strength aluminum alloy

>The diaphragm is made of 304 stainless steel

>High torque rigidity, can accurately control the rotation of the shaft, and can be controlled with high precision

>The gap-free shaft and shaft sleeve connection are specially designed for servo and stepper motors

>Ultra-low inertia, high sensitivity,suitable for high-speed operation.

>The characteristics of clockwise and counterclockwise rotation are exactly the same.
>Stainless steel diaphragm compensates for angular and axial deviations

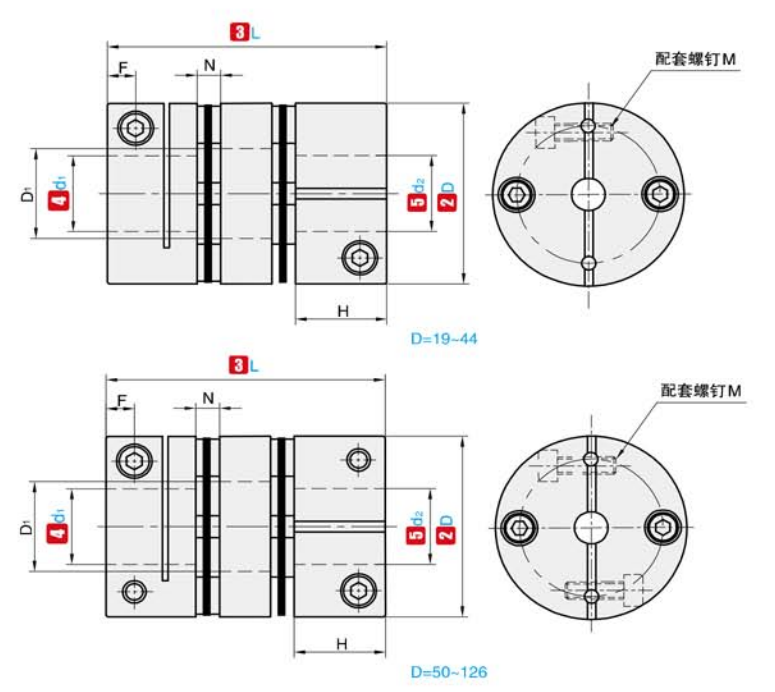

①NO. ②D ③L ④d₁ ⑤d₂ Optional range E D1 N F H M Tightening screw torque
(N·m)
RSK-CPL 19 27 3 4 5 6 6.35 7 8 5.2 9 1.8 3.3 9.1 M2.5 0.8
26 35 5 6 6.35 7 8 9 9.25 10 11 12  14 6.5 12.5 2.6 3.9 11.65 M3 1.2
32 41 5 6 6.35 8 9 9.525 10 11 12 12.7 14 15 9.5 15 3.5 3.85 12.25 M3 1.2
34 45 5 6 6.35 8 9 9.525 10 11 12 12.7 14 15 16 9.5 16 3.5 4.85 14.25 M4 2.5
39 50  8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 11.2 19.3 4.5 5.0 14.9 M4 2.5
44 50  8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 22 11.2 22.5 4.5 5.0 14.9 M4 2.5
56 64 10 12 14 15 16 17 18 19 20 22 24 25 28 30 32 13.5 32.5 5.5 6.4 19.75 M5 5
68 75 12  14 15 16 17 18 19 20 22 24 25 28 30 32 35 38 15.7 38.3 6.3 7.7  23.35 M6 8
82 98

17 18 19 20 22 24 25 28 30 32 35 38 40 42

 22 45.5  8.0 9.7 30 M8 20

①NO. ②D ③L Rated torque
(N ·m)		 Allowable eccentricity
(mm)		 Allowable deflection
(°)		 Allowable axial deviation
(mm)		 Allowable speed
(rpm)		 Static reversal stiffness
(N ·m/rad)		 Moment of inertia Weight
(g)
RSK-CPL 19  27  1  0.12  1.5  ±0.18 10000  700  9.6×10⁻⁷ 14.6
26  35  1.5 0.15  1.5  ±0.3 10000  1850  3.0×10⁻⁶ 37
32 41 2 0.17  1.5  ±0.36 10000  2850  7.6×10⁻⁶ 67
34 45  3 0.17 1.5  ±0.36 10000  4050  9.0×10⁻6 77
39 50  6  0.22  1.5  ±0.45 10000  9000  3.8×10⁻⁵ 118
44 50  9 0.22 1.5  ±0.54 10000  10000  3.8×10⁻5 144
56 64 25 0.27 1.5 ±0.72 10000 25000 1.6×10⁻4 318
68 75 60 0.31 1.5 ±0.8 9000 35000 2.0×10⁻4 492
82 98 80 0.55 1.5 ±0.8 8000 70000 2.5×10⁻4 1013
