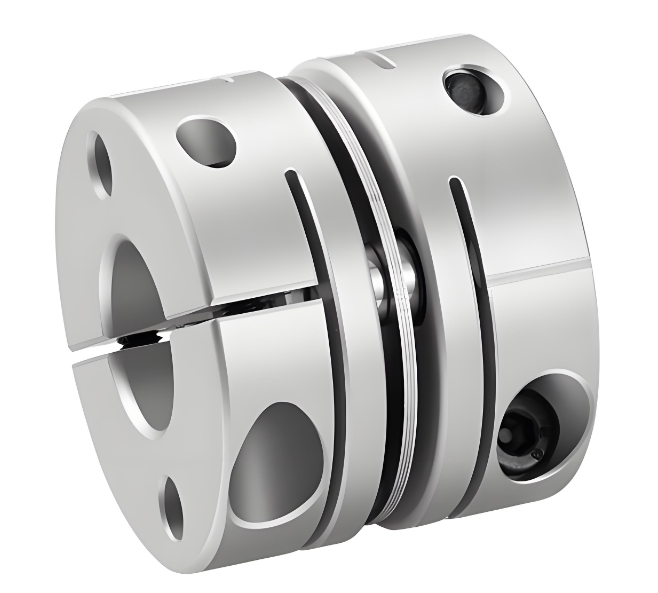

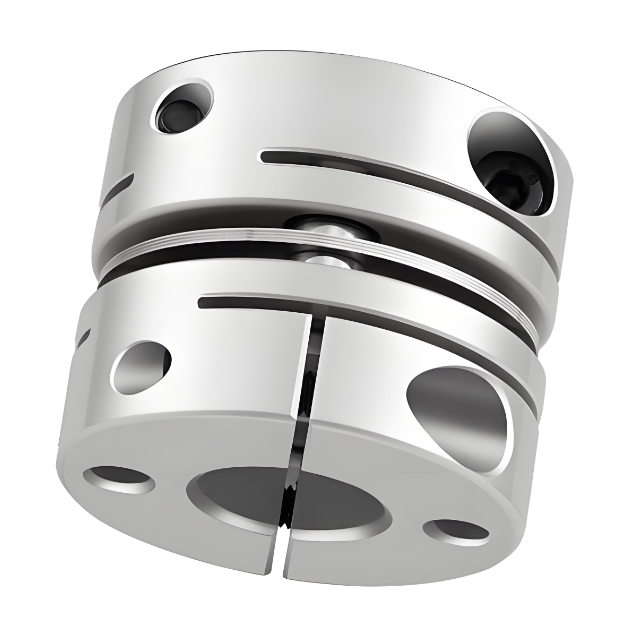

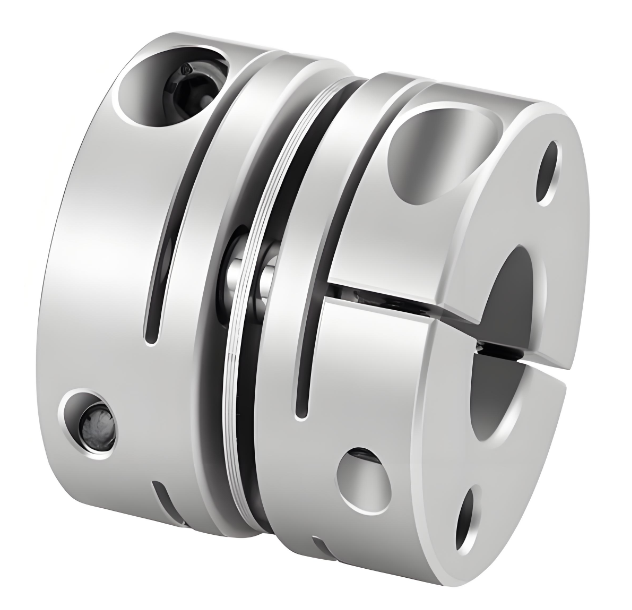

RSK-CPSN Factory sell aluminum alloy round single diaphragm coupling clamping type

RSK-CPSN Factory sell aluminum alloy round single diaphragm coupling clamping type

Contact Us
  • Specification
  • Describe
Specification

> The shaft sleeve is made of high-strength aluminum alloy

> The diaphragm is made of 304 stainless steel

> High torque rigidity, can accurately control the rotation of the shaft, can carry out high precision controll

> Designed specifically for servo,steppermotor

> The gap-free shaft and shaft sleeve connection is suitable for forward and reverse rotation

> Low inertia, suitable for high speed operation

>Clamping screw tightening type

①NO. ②D ③L ④d₁  ⑤d₂ Optional range N F H M Tightening screw torque
(N ·m)
RSK-CPSN 19  20  3 4 5 6 6.35 7 8  1.8  3.3  9.1  M2.5 0.8
25  24  3 4 5 6 6.35 7 8 9 9.525 10 11 12 2.6  3.9  10.7  M3 1.2
32  29  3 4 5 6 6.35 7 8 9 9.525 10 11 12 12.7 14 15 16 3.5  4.5  12.75  M4 2.5
40  33                         8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 4.5  5  14.25  M4 2.5
50  42                         8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 22 24 4.5  5  18.75  M4 2.5

①NO. ②D ③L Rated torque
(N ·m)		 Allowable eccentricity
(mm)		 Allowable deflection
(°)		 Allowable axial deviation
(mm)		 Allowable speed
(rpm)		 Static reversal stiffness
(N ·m/rad)		 Moment of inertia
(kg ·m²)		 Weight
(g)
RSK-CPSN 19  20  1  0.02  1  ±0.10 15000  600  2.9x10⁻⁷ 13
25  24  2  0.02  1  ±0.20 15000  1300  1.1x10⁻⁶ 25
32  29  2.5  0.02  1  ±0.30 10000  2500  4.0x10⁻⁶ 57
40  33  3.5  0.02  1  ±0.30 10000  4600  9.8x10⁻⁶ 86
50  42  9  0.02  1  ±0.30 10000  6000  1.6x10⁻⁵ 130
