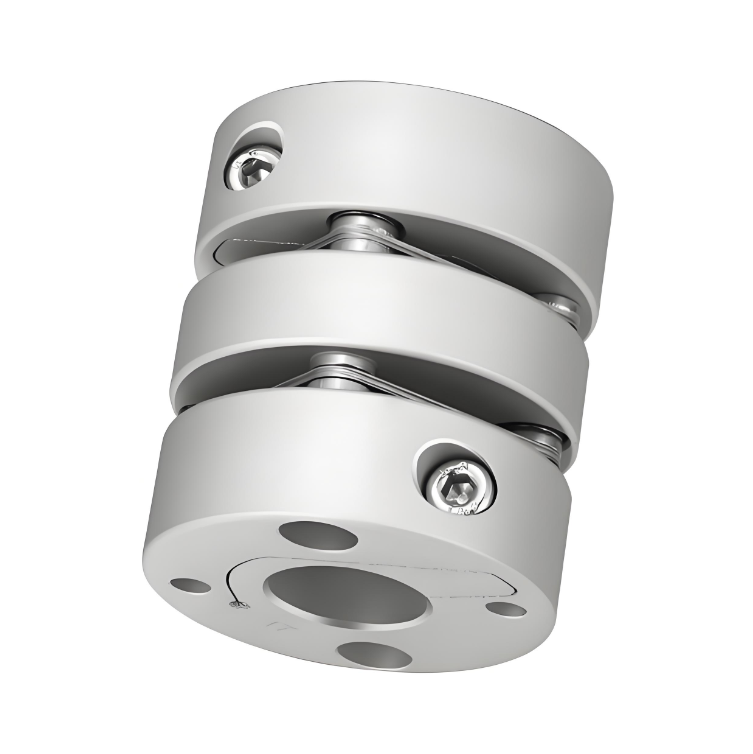

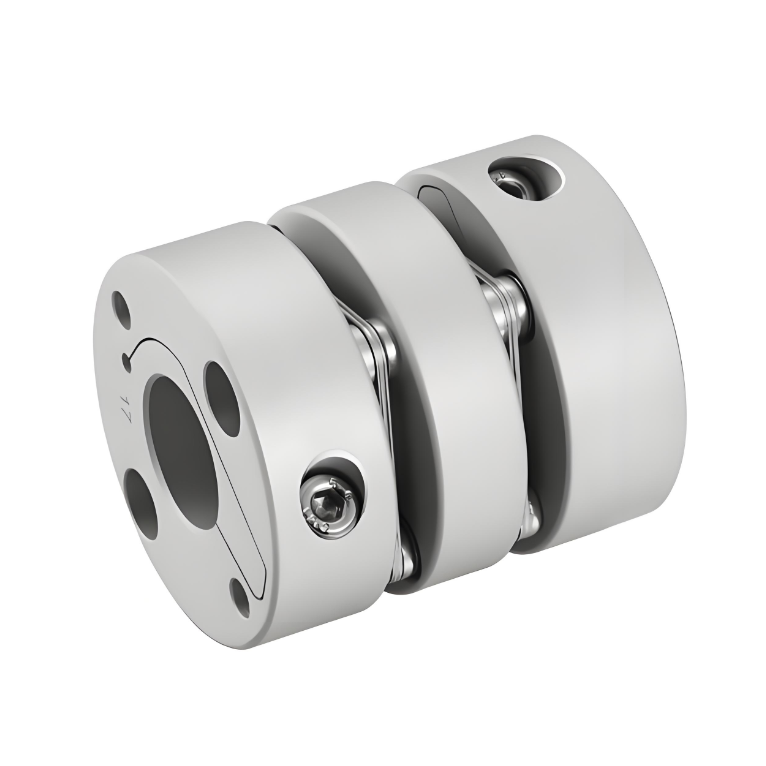

RSK-CPLM Factory Manufacturing Aluminum alloy double diaphragm coupling internal clamping type

>Bushings made of High-strength aluminum alloy

>The diaphragm is made of 304 stainless steel

>Internal clamping, reduce installation error

>With high torque capacity, can accurately control shaft rotation,high precision control can be performed

>For servomotor/step motor connect

>Zero backlash ,Suitable for forward reverse

>Low inertia Suitable for high-speed

>Internal clamping type

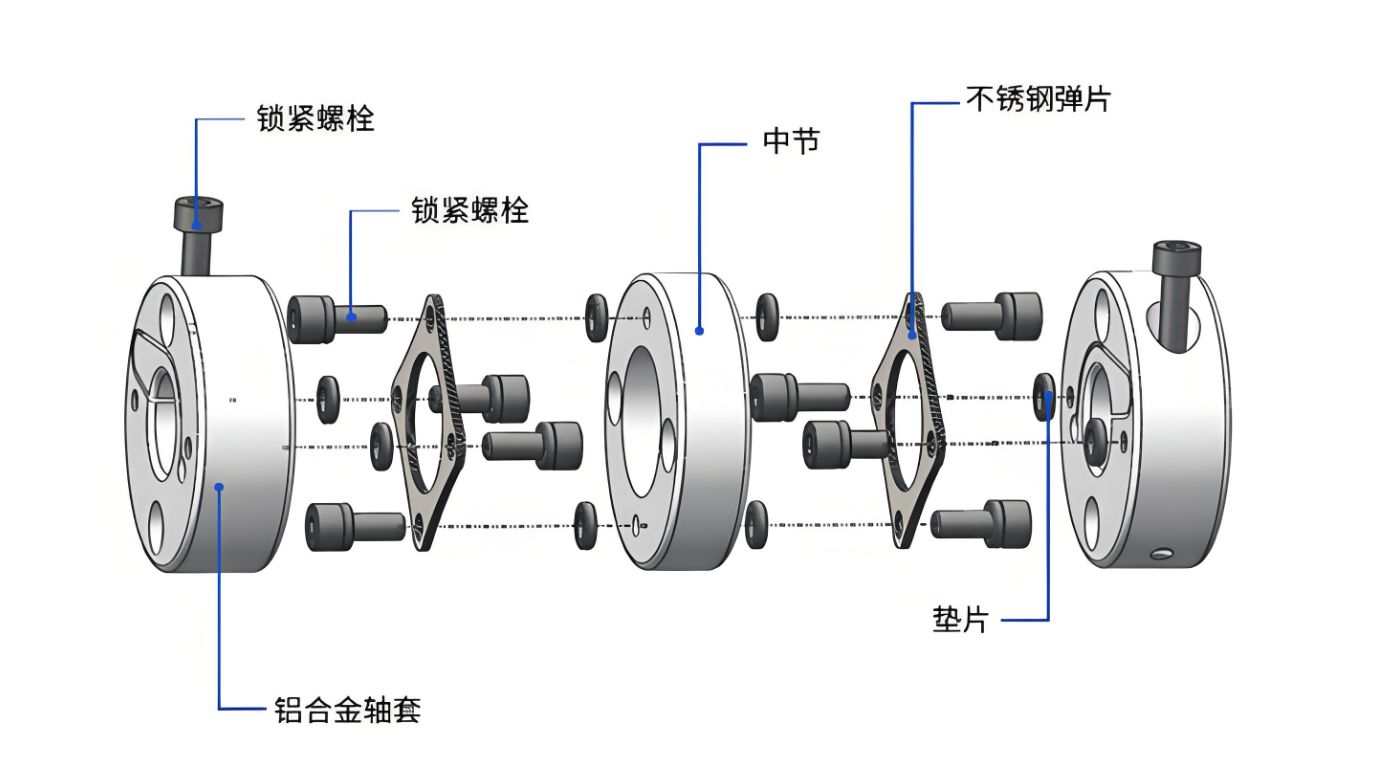

The aluminum alloy double diaphragm internal coupling is a mechanical transmission component with excellent performance and sophisticated design. It is mainly composed of two aluminum alloy sheets, two coaxial half shafts, and a set of cams, grooves and other parts. This unique structural design connects the two axes through the flexibility of the sheets, thereby efficiently realizing power transmission. ​

The main body of the coupling is made of aluminum alloy, which has the characteristics of light weight and high strength. Compared with traditional steel materials, aluminum alloy has a lower density, which can effectively reduce the load of rotating parts, reduce the moment of inertia, and improve the dynamic response performance of the transmission system. At the same time, the good corrosion resistance of aluminum alloy enables it to operate stably in harsh environments such as humidity, acid and alkali. ​

In terms of performance, the aluminum alloy double diaphragm internal coupling has significant advantages. It can compensate for a certain degree of axial, radial and angular displacement between the two shafts, effectively alleviate the torque transmission problems caused by axis deviation, vibration, impact and load fluctuation, and ensure the stability and reliability of the transmission. Its transmission efficiency is as high as 99.86%, which is particularly suitable for medium and high-speed high-power transmission scenarios. Moreover, the coupling has obvious vibration reduction and noise reduction effects. It is noiseless and wear-free during operation. It can accurately transmit the rotation speed without slip phenomenon. It is suitable for precision mechanical equipment with strict transmission accuracy requirements. ​

From the perspective of application range, this coupling has a wide range of uses and is commonly used in high-speed, precision, high-torque, and high-load transmission equipment and industrial machinery such as compressors, gearboxes, pumps, and wind turbines. In many fields such as ships, aerospace, automobile manufacturing, and mechanical processing, it plays a key transmission role and provides a solid guarantee for the efficient and stable operation of various mechanical equipment.
