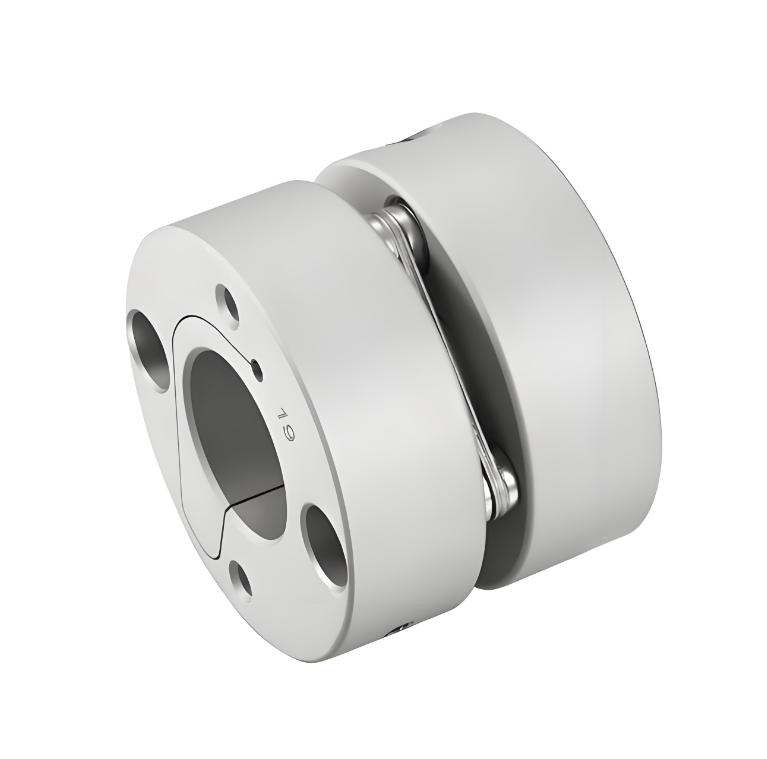

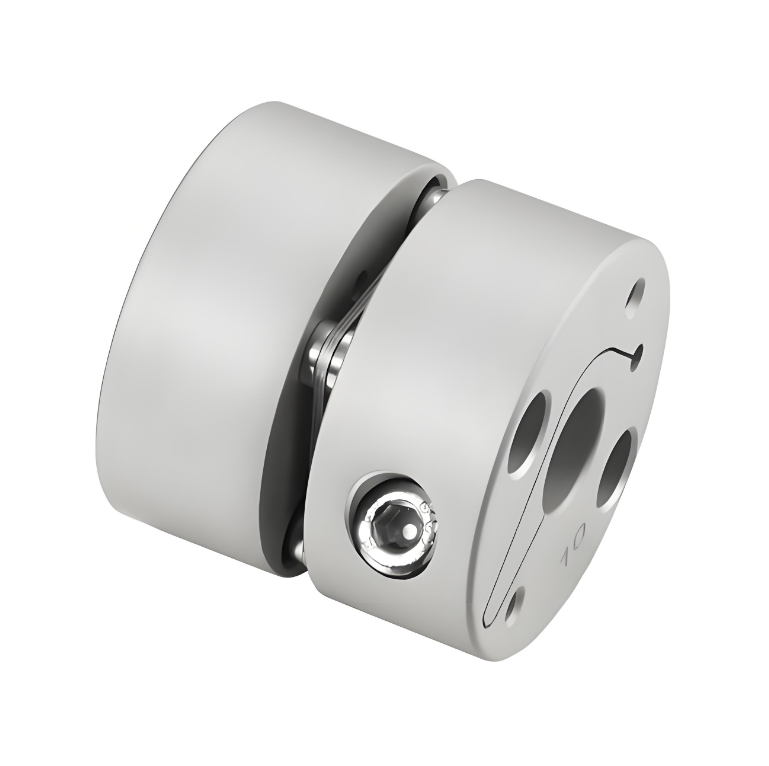

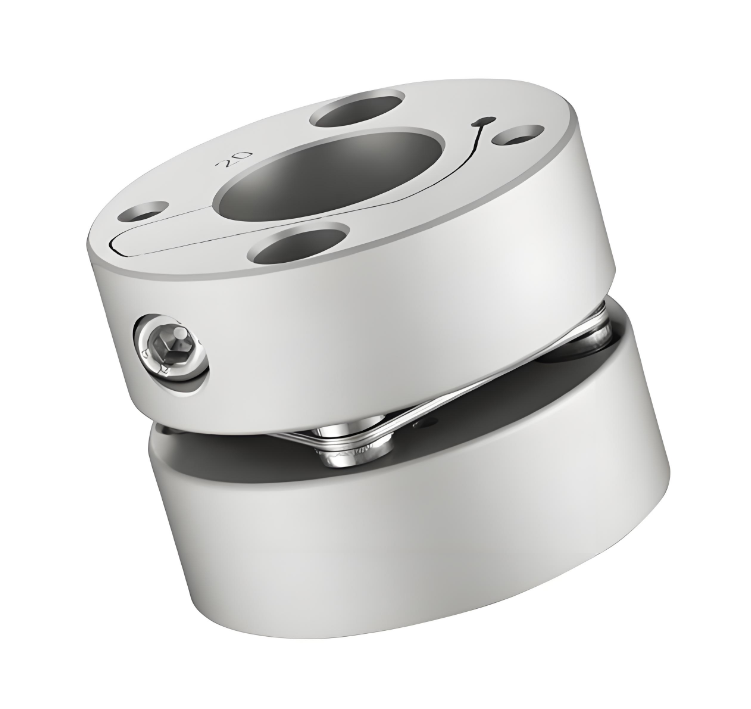

RSK-CPSM High Torque Rigidity Aluminum alloy single diaphragm coupling internal clamping screw tightening

RSK-CPSM High Torque Rigidity Aluminum alloy single diaphragm coupling internal clamping screw tightening

Contact Us
  • Specification
  • Describe
Specification

> The shaft sleeve is made of high-strength aluminum alloy

> The diaphragm is made of 304 stainless steel

> Internal clamping to reduce installation error

> High torque rigidity, can accurately control the rotation of the shaft, can carry out high precision controll

> Designed specifically for servo,steppermotor

> The gap-free shaft and shaft sleeve connection is suitable for forward and reverse rotation

> Low inertia, suitable for high speed operation

> Internal clamping screw tightening method

①NO. ②D ③L  ④d₁ ⑤d₂ Optional range N F H M Tightening screw torque
(N ·m)
RSK-CPSM 19  20  3 4 5 6 6.35 7 8  1.8  3.3  9.1  M2.5 1
26  26  3 4 5 6 6.35 7 8 9 9.525 10 2.6  3.9  11.35  M3 1.5
34  32        5 6 6.35 7 8 9 9.525 10 11 12 12.7 14 3.5  4.85  14.25  M4 3.5
39  34.5                         8 9 9.525 10 11 12 12.7 14 15 16 4.5  5  14.9  M4 3.5
44  34.5                         8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 4.5  5  14.9  M4 3.5
56  45                         8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 22 5.5  6.4  19.75  M5 8

①NO. ②D ③L Rated torque
(N ·m)		 Allowable eccentricity
  (mm)		 Allowable deflection
(°)		 Allowable axial deviation
(mm)		 Allowable speed
(rpm)		 Static reversal stiffness
(N ·m/rad)		 Moment of inertia Weight
(g)
RSK-CPSM 19  20  1  0.1  1  ±0.09 10000  1400  6.7×10⁻⁷ 12
26  26  2  0.1  1  ±0.14 10000  3700  2.2×10⁻⁶ 28
34  32  5  0.1  1  ±0.18 10000  5700  8.0×10⁻⁶ 61
39  34.5  10  0.1  1  ±0.23 10000  8100  2.2×10⁻⁵ 88
44  34.5  12  0.1  1  ±0.27 10000  18000  2.8×10⁻⁵ 100
56  45  25  0.1  1  ±0.36 10000  20000  1.2×10⁻⁴ 220
