- Specification
- Describe
Specification
>Bushings made of imported 304 stainless steel with good corrosion resistance
>Colloidal using imported POM
>with good wear resistance and corrosion resistance, more rigidity
>Sliding design more effective compensation of redial and angular misalignments
>Detachable design, Easy installation
>Clamping type
|

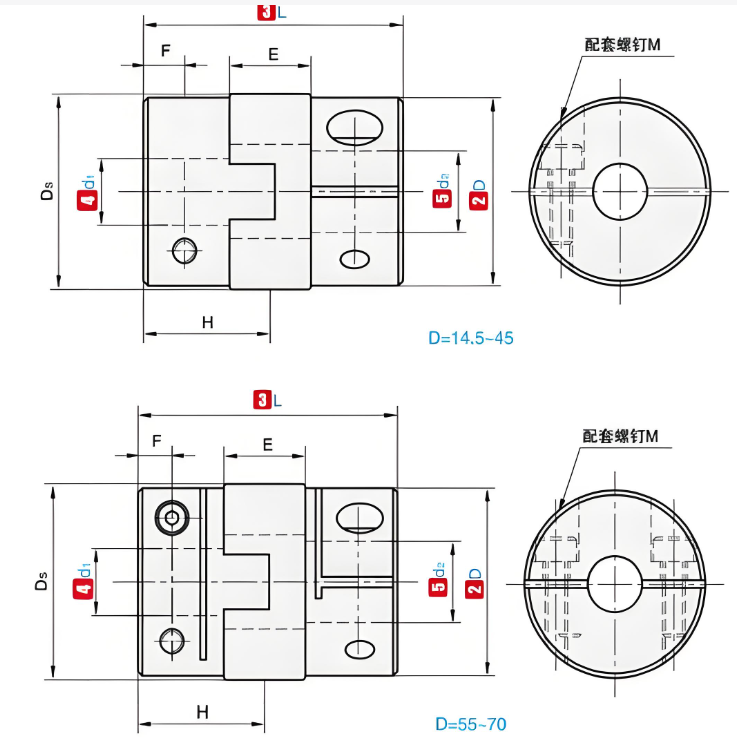

代号 code name |
D |
L |
常用D1/D2 内径尺寸 Standard Inner Diameter(mm) |
E |
F |
H |
M |
拧紧扭矩 Torque tightening(N.m) |
|
RSK-CPHPCG
|
14.5 |
18.4 |
4 5 6 6.35 |
5.5 |
3.3 |
8.9 |
M2.5 |
0.8 |
|
16.8 |
24.4 |
4 5 6 6.35 |
6.2 |
4.2 |
12.0 |
M3 |
1.2 |
|
|
20 |
27.2 |
5 6 6.35 7 8 9 9.525 10 |
7.3 |
4.5 |
13.4 |
M3 |
1.2 |
|
|
26 |
30.4 |
5 6 6.35 7 8 9 9.525 10 11 12 |
7.5 |
5.0 |
15.0 |
M4 |
2.5 |
|
|
30 |
33 |
5 6 6.35 7 8 9 9.525 10 11 12 12.7 14 |
8.8 |
6.0 |
16.0 |
M4 |
2.5 |
|
|
34 |
34 |
5 6 6.35 7 8 9 9.525 10 11 12 12.7 14 15 16 |
8.5 |
6.0 |
16.5 |
M5 |
5 |
|
|
38 |
40 |
5 6 6.35 7 8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 |
9.7 |
7.0 |
19.5 |
M5 |
5 |
|
代号 code name |
D |
L |
额定扭矩 rating torque(N.m) |
容许偏心 Allow bias(mm) |
容许偏角 Allow tilt(∠°) |
容许轴向偏差 Allow axial deviation(mm) |
容许转速Allow RPM |
静态扭转钢度Static torsional stiffness(N.m/rad) |
惯性矩 Moment of inertia(N.m) |
重量Weight(g) |
|
RSK-CPHPCG
|
14.5 |
18.4 |
1.6 |
0.6 |
2
|
±0.12
|
8000 |
80 |
2.0x10-7 |
17 |
|
16.8 |
24.4 |
2.2 |
0.8 |
6500 |
220 |
1.0x10-6 |
30 |
|||
|
20 |
27.2 |
3.2 |
1.2 |
5500 |
320 |
1.0x10-6 |
48 |
|||
|
26 |
30.4 |
6 |
1.8
|
±0.25
|
4500 |
400 |
1.0x10-6 |
90 |
||
|
30 |
33 |
15 |
4500 |
1100 |
1.0x10-5 |
120 |
||||
|
34 |
34 |
16 |
2.2
|
3500 |
2200 |
1.0x10-5 |
172 |
|||
|
38 |
40 |
28 |
3500 |
3200 |
1.0x10-5 |
250 |
