RSK-n-bipex Series bwn type Torsionally Fexible Couplings particularly compact design and low weight

RSK-n-bipex-bw ncouplings are torsionally flexible and are outstanding for their particularly compact design and low weight. RSK-n-bipex-bwn couplings are used in many areas of mechanical engineering.Their main area of use is in electric motor drives which are well aligned and have uniform torque loads, such as in hydraulic applications and in combinations with geared motors.

RSK-n-bipex-bw couplings are suitable for horizontal, vertical and freely selectable mounting positions. They are able to absorb axial, radial and angular misalignment.

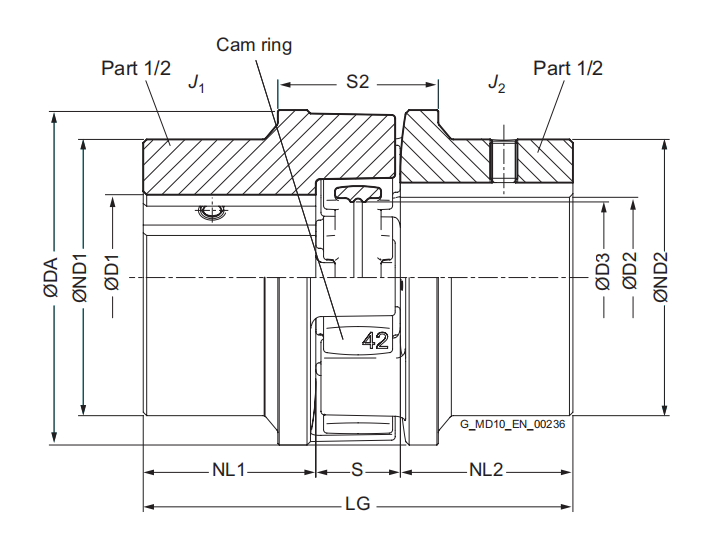

RSK-n-bipex-bw couplings consist of two identical hub parts which can be arranged as required on the shaft extensions to be connected.RSK-n-bipex-bw  couplings transmit the torque positively and are thus fail-safe. The curved design of the cast cams ensures that the RSK-n-bipex-bw couplings have a perfect pressure distribution and this increases the elastomer lifetime

The flexible cam rings responsible for torque transmission and misalignment compensation are available in different Shore hardnesses. As a result of the good damping capability and by selecting the suitable stiffness, torque shock loads can thus be absorbed and the torsional vibration behavior of the drive can be positively influenced.Different cam ring versions and ready-to-install hub parts are available from stock.

RSK-n-bipex couplings are torsionally flexible and are outstanding for their particularly compact design and low weight. RSK-n-bipex couplings are used in many areas of mechanical engineering.Their main area of use is in electric motor drives which are well aligned and have uniform torque loads, such as in hydraulic applications and in combinations with geared motors.

RSK-n-bipex couplings are suitable for horizontal, vertical and freely selectable mounting positions. They are able to absorb axial, radial and angular misalignment.

RSK-n-bipex couplings consist of two identical hub parts which can be arranged as required on the shaft extensions to be connected.RSK-n-bipex couplings transmit the torque positively and are thus fail-safe. The curved design of the cast cams ensures that the RSK-n-bipex couplings have a perfect pressure distribution and this increases the elastomer lifetime

The flexible cam rings responsible for torque transmission and misalignment compensation are available in different Shore hardnesses. As a result of the good damping capability and by selecting the suitable stiffness, torque shock loads can thus be absorbed and the torsional vibration behavior of the drive can be positively influenced.Different cam ring versions and ready-to-install hub parts are available from stock.
