Specification

RSK-GICLZ type intermediate shaft drum gear coupling is a heavy-duty gear coupling designed for ultra-long span transmission systems. Its core structure connects two drum gear half-couplings via an elongated intermediate shaft, effectively compensating for combined radial, angular, and axial displacements under large shaft distance conditions. It is primarily used in industrial applications such as metallurgical roller tables, mining machinery, and large conveying equipment that have specific requirements for transmission distance and misalignment compensation capability.

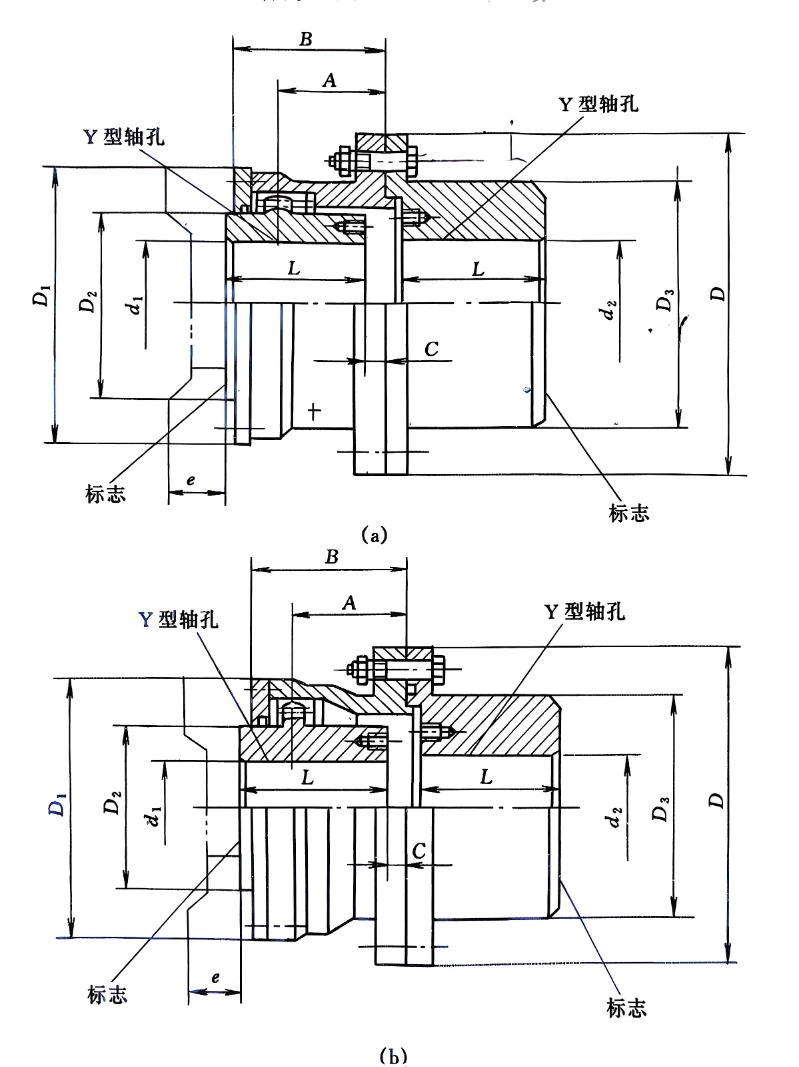

Model	Nominal Torque Tn/N.m	Allowable Speed n/r.min-1	Axial hole diameter d1\d2	Axial length L	D	D1	D2	D3	B	A	C	e	Lubricant dosage /ml	Mass m/kg	Moment of inertia I/kg.m2
				Y
GICLZ1	630	4000	16,18,19	42	125	95	60	80	57	37	20	30	30	5.4	0.0084
			20,22,24	52							10
			25,28	62							2.5
			30,32,35,38	82
			40,42,45,48,50	112
GICLZ2	1120	4000	25,28	62	144	120	75	95	67	44	10.5		60	9.2	0.018
			30,32,35,38	82							2.5
			40,42,45,48,50,55,56	112
			60	142
GICLZ3	2240	4000	30,32,35,38	82	174	140	95	115	77	53	3		80	16.4	0.0427
			40,42,45,48,50,55,56	112
			60,63,65,70	142
GICLZ4	3550	3600	32,35,38	82	196	165	115	130	89	62	14		90	22.7	0.075
			40,42,45,48,50,55,56	112							3
			60,63,65,70,71,75	142
			80	172
GICLZ5	5000	3300	40,42,45,48,50,55,56	112	224	183	130	150	99	71	3		140	36.2	0.0149
			60,63,65,70,71,75	142
			80,85,90	172
GICLZ6	7100	3000	48,50,55,56	112	241	200	145	170	109	80	6		200	46.2	0.24
			60,63,65,70,71,75	142							4
			80,85,90,95	172
			100	112
GICLZ7	10000	2680	60,63,65,70,71,75	142	260	230	160	190	122	90	4		290	68.4	0.43
			80,85,90,95	172
			100,110,120	212
GICLZ8	14000	2500	65,70,71,75	142	282	245	175	210	132	96	4	30	350	81.1	0.61
			80,85,90,95	172
			100,110,120	212
			130	252
GICLZ9	18000	2350	70,71,75	142	314	270	200	225	142	104	10		370	100.1	0.94
			80,85,90,95	172							5
			100,110,120,125	212
			130,140	252
GICLZ10	31500	2150	80,85,90,95	172	346	300	220	250	165	124	5		500	147.1	1.67
			100,110,120,125	212
			130,140,150	252
			160	302
GICLZ11	40000	1880	120	212	380	330	260	285	180	133	6	40	650	206.3	2.98
			130,140,150	252
			160,170,180	302
GICLZ12	56000	1680	120	212	442	380	290	325	208	156	6		1100	284.5	5.31
			130,140,150	252
			160,170,180	302
			190,200	352
GICLZ13	80000	1530	140,150	252	482	420	320	360	238	182	7		1600	402	9.16
			160,170,180	302
			190,200,220	352
GICLZ14	112000	1300	160,170,180	302	520	465	360	410	266	207	8		2300	582.2	15.92
			190,200,220	352
			240,250	410
GICLZ15	160000	1180	190,200,220	352	580	510	400	450	278	214	10		2600	778.2	25.79
			240,250,260	410
			280	470
GICLZ16	25000	1000	200,220	352	680	595	465	500	320	250	10	50	4100	1071	46.89
			240,250,260	410
			280,300,320	470
GICLZ17	280000	980	220	352	720	645	495	530	336	256	10	50	5100	1210	60.59
			240,250,260	410
			280,300,320	470
GICLZ18	355000	900	240,250,260	410	775	675	520	540	351	262	10		6000	1475	81.75
			280,300,320	470
			340	550
GICLZ19	450000	830	260	410	815	715	560	580	372	280	10		6700	1603	101.57
			280,300,320	470
			340,360	550
GICLZ20	500000	790	280,300,320	470	855	755	585	600	393	297	13		8100	2033	140.03
			340,360,380	550
GICLZ21	630000	750	300,320	470	915	795	620	640	404	305	13		10500	2385	183.4
			340,360,380	550
			400	650
GICLZ22	710000	720	340,360,380	550	960	840	665	680	415	316	13	60	14000	2458	235.04
			400,420	650
GICLZ23	800000	680	360,380	550	1010	890	710	720	435	333	13		15000	3332	323.16
			400,420,450	650
GICLZ24	1000000	650	380	550	1050	925	730	760	445	342	15		16500	3639	389.97
			400,420,450,480,500	650
GICLZ25	1120000	610	420,450,480,500	650	1120	970	770	800	465	362	15		18000	4073	485.96
GICLZ26	1250000	580	530	650	1160	990	800	850	475	366	15		19000	4527	573.64
			450,480,500	800
GICLZ27	1400000	560	530,560	650	1210	1060	850	900	479	369	15	70	23000	5485	789.74
			480,500	800
GICLZ28	1600000	540	480,500	650	1250	1080	890	960	517	402	20		24000	6050	960.26
			530,560,600	800
GICLZ29	2240000	520	500	650	1340	1200	960	1010	517	396	20	80	26000	7090	1268.98
			530,560,600,630	800
GICLZ30	2800000	500	560,600,630	800	1390	1240	1005	1070	525	403	20	80	30000	9264	1822.02
			670	900

Describe

I. Core Advantages (Compared to Spur Gear Couplings)

Excellent Angular and Radial Misalignment Compensation

Barreled Design: The outer edges of the external teeth are machined into a spherical (barreled) shape, providing larger backlash.
Effect: Allows the internal and external teeth to mesh at larger angles and accommodates certain radial offsets. Typically, angular compensation can reach 1°30′, and radial compensation is significantly better than spur gear couplings. This is its most fundamental advantage.

High Load Capacity, Low Wear, Long Service Life

Surface Contact: Under misalignment, barreled teeth maintain surface contact, avoiding the edge loading and stress concentration common in spur teeth.
Effective Load Distribution: The load is distributed more evenly across the tooth width, reducing pressure per unit area.
Effect: Greatly increases the coupling's load capacity and shock resistance while reducing wear and extending service life.

Automatic Alignment and Self-Centering Capability

The spherical meshing characteristic of barreled teeth provides a degree of "self-adaptability." It can automatically adjust for minor misalignment caused by installation errors or foundation settling, protecting the bearings of connected equipment.

II. Structural and Other Characteristics

Compact Structure, High Torque Transmission

For the same size, barreled gear couplings can transmit higher torque, offering high volumetric efficiency.

Requires Lubrication and Sealing

Lubrication: As a rigid movable coupling, its tooth surfaces require good lubrication (typically oil or grease) to minimize wear and heat generation.
Sealing: Standard equipment includes seals such as O-rings or lip seals to prevent lubricant leakage and ingress of external contaminants. The reliability of the seal directly impacts the coupling's lifespan.

High Reliability, Suitable for Harsh Conditions

Due to their durability, GIICL-type couplings are widely used in applications involving continuous operation, heavy loads, medium to high speeds, and slight misalignment. Examples include: metallurgical rolling mills, mining machinery, heavy lifting equipment, marine propulsion systems, and generators.
