Wholesale RSK-TBG 8 ZT high torsional stiffness and zero backlash diaphragm coupling suitable for test bench

Home / Products / High Speed Diaphragm Couplings / RSK-TBG 8 ZT high torsional stiffness and zero backlash diaphragm coupling suitable for test bench

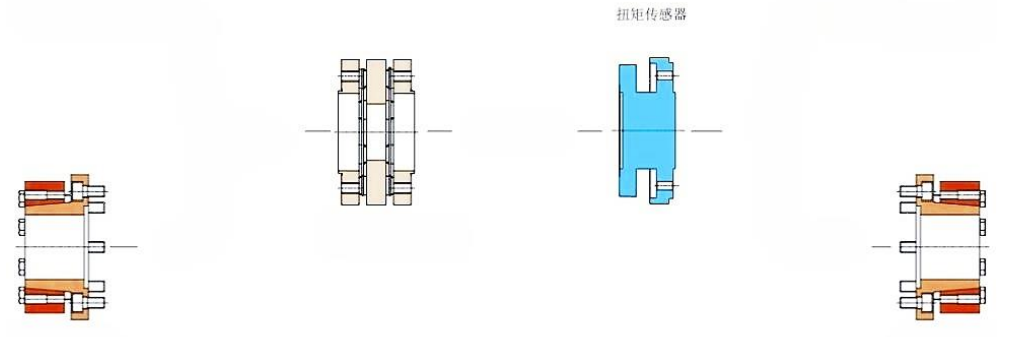

RSK-TBG 8 ZT high torsional stiffness and zero backlash diaphragm coupling suitable for test bench

Contact Us
  • Specification
  • Describe
Specification

Model: RSK-TBG  8102F  8102 8132 8178 8210 8252
Rated Torque   TKN N.m  190 300 1100 3500 5800 10000
Peak Torque  TKS  N.m  285 450 1650 5250 8700 14250
Outer Diameter  mm  102 102 132 178 210 252
Hole Diameter mm  25-45H5  25-45H5  45-70H5  50-85H5  60-100H5  70-120H5
Maximum Speed  Nmax min−1  30000 30000 25000 20000 16000 13000
  Axial Offset  △Ka mm  0.2 0.2 0.3 0.4 0.4 0.5
Radial Offset  Sleeve1  △Kr mm  0.06 0.06 0.08 0.08 0.11 0.13
Angular Offset     °  0.3 0.2 0.2 0.16 0.16 0.16
Angle Spring Stiffness   Nm/rad  229 285 1850 6980 11250 18580
Diaphragm Set Thickness mm  7.1 4.6 6.8 11.2 12 14

Note: For speeds over 5000rpm, the offset should be controlled to a maximum of 30%.
