RSK-TBC 6ZT High-speed and high-power multi-diaphragm transmission coupling

Home / Products / High Speed Diaphragm Couplings / RSK-TBC 6ZT High-speed and high-power multi-diaphragm transmission coupling
  • Specification
  • Describe
Specification

Model: RSK-TBC 6ZT 6077 6089 6104 6123 6143 6167
Rated Torque T kn N.m 300 420 650 1100 1600 2600
Peak Torque T ks N.m 450 630 975 1650 2400 3900
Outer Diameter D mm 77 89 104 123 143 167
Hole Diameter d mm 25-45 32-52 40-60 45-70 55-90 65-100
Maximum Speed N max min−1 13600 11800 10100 8500 7300 6200
Compensation Axial Offset △Ka mm 0.8 0.9 1.1 1.3 1.5 1.7
Radial Offset Sleeve 1 △Kr mm 0.2 0.2 0.25 0.3 0.3 0.35
Sleeve 2 △Keh mm 0.7 0.8 1 1.25 1.45 1.5

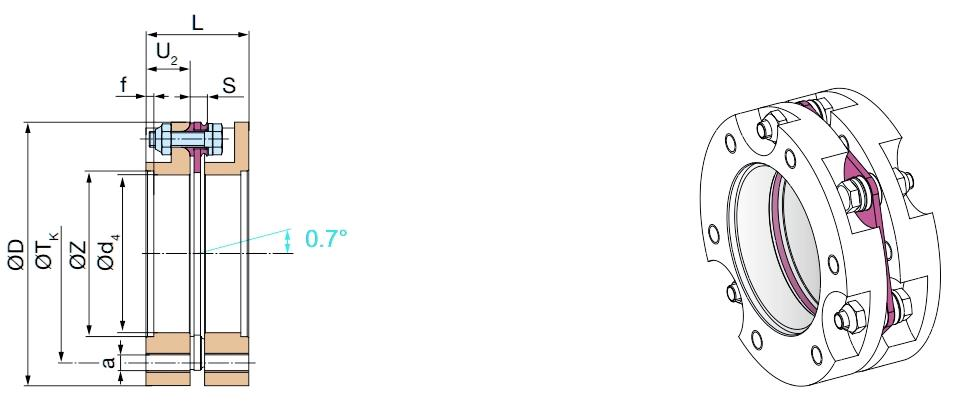

Angular Offset Single Diaphragm ° 0.7

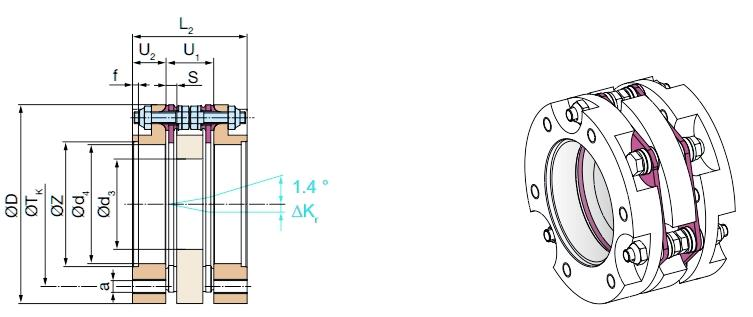

Double Diaphragm ° 1.4
Spring Stiffness Nm/rad 285 305 875 1285 2025

3260

Model: RSK-TBC 6ZT 6077 6089 6104 6123 6143 6167
Rated Torque  T kn N.m  190 290 450 720 1000 1600
Peak Torque  T ks N.m  285 435 675 1080 1500 2400
Outer Diameter   D mm  77 89 104 123 143 167
Hole Diameter  d mm  25-45  32-52  40-60  45-70  55-90  65-100
Maximum Speed  N max min−1 13600 11800 10100 8500 7300 6200
Compensation  Axial Offset  △Ka mm  1.1 1.3 1.5 1.8 2.1 2.5
Radial Offset   Sleeve 1  △Kr mm  0.3 0.3 0.4 0.45 0.45 0.55
Sleeve 2  △Keh mm  1.0 1.2 1.5 1.8 2.1 2.2
Angular Offset   Single Diaphragm    ° 1
Double Diaphragm    ° 2
Spring Stiffness    Nm/rad  229 248 298 876 1089 1990

Remarks:
1. The rated torque applies to alternating torque and offset to the maximum value.
2. Peak torque is suitable for single direction of rotation and maximum pressure ≤105

3. Maximum speed is not suitable for too long sleeve.
4. Offset is not suitable to reach the maximum value at the same time.
5. Axial offset is suitable for double diaphragm structure and is static value.
6. Angular spring stiffness is suitable for single diaphragm values.
7. For specific design dimensions, please contact our design department.
