RSK-TBZ 8ZT Superior dynamic performance at high speeds diaphragm coupling for torque sensors

Contact Us
  • Specification
  • Describe
Specification

Model: RSK-TBZ8 8143 8167 8198 8234 8274 8314
Rated Torque Tkn N.m 2100 3500 5800 9500 15000 24000
Peak Torque Tks N.m 3150 5250 8700 14250 22500 36000
Outer Diameter  D mm 143 167 198 234 274 314
Hole Diameter d mm 42-75 50-85 60-100 70-120 80-140 100-170
Maximum Speed Nmax min−1 7300 6200 5200 4400 3800 3300
Compensation Axial Offset △Ka mm 1.0 1.2 1.4 1.6 1.9 2.2
Radial Offset Sleeve 1 △Kr mm 0.25 0.25 0.35 0.4 0.5 0.55

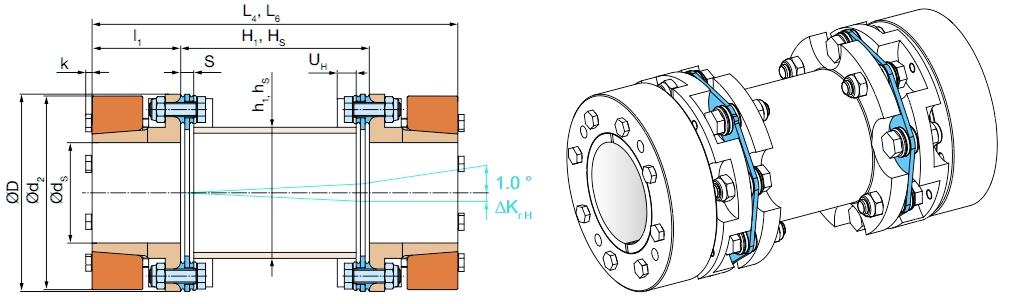

Sleeve 2 △KrН mm 1.2 1.25 1.35 1.7 2 2.6

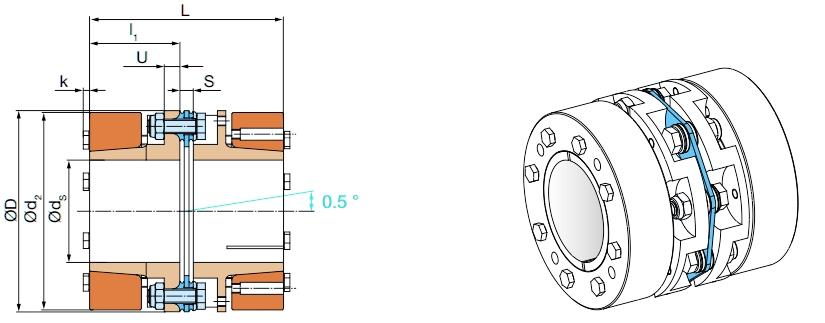

Angular Offset Single Diaphragm ° 0.5

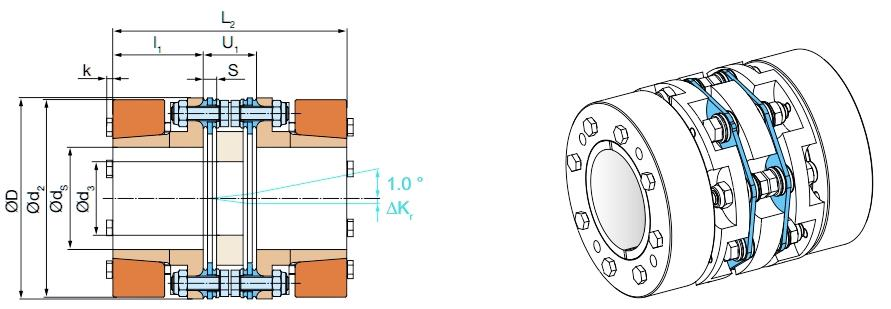

Double Diaphragm ° 1
Spring Stiffness Nm/rad 3890 6980 11250 18580 26120

28520

Remarks:
1. The rated torque applies to alternating torque and offset to the maximum value.
2. Peak torque is suitable for single direction of rotation and maximum pressure ≤ 105

3. Maximum speed is not suitable for too long sleeve.
4. Offset is not suitable to reach the maximum value at the same time.
5. Axial offset is suitable for double diaphragm structure and is static value.
6. Angular spring stiffness is suitable for single diaphragm values.
7. For specific design dimensions, please contact our design department.
