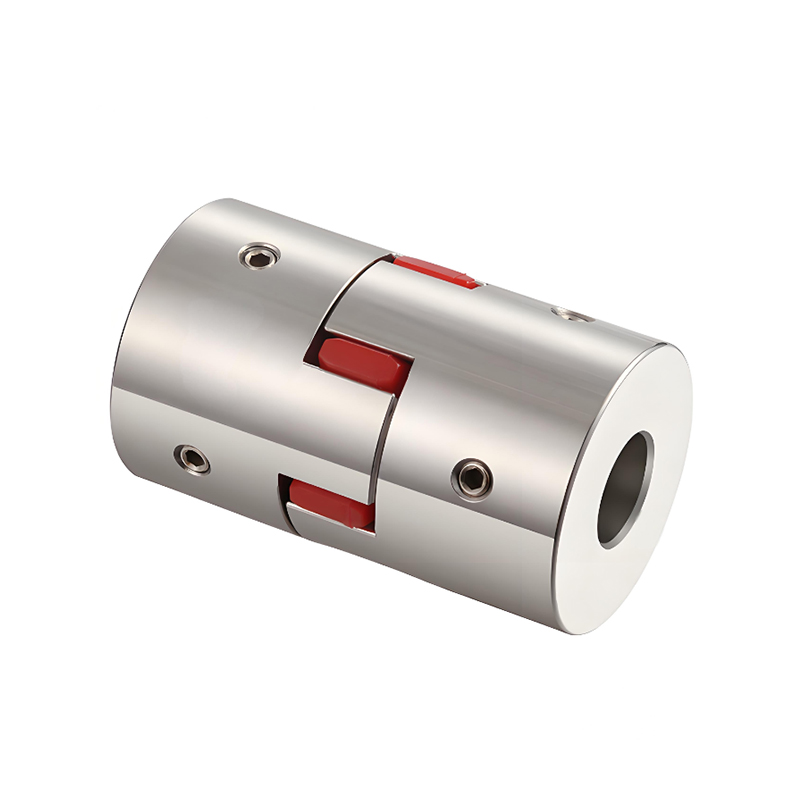

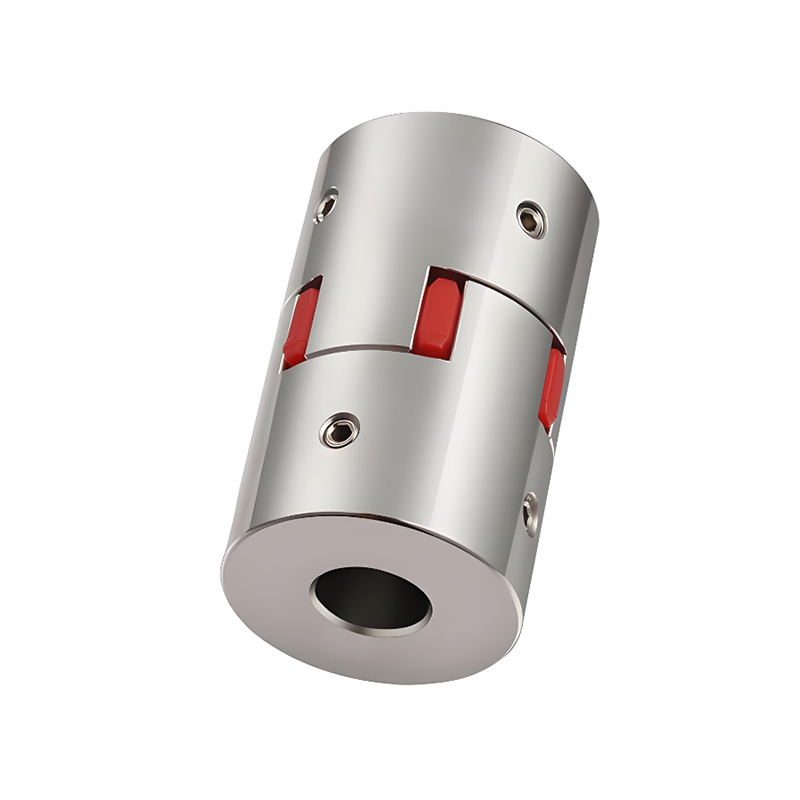

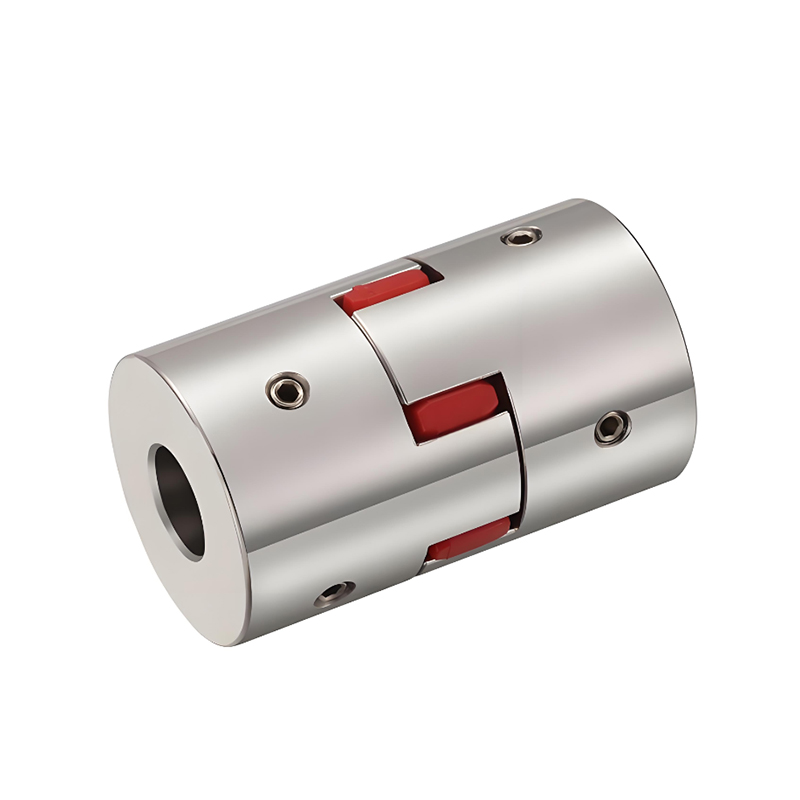

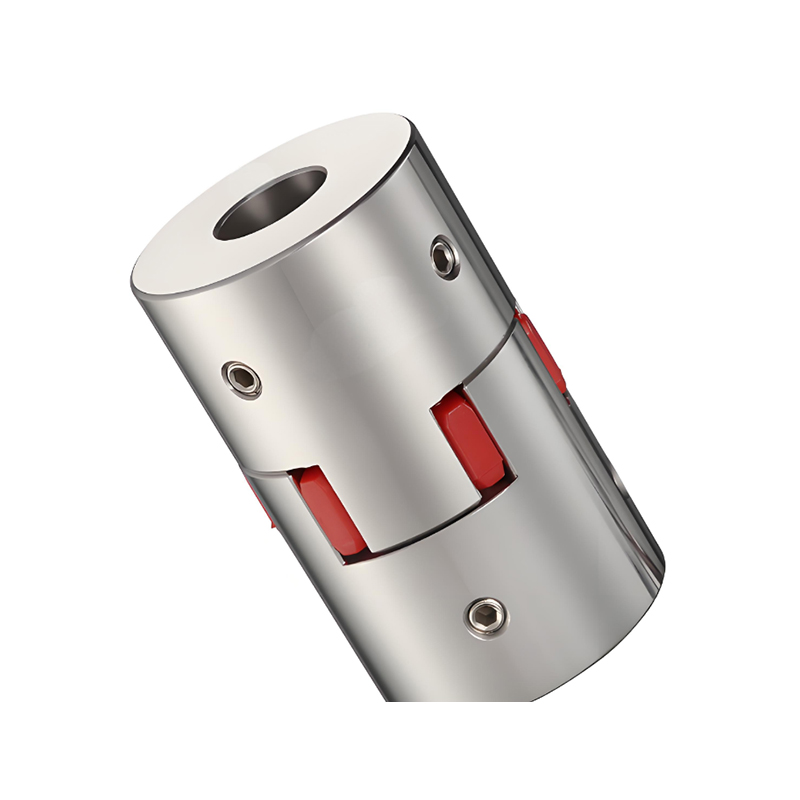

RSK-CPFG Stainless Steel Spider Coupling Setscrew Type for Industrry Automation Equipment

Home / Products / Flexible Couplings / Jaw Spider Couplings / RSK-CPFG Stainless Steel Spider Coupling Setscrew Type for Industrry Automation Equipment

RSK-CPFG Stainless Steel Spider Coupling Setscrew Type for Industrry Automation Equipment

Contact Us
  • Specification
  • Describe
Specification

>Bushing made of 304 stainless steel, with good Corrosion resistance
>Zero backlash, suitable for forward and reverse
>Colloid using TPU, with good abrasion resistance oil resistance and Insulation
>Colloid can absorb vibration, parallel, angular misalignments and shaft end-play
>Detachable design, Easy installation
>Setscrew type

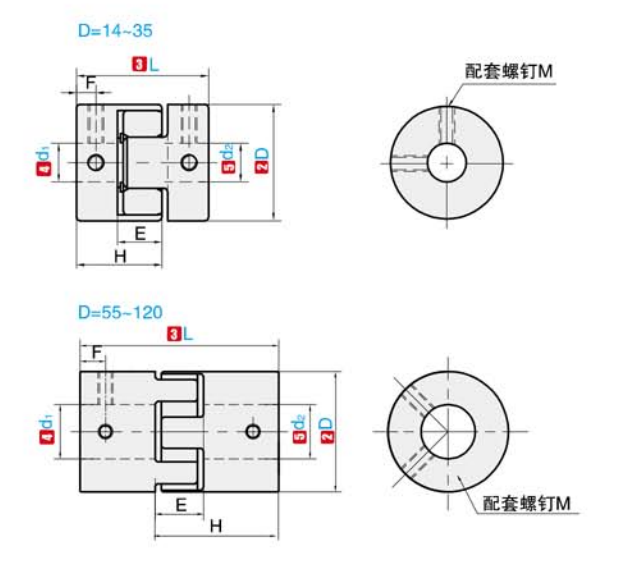

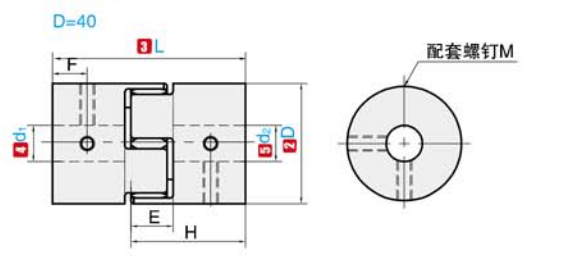

代号

code name

D

L

常用D1/D2 内径尺寸     Standard Inner Diameter(mm)

E

F

H

M

拧紧扭矩

Torque tightening(N.m)

RSK-CPFG







25

34

4-5-6-6.35-7-8-9-10-11-12

11.6

5.6

22.5

M4

1.7

30

35

5-6-6.35-7-8-9-10-11-12-12.7-14-15-16

10.9

5.9

23

M4

2.5

40

66

6-8-9-10-11-12-12.7-14-15-16-17-18-19-20-22-24

13.7

8.0

40

M5

5

55

78

12-12.7-14-15-16-17-18-19-20-22-24-25-28-30-32

16.1

10.3

46.4

M6

8

代号

code name

D

L

额定扭矩    rating torque(N.m)

容许偏心   Allow bias(mm)

容许偏角    Allow tilt(∠°)

容许轴向偏差Allow axial deviation(mm)

容许转速Allow RPM

静态扭转钢度Static torsional stiffness(N.m/rad)

惯性矩         Moment of inertia(N.m)

重量Weight(g)

RSK-CPFG







25

34

9

0.02

1

±0.60

16000

65

5.0x10-6

75

30

35

9.8

0.02

1

±0.60

12000

72

5.5x10-6

114

40

66

48

0.02

1

±0.80

10000

550

3.8x10-5

350

55

78

69

0.02

1

±0.80

8000

1500

1.5x10-3

778
