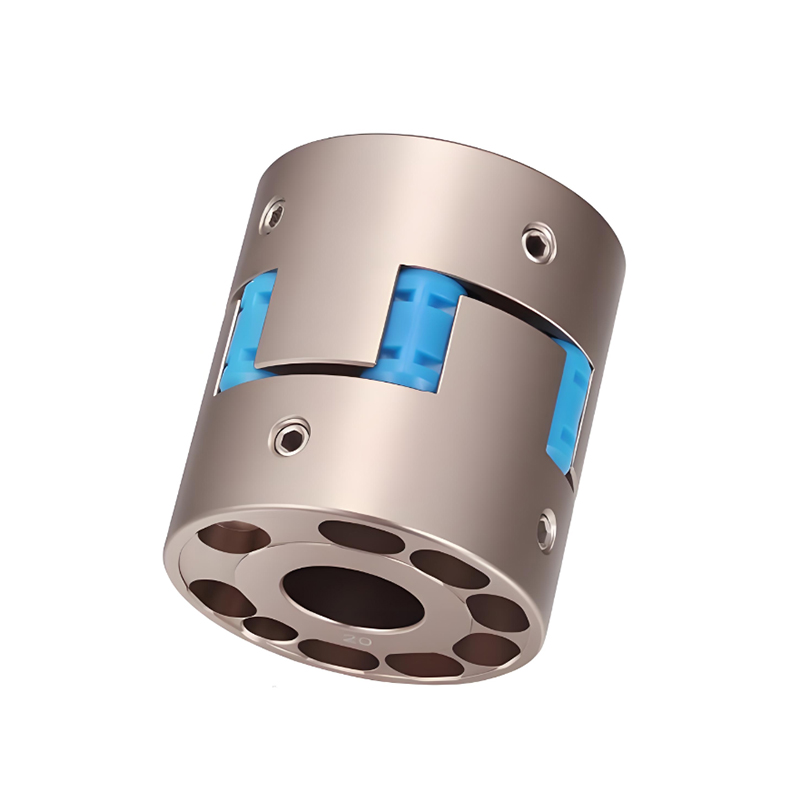

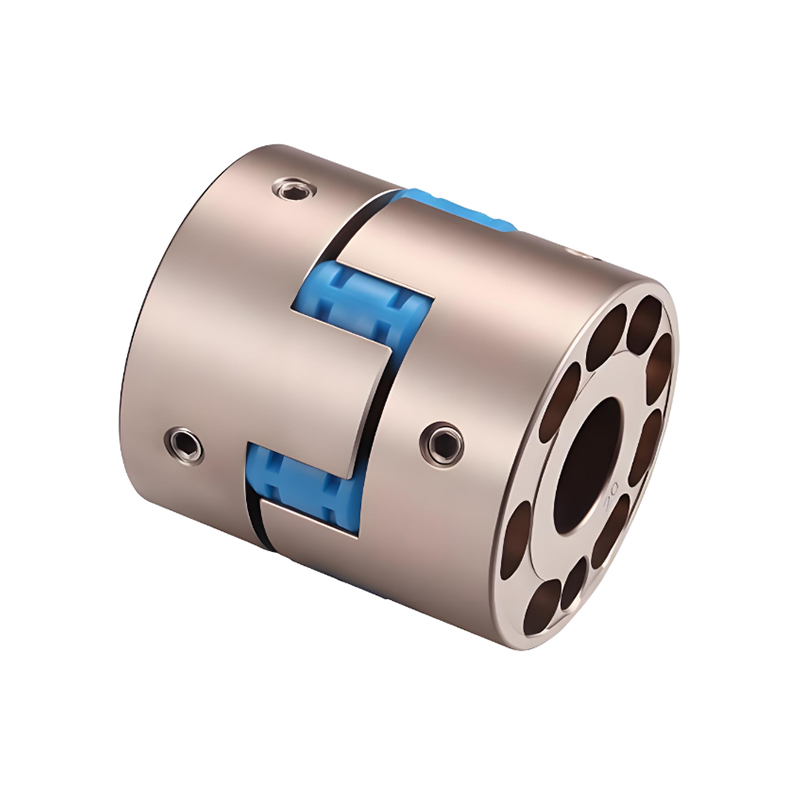

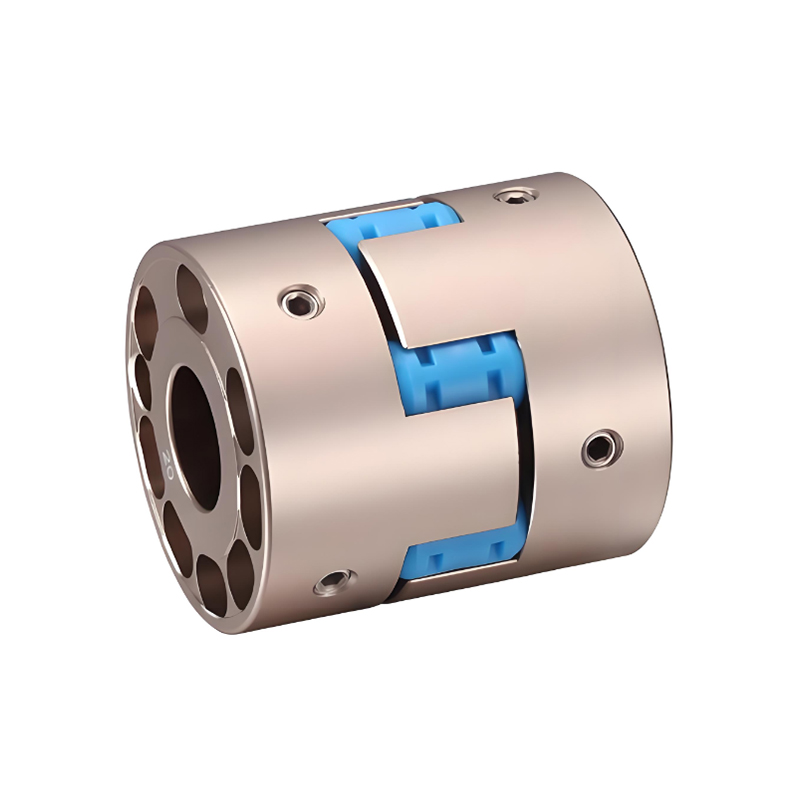

RSK-CPFJ High rigidity Aluminum Alloy Plum shaped Set Screw Shaft coupling

Home / Products / Flexible Couplings / Jaw Spider Couplings / RSK-CPFJ High rigidity Aluminum Alloy Plum shaped Set Screw Shaft coupling
  • Specification
  • Describe
Specification

> The main body is made of high strength aluminum allay

> Zero backlash, suitable for forward and reverse rotation

>Colloid is made of polyurethane, which has good wear resistance

> Oil resistance and electrical insulation, the middle elastic body can absorb vibration

>Compensate radial, angular and axial deviations

> Removable design for easy installation

> Tightening method of positioning screw

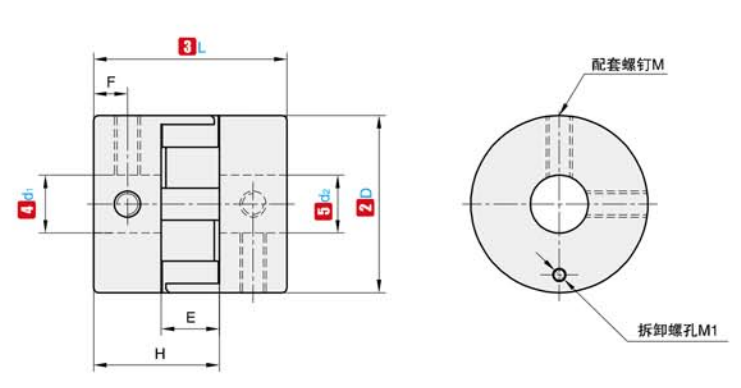

①NO.

②D

③L

④d₁⑤d₂(Optional scope)

E

F

H

M

Fastening screw torque

(N·m)

RSK-CPFJ





55

60

8,10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32

18

16

39

M6

8

70

75

14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40

23

18

49

M8

20

95

100

19,20,22,24,25,28,30,32,35,38,40,42,45,50,55

29

19

64.5

M10

40

①NO.



②D



③L



Rated torque

Permitted eccentricity

Permissible angle deviation

Permissible axial deviation

Permissible rotational speed

Static reversal stiffness

Moment of inertia

Weight

(N·m)

(mm)

(°)

(mm)

(rpm)

(N·m/rad)

(kg·m²)

(g)

RSK-CPFJ





55

60

45

0.1

1

+0.2

8000

7500

1.1×10-4

320

70

75

110

0.1

1

+0.5

8000

7800

3.8×10-4

560

95

100

200

0.1

1

+0.80

5500

17500

1.0×10-3

1220
