RSK-CPHC Aluminum alloy oldham couplings clamping type good wear resistance corrosion resistance and electrical insulation

Home / Products / Flexible Couplings / Oldham Couplings / RSK-CPHC Aluminum alloy oldham couplings clamping type good wear resistance corrosion resistance and electrical insulation

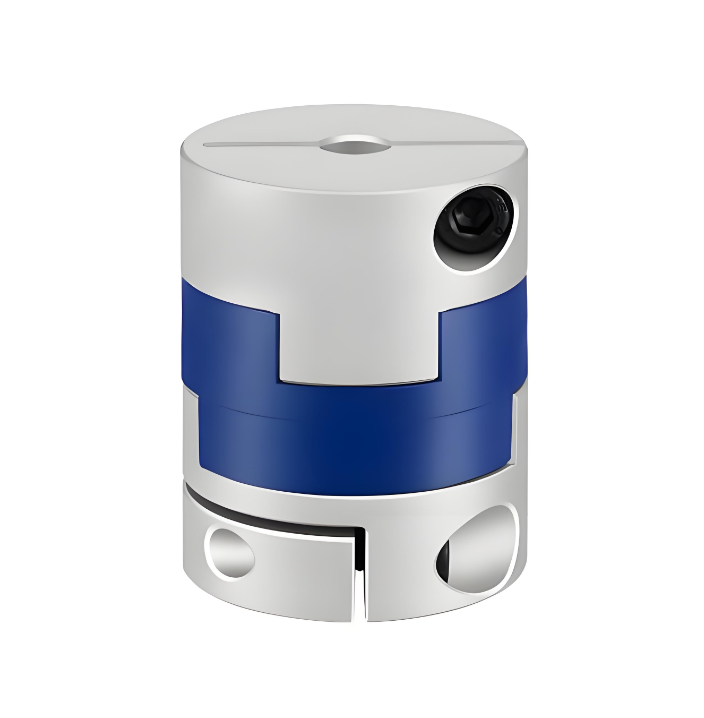

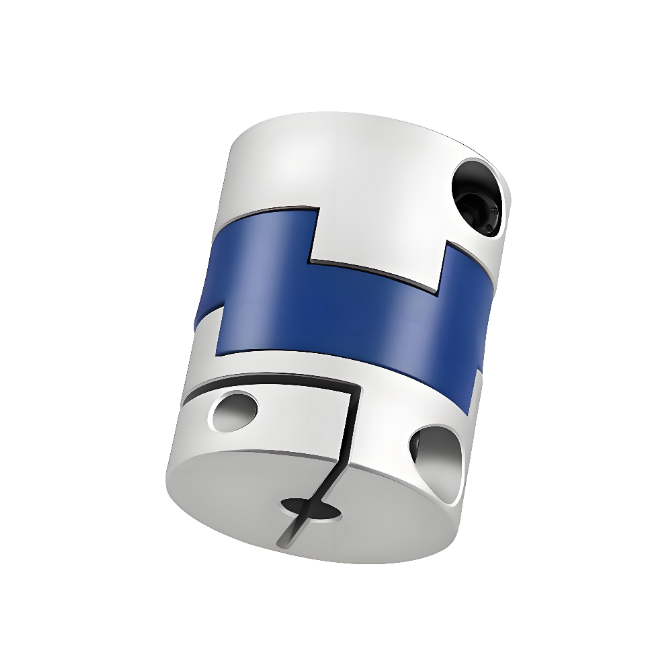

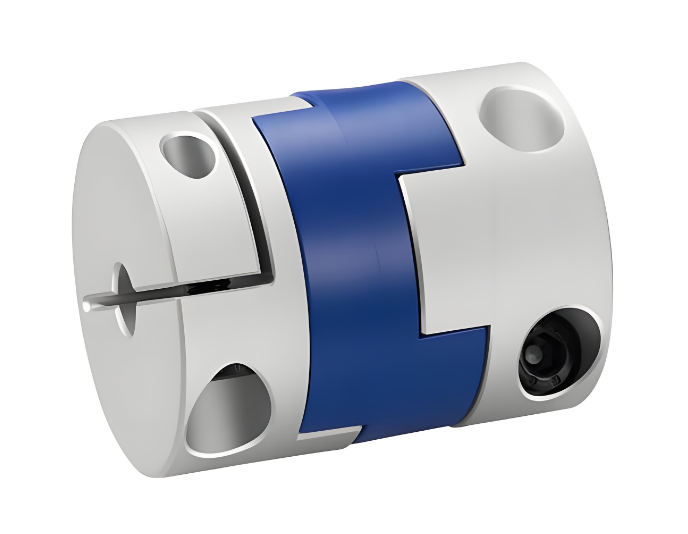

RSK-CPHC Aluminum alloy oldham couplings clamping type good wear resistance corrosion resistance and electrical insulation

Contact Us
  • Specification
  • Describe
Specification




> The shaft sleeve is made of high-strength aluminum alloy

> Colloidal material adopts imported PA66, which has good wear resistance,Corrosion resistance and electrical insulation

>Sliding design compensates radial and angular deviation more effectively

> Removable design for easy installation

> Clamping screw tightening method

代号

code name

D

L

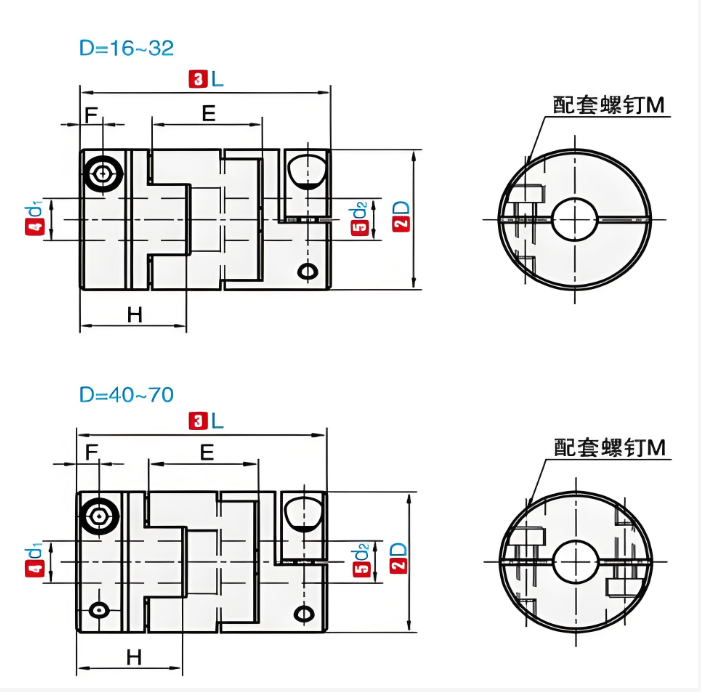

常用D1/D2 内径尺寸     Standard Inner Diameter(mm)

E

F

H

M

拧紧扭矩

Torque tightening(N.m)

RSK-CPHC





















16

29

4 5 6 6.35

12

3

12.5

M2.5

0.8

20

33

   5 6 6.35 7 8

12.7

3.8

14.1

M2.5

0.8

25

39

   5 6 6.35   8 9 9.525 10 11 12

17.7

3.9

16.9

M3

1.2

32

45

   5 6          8 9 9.525 10 11 12 12.7 14 15 16

20

4.5

20

M4

2.5

40

50

                  8 9 9.525 10 11 12         14 15 16 17 18 19

20.3

5.5

23

M5

5

44

46

                  8 9 9.525 10 11 12         14 15 16 17 18 19 20 22

18.4

7

20.7

M5

5

50

53

                                  10 11  12.7 14 15 16 17 18 19 20 22 24

22.35

7.5

24.2

M6

8

50

58

                                  10 11  12.7 14 15 16 17 18 19 20 22 24

22.35

6.3

26.5

M6

8

55

57

                                  10 11  12.7 14 15 16 17 18 19 20 22 24 25 28

25.8

6.3

26.2

M6

8

63

71

                                                     14 15 16 17 18 19 20 22 24 25 28 30 32

26.2

7.8

32.8

M8

20

70

77

                                                     14 15 16 17 18 19 20 22 24 25 28 30 32 35 38

25.0

7.7

32

M8

20

代号

code name

D

L

额定扭矩   rating torque(N.m)

容许偏心    Allow bias(mm)

容许偏角Allow tilt(∠°)

容许轴向偏差Allow axial deviation(mm)

容许转速Allow RPM

静态扭转钢度Static torsional stiffness(N.m/rad)

惯性矩          Moment of inertia(N.m)

重量Weight(g)

RSK-CPHC





















16

29

0.7

0.8

3





















±0.20





















9000

30

3.5x10-7

12

20

33

1.2

1.2

7000

58

1.5x10-6

19

25

39

2

1.6

6000

130

3.2x10-6

35

32

45

4.5

2

4800

270

1.5x10-5

67

40

50

9

2.4

3600

520

4.2x10-5

114

44

46

12

2.5

3500

800

4.5x10-5

140

50

53

19

2.6

3000

800

1.0x10-4

190

50

58

19

3

3000

800

1.1x10-4

215

55

57

25

3.2

3000

900

1.3x10-4

260

63

71

33

3

2550

1200

3.5x10-4

455

70

77

56

3.5

2500

1260

4.1x10-4

520
