Stainless steel sliding oldham coupling clamping type good wear resistance corrosion resistance greater rigidity

Stainless steel sliding oldham coupling clamping type good wear resistance corrosion resistance greater rigidity

Contact Us
  • Specification
  • Describe
Specification


The main material is imported SUS304 stainless steel
The intermediate adjustment ring material adopts imported pom
Has good wear resistance, corrosion resistance, greater rigidity
Sliding design compensates radial and angular deviation more effectively
Removable design for easy installation
With keyway design, positioning screw fastening method
Clamping screw tightening method

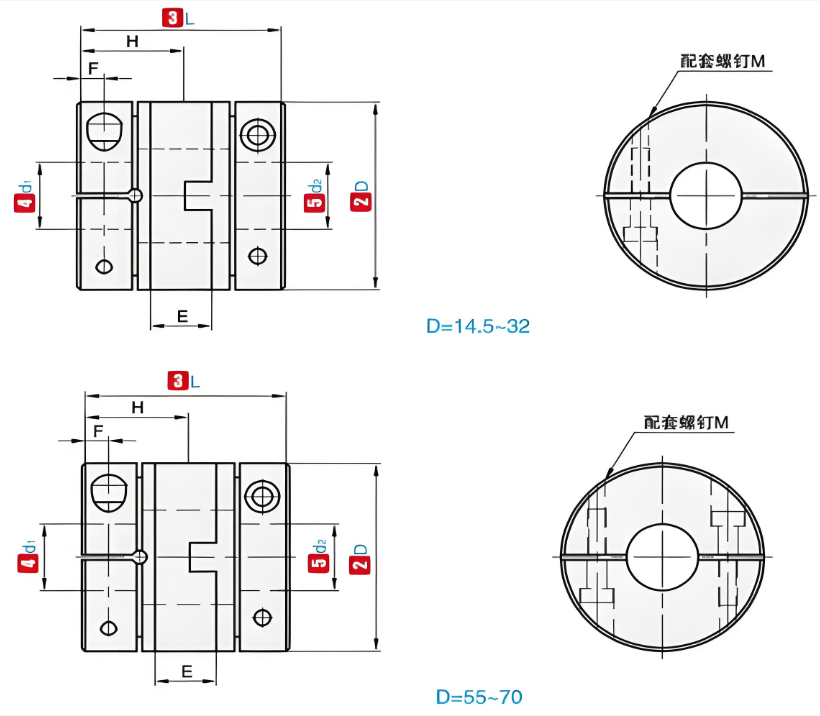

代号

code name

D

L

常用D1/D2 内径尺寸     Standard Inner Diameter(mm)

E

F

H

M

拧紧扭矩

Torque tightening(N.m)

CPHCG

















14.5

18.4

4 5 6 6.35

5.5

2.5

8.9

M2.5

0.8

16.8

24.4

4 5 6 6.35

6.2

3.3

12

M3

1.2

20

27.2

   5 6 6.35 7 8 9 9.525 10

7.3

3.9

13.4

M3

1.2

26

30.4

   5 6 6.35 7 8 9 9.525 10 11 12

7.5

4

15

M4

2.5

30

33

   5 6 6.35   8 9 9.525 10 11 12 12.7 14

8.8

4.3

16

M4

2.5

34

34

   5 6 6.35   8 9 9.525 10 11 12 12.7 14 15 16

8.5

4.3

16.5

M4

2.5

38

39.5

  5 6 6.35   8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20

9.7

5.3

19.5

M5

5

45

46

                  8 9           10 11 12 12.7 14 15 16 17 18 19 20

13.6

5.8

22.5

M5

5

55

57

                      10 11 12 12.7 14 15 16 17 18 19 20 20 24 25

15.4

7.0

28

M6

8

代号

code name

D

L

额定扭矩   rating torque(N.m)

容许偏心    Allow bias(mm)

容许偏角Allow tilt(∠°)

容许轴向偏差Allow axial deviation(mm)

容许转速Allow RPM

静态扭转钢度Static torsional stiffness(N.m/rad)

惯性矩          Moment of inertia(N.m)

重量Weight(g)

CPHCG

















14.5

18.4

3

0.5





0.6













±0.20

















8000

750

1.5x10-6

17

16.8

24.4

5

6500

1000

6.6x10-6

30

20

27.2

7

5500

2000

1.4x10-5

48

26

30.4

10

0.8

4500

3800

6.6x10-5

90

30

33

24

1







4500

5000

1.85x10-4

120

34

34

32

3500

7000

2.0x10-4

172

38

39.5

50

3500

10000

4.5x10-4

250

45

46

50

0.5



7000

35000

4.5x10-4

450

55

57

75

1.5

7000

52000

5.7x10-4

800
