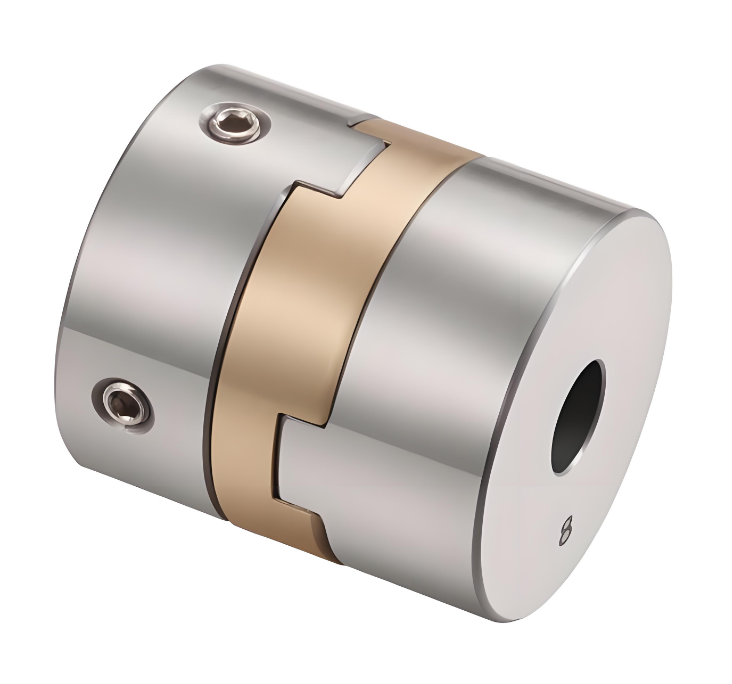

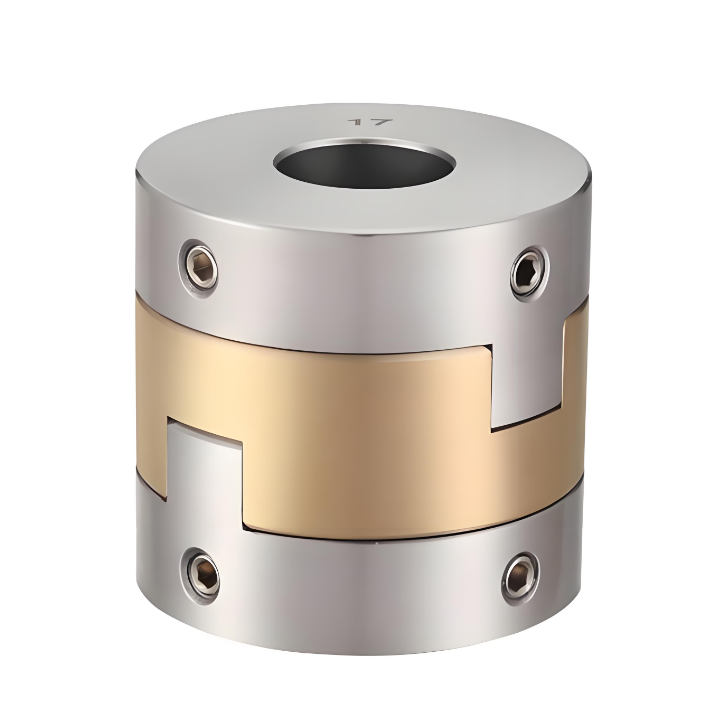

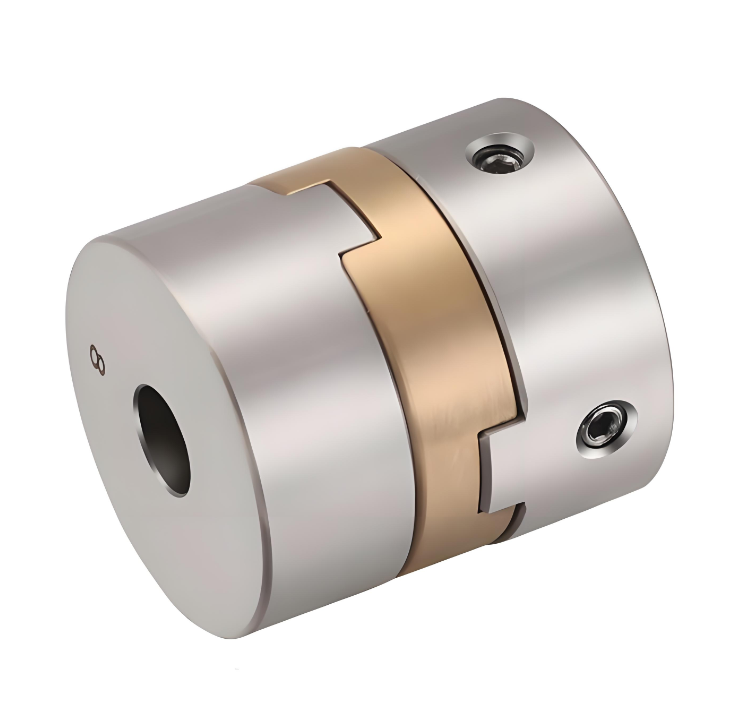

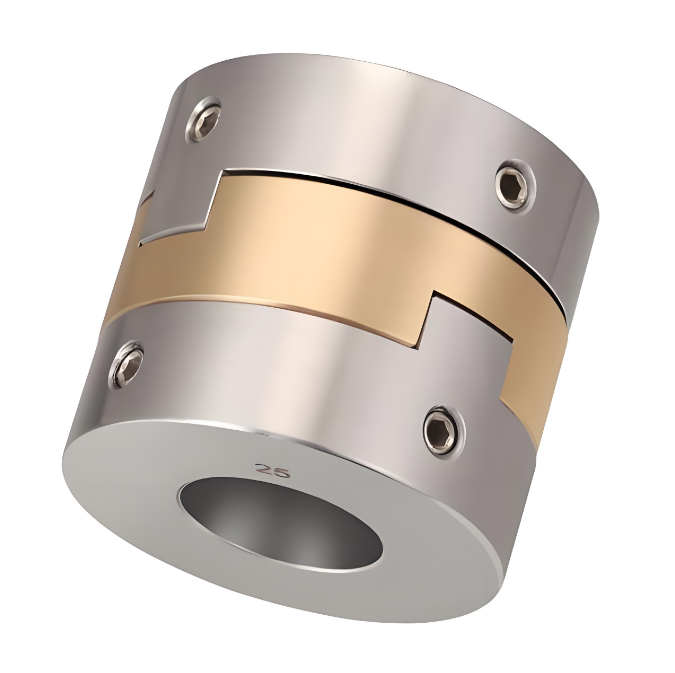

RSK-CPHG Stainless Steel Block Coupling with key way design positioning screw fastening method

RSK-CPHG Stainless Steel Block Coupling with key way design positioning screw fastening method

Contact Us
  • Specification
  • Describe
Specification

> The main material is imported SUS304 stainless steel

> The intermediate adjustment ring material uses imported aluminum bronze,

> Has good wear resistance, corrosion resistance, greater rigidity

>Sliding design compensates radial and angular deviation more effectively

>Removable design for easy installation

>With key way design, positioning screw fastening method

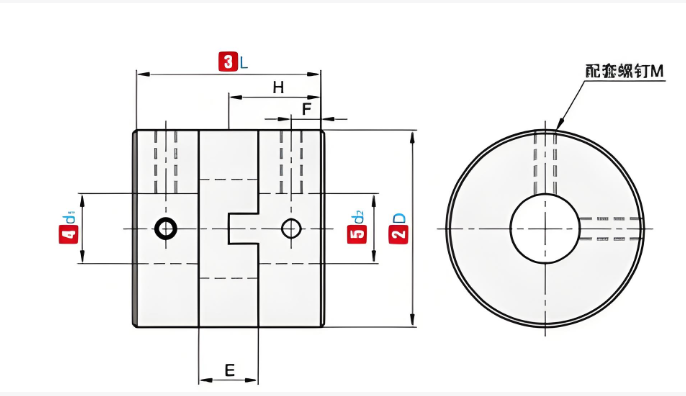

代号

code name

D

L

常用D1/D2 内径尺寸     Standard Inner Diameter(mm)

E

F

H

M

拧紧扭矩

Torque tightening(N.m)

RSK-CPHG



















14.5

16

4  5  6  6.35

5.4

3

7.7

M3

1.2

16.8

19.8

5  6  6.35  7  8

6..3

3.2

9.7

M4

2.5

20

21.4

    5  6  6.35  7  8

7.3

3.2

10.5

M4

2.5

26

25.6

    5  6  6.35    8  9  9.525  10  11  12

7.5

3.8

12

M4

2.5

30

33

    5  6  6.35    8  9  9.525  10  11  12

8.8

5.8

16

M4

2.5

34

34

    5  6  6.35    8  9  9.525  10  11  12  12.7  14  15  16

8.5

5.8

16.5

M5

5

38

39.5

    5  6  6.35    8  9  9.525  10  11  12  12.7  14  15  16

9.7

7.0

19.3

M5

5

45

43.6

    5  6  6.35    8  9             10  11  12  12.7  14  15  16  17  18  19  20  22

13.6

7.5

21.3

M5

5

55

49.4

    5  6  6.35    8  9              10  11  12  12.7  14  15  16  17  18  19  20  22  24  25

15.4

8.5

24.2

M6

8

70

57

    5  6  6.35    8  9               10  11  12  12.7  14  15  16  17  18  19  20  22  24  25  28  30  32  35

17

11

28

M8

20

代号

code name

D

L

额定扭矩   rating torque(N.m)

容许偏心    Allow bias(mm)

容许偏角Allow tilt(∠°)

容许轴向偏差Allow axial deviation(mm)

容许转速Allow RPM

静态扭转钢度Static torsional stiffness(N.m/rad)

惯性矩          Moment of inertia(N.m)

重量Weight(g)

RSK-CPHG



















14.5

16

3

0.5





0.6













±0.1





7000

800

4.5x10-7

15

16.8

19.8

5

6500

900

1.0x10-6

25

20

21.4

7

5000

2000

2.25x10-6

37

26

25.6

10

0.8

±0.2





5000

3500

7.5x10-6

79

30

33

24

1







5000

5000

2.5x10-5

122

34

34

32

3500

7500

4.0x10-5

180

38

39.5

50

±0.3



3500

10000

5.2x10-5

260

45

43.6

50

0.2





9000

6500

1.7x10-4

400

55

49.4

75

1.2

±0.5

9000

90000

3.3x10-4

750

70

57

95

1.6

±0.6

9000

170000

1.1x10-3

1050
