Omega-shaped Tyre Coupling Exceptional Flexibility and Large Compensation Capacity

Omega-shaped Tyre Coupling Exceptional Flexibility and Large Compensation Capacity

Contact Us
  • Specification
  • Describe
Specification

Exceptional Flexibility and Compensation Capacity

Excellent Torsional Elasticity: Effectively absorbs and isolates strong torsional vibrations and shock loads, protecting both the driving end (e.g., motor) and driven equipment

Large Misalignment Compensation: Allows for very large angular, radial, and axial misalignment compensation, placing minimal demands on installation alignment. Can adapt to deformation caused by foundation settlement, thermal expansion, etc

No Lubrication Required, Simple Maintenance

Contains no friction parts with relative sliding, requires no lubrication, and is classified as a maintenance-free coupling

Electrical Insulation and Damping

The rubber body provides electrical insulation, preventing shaft current corrosion. Simultaneously, the internal friction of the rubber offers superior damping and vibration absorption characteristics

Simple Structure, Easy Installation

Few components, simple assembly, usually requiring no special tools

Coupling

Size



Maximum

Bore

(in)



Minimum

Bore

(in)

Continuous

HP/100

RPM

Continuous

Torque

(Ib-in)

Maximum

RPM

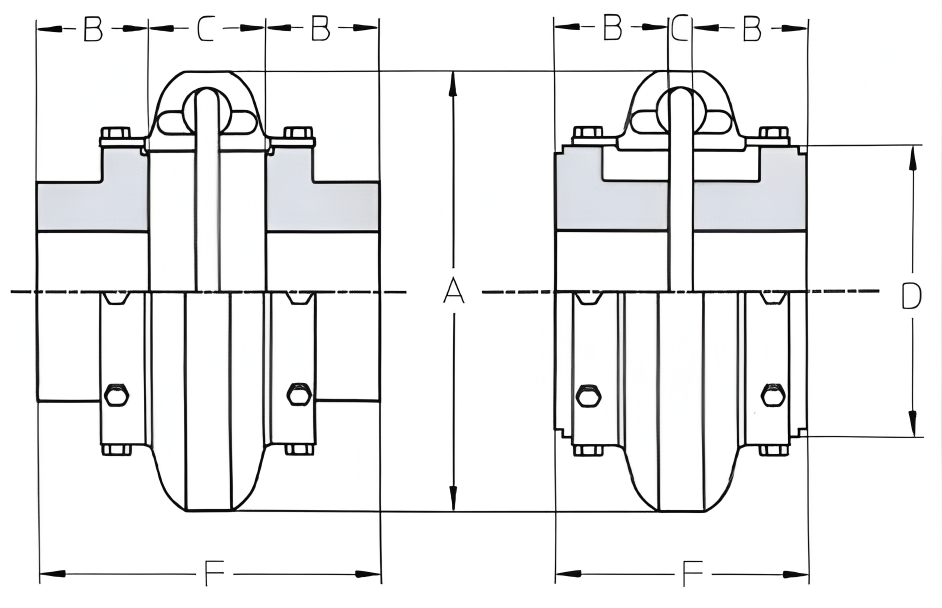

Dimensions (in)

Weight

(Ib)















A

B

C

D

F



















(In)

(0ut)



(In)

(0ut)



E2

1.13

No Min

0.30

190

6600

3.50

0.94

1.34

1.90

1.85

3.22

3.78

1.2

E3

1.38

0.375

0.58

365

6600

4.00

1.50

0.81

1.31

2.32

3.81

4.31

2.4

E4

1.63

0.375

0.88

550

6600

4.56

1.69

0.44

1.31

2.60

3.81

4.69

3.0

E5

1.88

0.375

1.48

925

6600

5.38

1.75

0.81

1.81

3.13

4.31

5.31

5.4

E10

2.13

0.375

2.30

1450

6600

6.38

1.88

0.56

1.84

3.65

4.31

5.56

8.2

E15

2.13

0.375

2.86

1800

6600

6.38

1.88

0.56

1.84

3.65

4.31

5.56

8.3

E20

2.38

0.75

3.65

2300

6600

7.25

2.06

0.50

2.38

4.48

4.62

6.50

13.0

E30

2.88

0.75

5.79

3650

5800

8.25

2.31

0.56

2.44

5.42

5.19

7.06

21

E40

3.38

0.75

8.85

5500

5000

9.50

2.50

0.56

2.68

6.63

5.56

7.68

35

E50

3.63

1.125

12.14

7650

4200

11.00

2.75

0.63

3.38

8.13

6.13

8.88

54

E60

4

1.125

19.84

12,500

3800

12.50

3.25

0.69

3.44

8.75

7.19

9.94

72

E70

4.5

1.375

35.12

22,125

3600

14.00

3.62

0.75

3.75

9.25

8.00

11.00

86

E80

6

1.875

62.7

39,500

2000

16.00

4.87

0.75

5.00

11.25

10.50

14.75

170

E100

6.75

1.875

135

85,050

1900

21.00

5.50

1.75

3.75

14.13

12.75

14.75

244

E120

7.5

1.875

270

170,100

1800

25.00

6.00

2.74625

4.88

17.63

14.24

16.88

425

E140

9.00

1.875

540

340,200

1500

30.00

7.00

3.00

5.00

20.88

17.00

19.00

 746
