Specification

RSK-AL type Concave tyre coupling is a high-strength flexible coupling. Its core component is a concave-shaped elastomeric tyre made of rubber or polyurethane, which is secured by being pressed between inner and outer metal frames. It utilises the radial compression and circumferential shear of the tyre to achieve high torque transmission and multi-directional displacement compensation. It is suitable for power transmission systems in heavy machinery, marine propulsion, and mining equipment that have stringent requirements for high flexibility, high load capacity, and impact resistance.

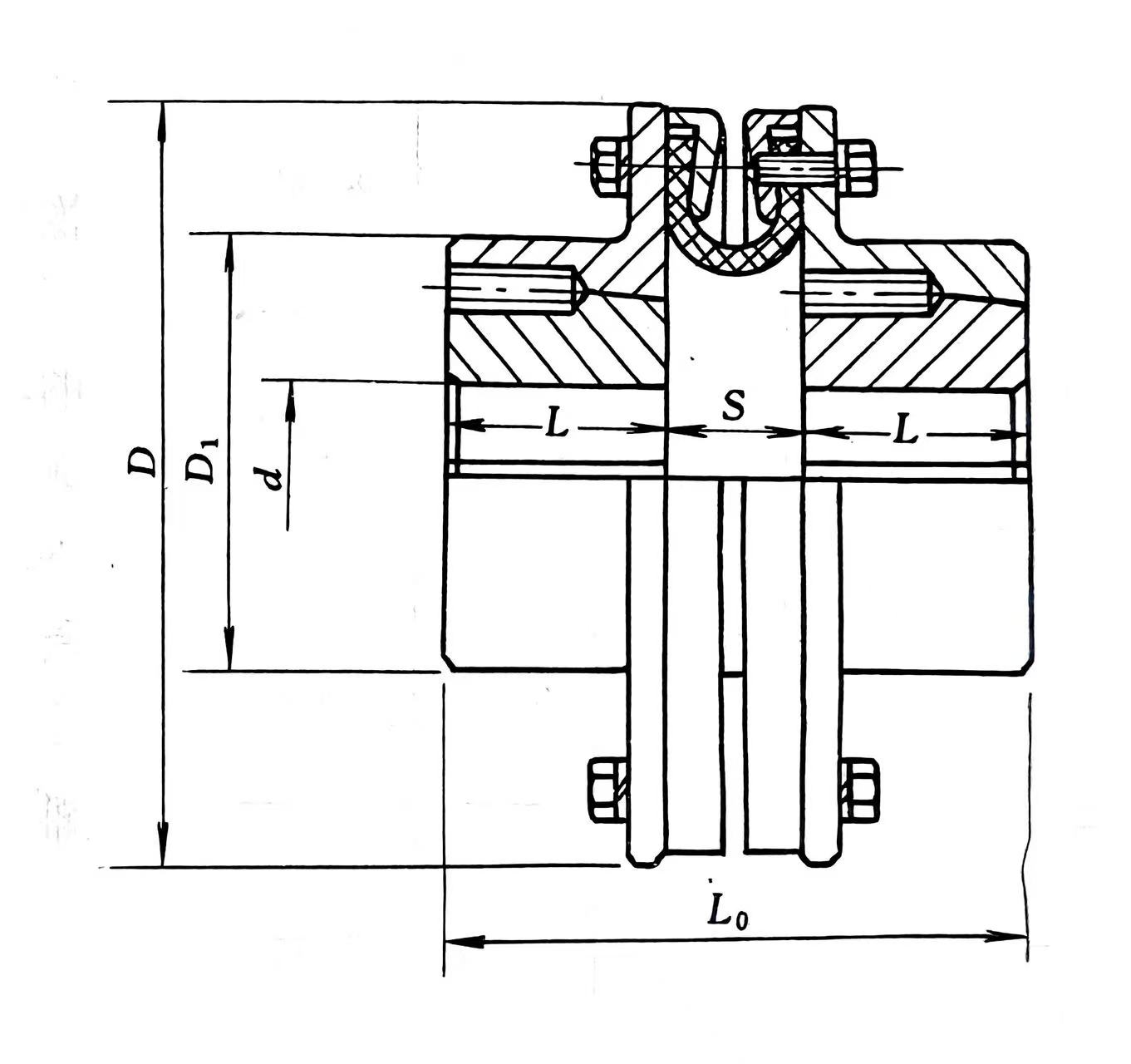

Model	Nominal Torque Tn /N·m	Permissible Rotational Speed [n]	Shaft Hole Diameter d		Shaft Hole Length L	D	D1	L₀	S	Weight m/ kg
Model	Nominal Torque Tn /N·m	Permissible Rotational Speed [n]	min	max	Shaft Hole Length L	D	D1	L₀	S	Weight m/ kg
LA1	63	5000	12	40	27	138	86	80	26	4.08
LA2	80		12	42	31	150	94	88	27	4.99
LA3	125		12	50	33	172	113	95	28	6.8
LA4	200	4500	16	65	46	192	125	127	35	10.9
LA5	315	4000	16	70	48	219	144	137	38	15.9
LA6	450	3600	24	80	54	242	152	149	41	20.9
LA7	630	3000	24	85	62	276	178	168	44	28.1
LA8	1000	2800	24	95	66	310	210	187	54	44.5
LA9	1600	2400	28	130	90	357	251	245	64	76.2
LA10	2500	2200	38	150	104	393	251	285	76	89.8
LA11	3550	2000	38	160	116	430	254	322	90	102
LA12	5600	1850	38	170	116	471	267	337	102	120
LA13	8000	1600	45	190	142	510	272	401	117	151
LA14	12500	1500	48	200	152	576	284	432	127	211
LA15	16000	1400	50	200	162	617	300	471	146	255

Describe

Our waterproof and dustproof tire coupling is designed to cope with harsh working environments and can still operate stably under harsh conditions such as humidity and dust. It uses special processes and materials to effectively prevent water and dust from intruding, ensure that the internal structure is not corroded, and greatly extend the service life.

The coupling relies on the highly elastic tire ring to transmit torque, which can excellently compensate for the axial, radial and angular displacement between the two shafts, and has a strong adaptability to equipment installation errors and shaft displacement during operation. Its excellent buffering and shock absorption performance can significantly reduce the impact and vibration of the equipment during operation, ensure the smooth operation of the equipment, reduce the wear of parts, and thus reduce maintenance costs. At the same time, this feature can also effectively reduce the current peak during the operation of the equipment. Compared with other couplings, the reduction can be up to 50%, which helps to save energy and protect the electrical system.

In terms of structural design, it is simple and compact, does not require lubrication, and avoids pollution and maintenance troubles caused by lubricant leakage. Daily assembly and disassembly and maintenance are easy and convenient. After the main engine axis is aligned once, the main engine does not need to be moved when replacing the elastic element. The operation can be completed quickly, saving a lot of time and manpower.

This coupling is widely used in mining, metallurgy, textile, water pump and other industries, and can work stably in the temperature range of -20℃ to 80℃. Whether in the strong impact environment of mining equipment, the dusty environment of textile workshops, or the long-term humid working scene of water pumps, it can show reliable performance and provide solid guarantee for the efficient operation of equipment.
